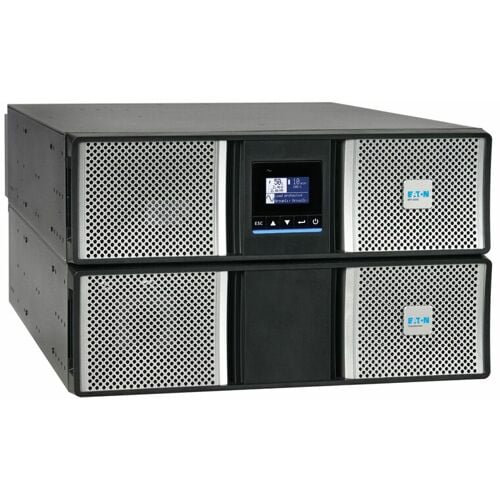

Eaton 9PX6KTF5G2 – 6000VA Online UPS for AV Racks

Product Overview

The Eaton 9PX6KTF5G2 is a 6000VA/5400W, 208/120V online double-conversion UPS built for conference room AV racks, data closets, and edge networking cabinets that need dependable battery backup. As a 6000VA rack-mount online UPS, it protects video conferencing codecs, DSPs, network switches, and AV control processors from blackouts, brownouts, and line noise. Integrators use this platform as a double-conversion UPS for AV rack installations and as a 6kVA UPS for conference room deployments where reliable, regulated power is essential for uninterrupted meetings and presentations.

Product Description

The 9PX6KTF5G2 is part of Eaton's 9PX G2 series, which uses true online double-conversion topology so connected loads run continuously from regenerated power rather than switching to battery, avoiding any transfer delay during a utility event. This is a meaningful advantage for a rack-mount UPS for data closet or conference room AV rack, where even a brief power gap can reboot a codec mid-call or drop signal on a matrix switcher. The unit is a 6U rack/tower chassis with a mix of (1) L6-30R, (2) L6-20R, and (18) 5-20R hardwired outlets, giving integrators the flexibility to run both high-draw devices and a large number of standard AV and networking components from one UPS. Eaton positions this model for IT managers, electrical contractors, integrators, and specifying engineers across business, education, government, healthcare, and edge computing applications — all common verticals for commercial AV installers. With hot-swappable, maintenance-free sealed lead-acid batteries and support for up to 12 external battery modules, this 208/120V online UPS system can be sized for anything from a single conference room rack to a larger training room or multi-purpose space, and optional network cards allow remote monitoring alongside the rest of the facility's networked AV equipment.

Key Features

• Online Double-Conversion Protection — Delivers continuous, regenerated power with zero transfer time to protect sensitive AV and IT equipment.
• 6000VA/5400W Capacity — Sized to support a fully loaded conference room or training room AV rack.
• Mixed Outlet Configuration — (1) L6-30R, (2) L6-20R, and (18) 5-20R hardwired outlets accommodate a wide range of commercial equipment.
• Hot-Swappable, Maintenance-Free Batteries — Sealed lead-acid batteries can be replaced without powering down the rack.
• 96.5% Online Efficiency, Up to 99% in High-Efficiency Mode — Reduces heat load and operating cost in the equipment rack.
• 6U Rack/Tower Form Factor — Fits standard 19-inch AV rack enclosures used in conference rooms and data closets.
• Expandable Runtime — Supports up to 12 external battery modules for facilities requiring extended ride-through.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard commercial warranty.

Typical Applications

• Boardroom
• Conference room
• Training room
• House of worship
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is the 9PX6KTF5G2 compatible with existing 19-inch AV racks?

Yes, it is a 6U rack/tower unit designed to fit standard 19-inch rack enclosures common in AV racks and data closets.

Does this UPS require electrical contractor installation?

Input and output connections vary by outlet type on this model; high-current L6-series outlets and hardwired connections should be installed or verified by a licensed electrician per local code.

Can this UPS support a video conferencing system and network switches simultaneously?

Yes, the mixed L6-30R, L6-20R, and 5-20R outlet configuration is designed to power a range of commercial AV and networking equipment from one unit.

How is remote monitoring handled for facilities teams?

Optional network management cards support SNMP-based remote monitoring and alerting, integrating with the same network as other AV control and monitoring systems.

What is the manufacturer warranty on this UPS?

Eaton provides a standard 3-year warranty on the 9PX6KTF5G2; contact Creation Networks about extended coverage.

Can I add a PowerPass distribution module to this UPS?

Yes, the 9PX6KTF5G2 is compatible with Eaton's 9PX G2 PowerPass distribution module, available at creationnetworks.net, which converts 208V input to 120V output for downstream equipment.

How long will this UPS run my AV rack during an outage?

Runtime depends heavily on connected load; contact Creation Networks for a load-specific runtime calculation and to discuss extended battery module options.
