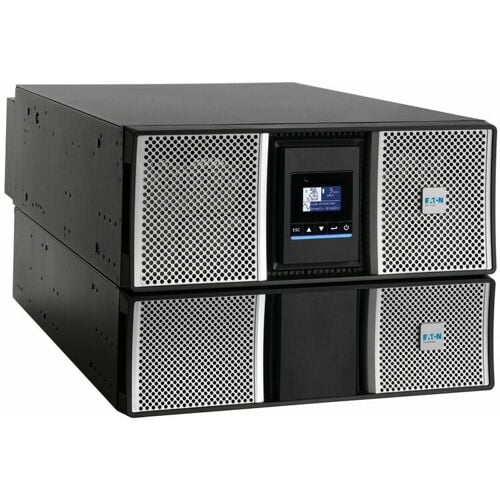

Eaton 9PX11KTF5G2 – 11000VA Rack-Mount Online UPS

Product Overview

The Eaton 9PX11KTF5G2 is an 11000VA/11000W, 208/120V online double-conversion UPS designed for large commercial AV racks, broadcast production rooms, and consolidated data closets. As an 11000VA rack-mount online UPS, it is engineered to power an entire equipment rack or several racks worth of switching, networking, and video processing gear without interruption. It is well suited as a double-conversion UPS for AV rack deployments where multiple 5-20R and L6-30R devices need clean, regulated power, and it functions as a large-capacity UPS for broadcast studio or auditorium environments that draw significant continuous load.

Product Description

Part of Eaton's 9PX G2 lineup, the 9PX11KTF5G2 provides true online double-conversion protection, meaning connected loads are always running from regenerated, isolated power rather than switched utility power, eliminating transfer-time gaps entirely. This matters for a rack-mount UPS for data closet or broadcast environments where even a momentary interruption can drop a live feed, reboot a video processor, or corrupt an in-progress recording. The unit is a 7U rack/tower chassis with hardwired input and a mix of (3) L6-30R and (18) 5-20R hardwired output receptacles, giving integrators flexibility to power both high-draw equipment and a large number of standard IT/AV devices from one UPS. Internal sealed lead-acid batteries are hot-swappable, and the system is expandable with up to 12 external battery modules for facilities that need substantially longer ride-through than the roughly 74 minutes available from internal batteries at light load. This scale of 208/120V online UPS system is typically specified for larger training rooms, government facilities, houses of worship with sanctuary AV/broadcast systems, and multi-room commercial buildings where a single centralized UPS feeds distribution to several downstream racks rather than one small room.

Key Features

• True Online Double-Conversion — Continuously regenerates AC output so there is no transfer delay when utility power is lost, protecting sensitive AV and broadcast equipment.
• 11000VA/11000W Capacity — Supports large, densely populated equipment racks or multiple consolidated racks from a single UPS system.
• Mixed Outlet Configuration — (3) L6-30R and (18) 5-20R hardwired outlets provide flexibility for both high-current and standard-current commercial devices.
• Hot-Swappable Batteries — Internal batteries can be serviced without powering down connected equipment.
• Expandable to 12 External Battery Modules — Allows integrators to scale runtime to match facility-specific backup requirements.
• High Efficiency Mode — Up to 99% efficiency reduces heat generation and operating costs in the equipment rack.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard commercial coverage.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Government space
• Training room

Technical Specifications

Frequently Asked Questions

Is this UPS sized for a single small conference room?

No, 11000VA is typically sized for large consolidated racks, master AV/broadcast rooms, or multiple downstream racks rather than a single small conference room; Creation Networks can help confirm proper sizing.

Can it power both high-draw and standard equipment simultaneously?

Yes, the mixed outlet set of L6-30R and 5-20R receptacles allows high-current devices and standard IT/AV equipment to be powered from the same UPS.

Does installation require an electrician?

Yes, both input and output are hardwired, so installation must be performed by a licensed electrician per local code.

How is runtime extended beyond the internal battery?

The 9PX11KTF5G2 supports up to 12 external battery modules, allowing integrators to extend backup time well beyond the roughly 74 minutes provided by internal batteries at light load.

Can this UPS integrate with a building management or monitoring system?

Yes, optional network management cards enable SNMP monitoring and remote alerts, which integrates with facility monitoring for larger commercial deployments.

What warranty coverage applies?

The unit carries Eaton's standard 3-year manufacturer warranty; contact Creation Networks for extended coverage options.

Does Eaton offer a compatible power distribution accessory for downstream AV racks?

Eaton's 9PX G2 PowerPass distribution modules are designed for the 3kVA-6kVA UPS range rather than this 11kVA model; contact Creation Networks for the correct downstream PDU recommendation for this UPS.
