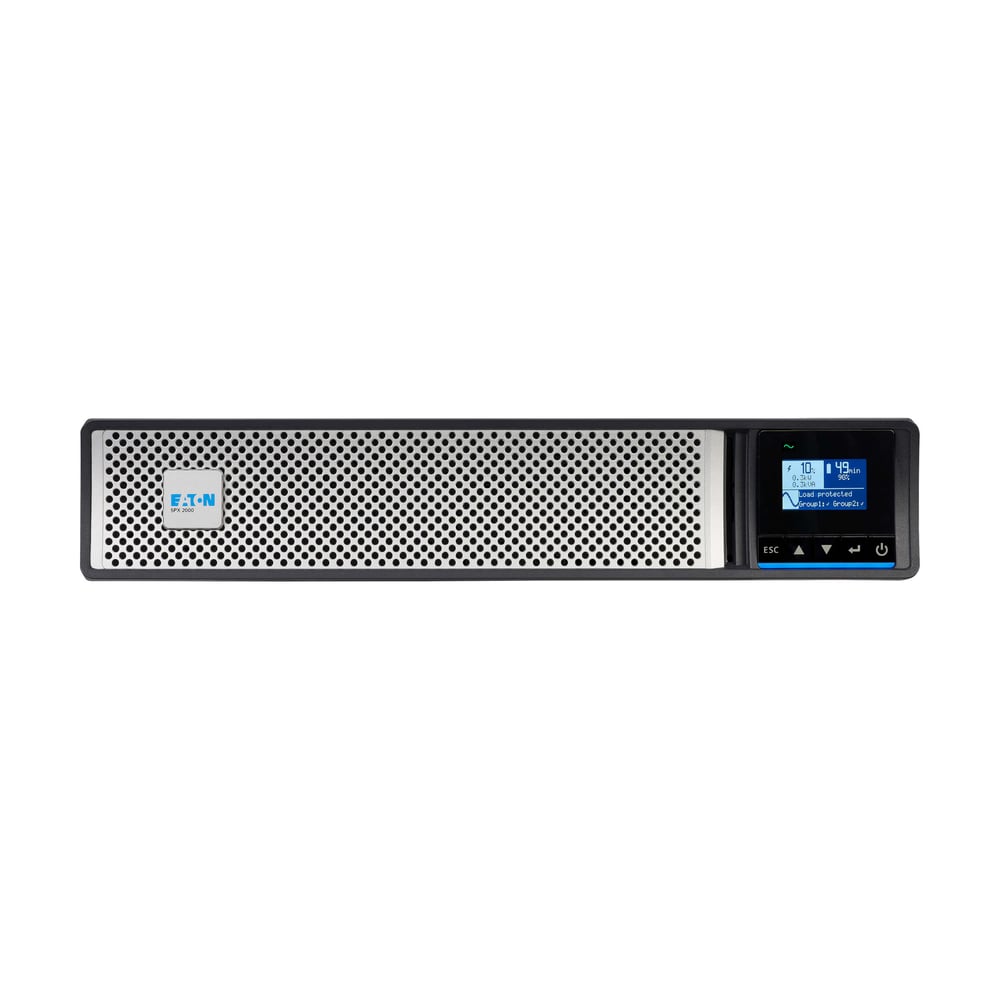

Eaton 5PX2000RTNG2 – 2U Rack UPS with Network Card

Product Overview

The Eaton 5PX2000RTNG2 is a 2U rack UPS with a built-in network management card, providing 1950VA/1950W of line-interactive battery backup for AV and IT equipment. As a 2U rack UPS with network management card functionality, it ships with the Gigabit NETWORK-M2 card pre-installed, giving integrators SNMP and web-based monitoring without purchasing a separate accessory. This network-managed UPS for AV/IT racks is well suited to small business, education, retail, financial, and healthcare networking deployments where servers, VoIP phones, data storage, and PoE switches all share the same rack.

Product Description

The 5PX2000RTNG2 combines line-interactive power protection with integrated networking to simplify remote monitoring across distributed AV and IT locations. Rated at 1950VA/1950W with a unity power factor, it delivers seven output receptacles — (1) L5-20R and (6) 5-20R — to power a mix of network switches, servers, and rack-mount AV control equipment from a single 2U line-interactive UPS for server rack installations. The included Gigabit NETWORK-M2 card is pre-installed and provides SNMP, web, and email-based alerting so IT and facilities teams can monitor UPS health remotely instead of relying on local LCD checks alone. An additional expansion slot allows for further accessory cards as monitoring needs grow. ABM (Advanced Battery Management) technology uses 3-stage charging to extend battery service life by up to 50% compared to simple trickle charging, reducing the frequency of battery replacement in continuously powered installations. The unit's 2U rack height, 23.7 in deep chassis, and 65.3 lb weight fit standard 19-inch rack enclosures used in AV data closets, retail back-of-house networking cabinets, and healthcare facility server rooms. As a rack UPS for VoIP and PoE switch backup, the 5PX2000RTNG2 is a practical centerpiece for any small-to-midsize commercial network rack requiring both battery runtime and remote visibility.

Key Features

• Pre-installed Gigabit NETWORK-M2 card — Provides SNMP, web, and email alerting for remote UPS monitoring without a separate accessory purchase.
• 1950VA/1950W unity power factor — Delivers full-rated wattage for network switches, servers, and AV control equipment.
• Seven output receptacles — (1) L5-20R and (6) 5-20R outlets support a mix of equipment on one UPS.
• ABM battery management — 3-stage charging extends battery service life by up to 50%.
• LCD graphical display — Gives on-site staff quick access to load, runtime, and battery status.
• 2U rack height — Fits standard 19-inch rack enclosures used in AV and IT data closets.
• Additional expansion slot — Supports future accessory cards as monitoring requirements evolve.
• 3-year warranty on electronics and batteries — Extends coverage when the product is registered with the manufacturer.

Typical Applications

• Commercial meeting space network racks supporting VoIP and AV control
• Training room and multi-purpose room network closets
• House of worship networking and streaming equipment racks
• Government space IT/AV equipment rooms

Technical Specifications

Frequently Asked Questions

Does the network card require separate configuration?

The Gigabit NETWORK-M2 card ships pre-installed and provides SNMP, web, and email alerting; initial network configuration (IP address, alert recipients) is done through its web interface or LCD menu.

Can this UPS power both network switches and rack-mount AV equipment?

Yes, the seven output receptacles — (1) L5-20R and (6) 5-20R — accommodate a mix of network switches, servers, and AV control equipment in the same rack.

How does this UPS fit into a 2U rack space?

The unit measures 3.4 in high and is designed to mount into a standard 19-inch rack enclosure occupying 2 rack units.

Is this UPS a good fit for PoE switch backup?

Yes, its 1950W unity power factor rating and multiple 5-20R outlets make it suitable for backing up PoE switches supporting VoIP phones and access points.

What warranty coverage applies?

The 5PX2000RTNG2 carries a 3-year warranty on electronics and 3 years on batteries when registered with the manufacturer.

Can additional monitoring cards be added later?

Yes, the unit includes one additional expansion slot for future accessory cards beyond the pre-installed NETWORK-M2 card.

Is this UPS suitable for healthcare or retail networking racks?

Yes, the manufacturer specifically positions this model for small business, education, retail, financial, and healthcare networking deployments.
