Dynacord IPX20:4 – 4-Channel 4x5000W Install Power Amplifier
Product Overview
The Dynacord IPX20:4 is a 4-channel, 4 x 5000 W DSP install power amplifier built for the highest-output networked audio in large-scale commercial installations. As a rack-mount amplifier with OMNEO IP networking and native Dante connectivity, it gives system designers substantial headroom for distributed audio in auditoriums and high-SPL venues. Variable Load Drive supports low-impedance and 70V/100V/140V direct drive on each channel, making it a high-power 4-channel installation amplifier for mixed loudspeaker systems. It is configured and controlled in IRIS-Net and SONICUE for repeatable commercial deployment.
Product Description
The IPX20:4 delivers four channels of 5000 W into 4 ohms with a fully integrated 96 kHz DSP engine and FIR Drive technology in a single 2U rack-mount chassis, providing exceptional power density for demanding install applications. Each channel supports Normal and Parallel modes for low-Z and high-Z distributed audio, with Parallel mode reaching 10000 W into 2 ohms for high-SPL zones and subwoofers. Direct Drive provides 70 V, 100 V, and 140 V operation without external transformers, simplifying 70V/100V line design in large venues. OMNEO transports Dante audio with OCA/AES70 control over redundant PRIMARY/SECONDARY EtherCON ports for network resilience. Onboard DSP includes user EQ, speaker EQ, FIR filtering, crossovers, delay, and peak and RMS limiters with thermal modeling per channel, plus a 30-preset speaker pool. Pilot tone supervision and source fallback maintain continuity for paging and announcement systems. Integrators configure and monitor the amplifier in IRIS-Net and SONICUE, with impedance measurement and load monitoring for commissioning and diagnostics. The IPX20:4 is part of the broader Dynacord amplifier collection and complements other DSP install amplifiers such as the Dynacord C3600FDi DSP power amplifier.
Key Features
- 4 x 5000 W Multichannel Amplification — Delivers 5000 W per channel into 4 ohms for the highest-output distributed audio in large commercial installations.
- Variable Load Drive (VLD) — Each channel operates in low-impedance or 70V/100V/140V direct drive, supporting mixed low-Z and high-Z loudspeaker systems without external transformers.
- High-Power Parallel Mode — Parallel mode reaches 10000 W into 2 ohms for high-SPL zones and subwoofer applications.
- OMNEO IP Networking with Dante — Transports networked audio over Dante with OCA/AES70 control and redundant PRIMARY/SECONDARY EtherCON ports.
- Integrated 96 kHz DSP and FIR Drive — Native 96 kHz processing provides user EQ, speaker EQ, FIR filtering, crossovers, and delay per channel.
- 30-Preset Speaker Pool — Stored speaker settings speed up configuration of multiple loudspeaker models across zones.
- Per-Channel Limiting and Protection — Peak anticipation and RMS/temperature limiters with thermal modeling protect connected loudspeakers.
- Eco Rail High-Efficiency Topology — Class D output with digitally controlled PFC supply manages operating cost and rack heat load at high output.
Typical Applications
- Auditoriums
- Houses of worship
- Multi-purpose rooms
- All-hands rooms
- Government and commercial meeting spaces
- Broadcast studios
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier Channels | 4 |
| Maximum Output Power (Normal, all channels driven, 4 ohms) | 5000 W |
| Output Power (2 ohms / 8 ohms) | 5200 W / 2500 W |
| Parallel Mode (2 ohms / 4 ohms) | 10000 W / 8000 W |
| Direct Drive (70 V / 100 V / 140 V) | 3550 W / 5000 W / 5000 W |
| Max Output Voltage (Normal, per channel) | 210 Vpeak |
| Max Output Current (Normal, per channel) | 84 Apeak |
| Voltage Gain (Low-Z) | 32.0 dB, adjustable 20.0-44.0 dB |
| THD (3 dB below max, AES17, 1 kHz) | < 0.05 % |
| Frequency Response | 20 Hz to 20 kHz (±1.0 dB) |
| Damping Factor (20-200 Hz, 8 ohms) | > 400 |
| Output Stage Topology | Class D, fixed frequency |
| Signal to Noise Ratio (A-weighted, analog / digital input) | 115 dB / 118 dB |
| DSP Sampling Rate | 48 kHz / 96 kHz, OMNEO/Dante synchronized |
| Network Audio Inputs | 8 channels, OMNEO/Dante |

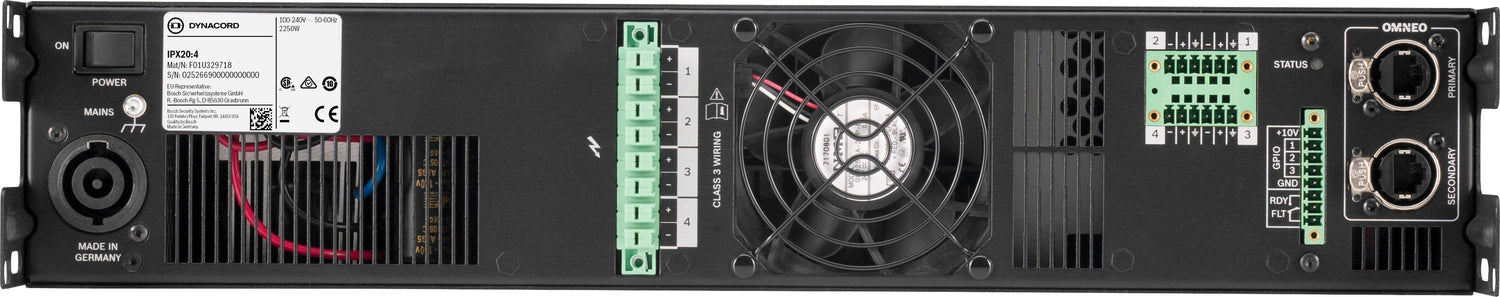

| Network Type | 2 x Neutrik EtherCON/RJ45, redundant PRIMARY/SECONDARY, 1000base-T |
| Analog Audio Input | 2 x 6-pin Euroblock, max +21 dBu, 20 kΩ |
| Speaker Output | 1 x 8-pin Euroblock, 6 mm |
| Mains Input | 1 x Neutrik powerCON-HC |
| Power Requirements | 100 V to 240 V, 50-60 Hz AC |
| Rated Power Consumption | 2250 W |
| Idle Mode | 110 W |
| Standby Mode | < 19 W |
| Cooling | Front-to-rear, temperature controlled fans, supervised |
| Ambient Temperature Limits | +5 °C to +40 °C (+40 °F to +105 °F) |
| Dimensions (W x H x D) | 483 x 88.1 x 514.2 mm |
| Weight | 18.3 kg (40.3 lb) |
| Color | Black |
Specifications sourced from the Dynacord IPX20:4 datasheet. Data subject to change without notice.
Frequently Asked Questions
Does the IPX20:4 support Dante networked audio?
Yes. The IPX20:4 uses OMNEO IP networking, which transports Dante audio with OCA/AES70 control and provides 8 network audio input channels over redundant PRIMARY/SECONDARY EtherCON ports.
Can it drive 70V and 100V distributed loudspeaker lines?
Yes. Variable Load Drive provides Direct Drive operation at 70 V, 100 V, and 140 V without an external step-up transformer, alongside low-impedance 4-ohm, 2-ohm, and 8-ohm operation.
What is the maximum output power?
Each channel delivers 5000 W into 4 ohms in Normal mode, and Parallel mode reaches 10000 W into 2 ohms for high-SPL and subwoofer applications.
What software is used to configure and control the amplifier?
The IPX20:4 is configured and controlled in IRIS-Net and SONICUE, including DSP setup, the 30-preset speaker pool, impedance measurement, and load monitoring.
How much rack space does it require?
The amplifier is a 2U rack-mount chassis measuring 483 x 88.1 x 514.2 mm and weighing 18.3 kg (40.3 lb), with M6 rack-mount screws included.
How does it maintain audio continuity if a source fails?
Pilot tone supervision monitors analog and OMNEO/Dante inputs and automatically switches to an alternative source selection, supporting announcement and paging reliability.
How does the IPX20:4 fit alongside other Dynacord amplifiers?
It complements DSP install amplifiers such as the Dynacord C3600FDi DSP power amplifier. Browse the full Dynacord collection to compare models.
