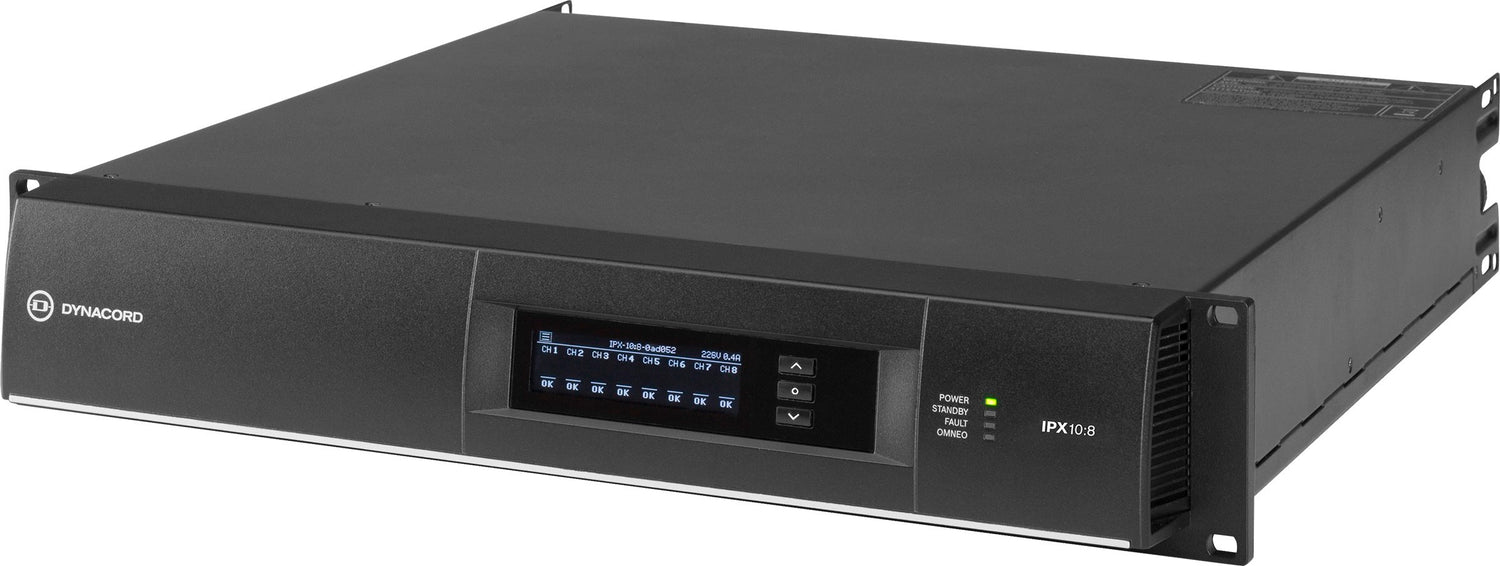

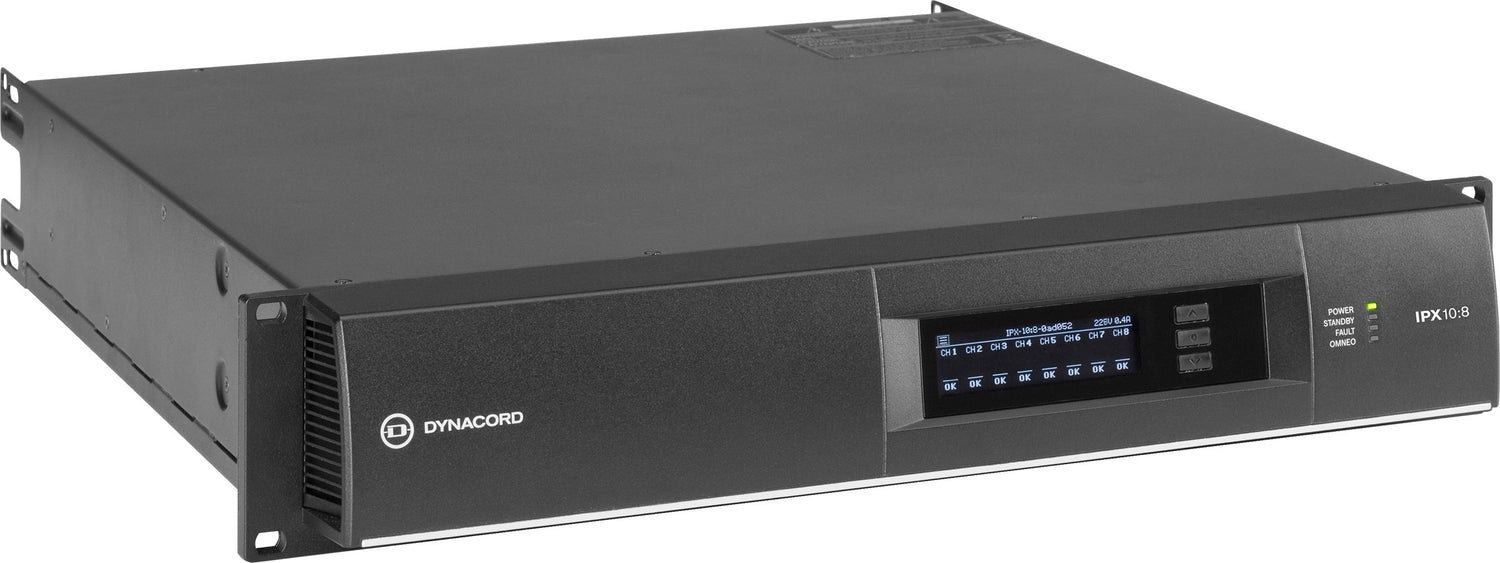

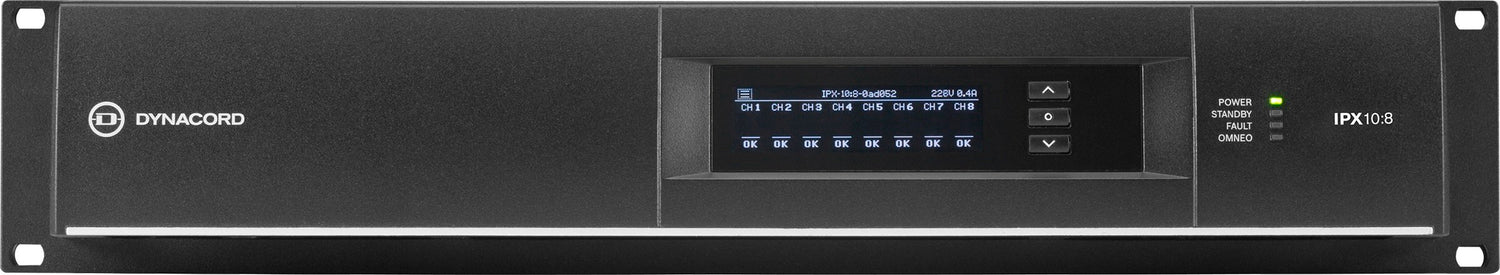

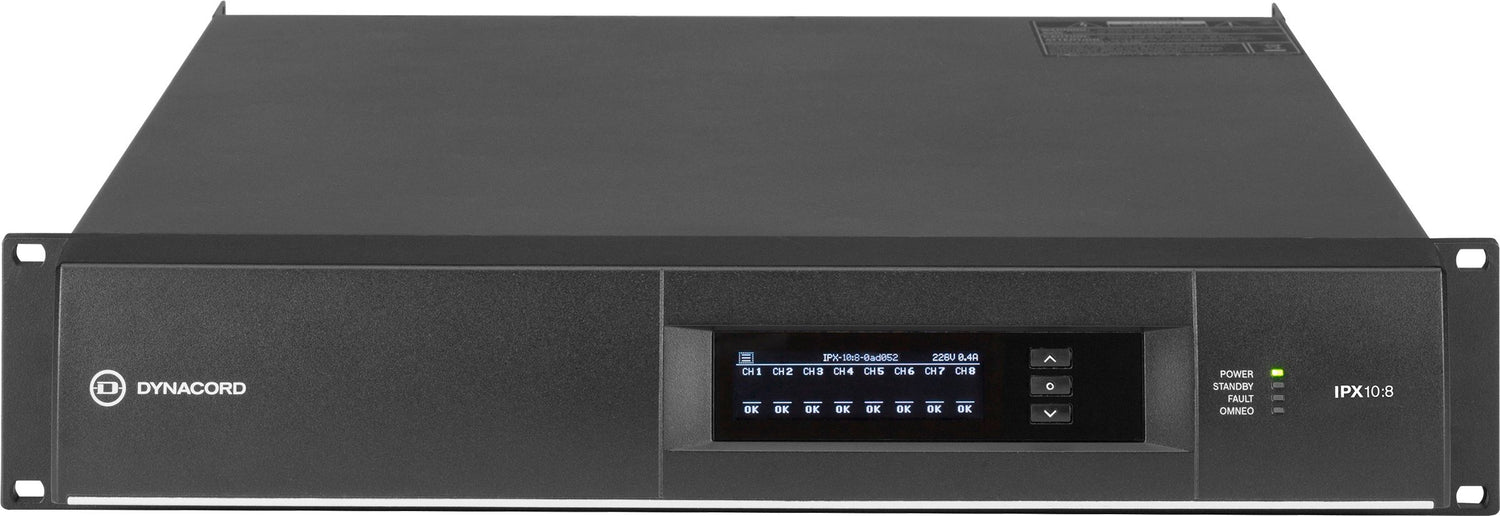

Dynacord IPX10:8 – 8-Channel 8x1250W Install Power Amplifier
Product Overview
The Dynacord IPX10:8 is an 8-channel, 8 x 1250 W DSP install power amplifier built for high-channel-count networked audio in multi-zone commercial installations. As a rack-mount amplifier with OMNEO IP networking and native Dante connectivity, it lets system designers consolidate eight zones of distributed audio in a single 2U chassis. Variable Load Drive supports low-impedance and 70V/100V/140V direct drive on each channel, making it an efficient 8-channel installation amplifier for mixed loudspeaker systems. It is configured and controlled in IRIS-Net and SONICUE for repeatable commercial deployment.
Product Description
The IPX10:8 delivers eight channels of 1250 W into 4 ohms with a fully integrated 96 kHz DSP engine and FIR Drive technology in a single 2U rack-mount chassis, maximizing channel density per rack unit. Each channel supports Normal, Bridge, Parallel, and Parallel-Bridge modes for low-Z and high-Z distributed audio. Direct Drive provides 70 V, 100 V, and 140 V (200 V in bridge) operation without external transformers, simplifying 70V/100V line design across many zones. OMNEO transports Dante audio with OCA/AES70 control over redundant PRIMARY/SECONDARY EtherCON ports for network resilience. Onboard DSP includes user EQ, speaker EQ, FIR filtering, crossovers, delay, and peak and RMS limiters with thermal modeling per channel, plus a 30-preset speaker pool for fast loudspeaker configuration. Pilot tone supervision and source fallback maintain continuity for paging and announcement systems. Integrators configure and monitor the amplifier in IRIS-Net and SONICUE, with impedance measurement and load monitoring for commissioning and diagnostics. The IPX10:8 is part of the broader Dynacord amplifier collection and works alongside other DSP install amplifiers such as the Dynacord C3600FDi DSP power amplifier.
Key Features
- 8 x 1250 W Multichannel Amplification — Delivers 1250 W per channel across eight channels into 4 ohms for high-density multi-zone distributed audio.
- Variable Load Drive (VLD) — Each channel operates in low-impedance or 70V/100V/140V direct drive, supporting mixed low-Z and high-Z loudspeaker systems without external transformers.
- OMNEO IP Networking with Dante — Transports networked audio over Dante with OCA/AES70 control and redundant PRIMARY/SECONDARY EtherCON ports.
- Integrated 96 kHz DSP and FIR Drive — Native 96 kHz processing provides user EQ, speaker EQ, FIR filtering, crossovers, and delay on all eight channels.
- 30-Preset Speaker Pool — Stored speaker settings speed up configuration of multiple loudspeaker models across zones.
- Per-Channel Limiting and Protection — Peak anticipation and RMS/temperature limiters with thermal modeling protect connected loudspeakers.
- Pilot Tone Supervision and Source Fallback — Monitors analog and OMNEO/Dante inputs and switches to an alternative source for announcement continuity.
- Eco Rail High-Efficiency Topology — Class D output with digitally controlled PFC supply reduces operating cost and rack heat load in dense installations.
Typical Applications
- Houses of worship
- Multi-purpose rooms
- Conference rooms and boardrooms
- Government and commercial meeting spaces
- Training rooms
- Auditoriums
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier Channels | 8 |
| Maximum Output Power (Normal, all channels driven, 4 ohms) | 1250 W |
| Output Power (8 ohms) | 1250 W |
| Bridge Mode (4 ohms / 8 ohms) | 2600 W / 2500 W |
| Parallel-Bridge (4 ohms) | 5000 W |
| Direct Drive (70 V / 100 V, all channels driven) | 1250 W / 1250 W |
| Direct Drive (140 V / 200 V bridge) | 2500 W / 2500 W |
| Max Output Voltage (Normal, per channel) | 150 Vpeak |
| Max Output Current (Normal, per channel) | 41 Apeak |
| Voltage Gain (Low-Z) | 32.0 dB, adjustable 20.0-44.0 dB |
| THD (3 dB below max, AES17, 1 kHz) | < 0.05 % |
| Frequency Response | 20 Hz to 20 kHz (±0.5 dB) |
| Damping Factor (20-200 Hz, 8 ohms) | > 400 |
| Output Stage Topology | Class D, fixed frequency |
| Signal to Noise Ratio (A-weighted, digital input) | 115 dB |
| DSP Sampling Rate | 48 kHz / 96 kHz, OMNEO/Dante synchronized |
| Network Audio Inputs | 8 channels, OMNEO/Dante |
| Network Type | 2 x Neutrik EtherCON/RJ45, redundant PRIMARY/SECONDARY, 1000base-T |
| Analog Audio Input | 4 x 6-pin Euroblock, max +21 dBu, 20 kΩ |
| Speaker Output | 2 x 8-pin Euroblock, 6 mm |
| Mains Input | 1 x Neutrik powerCON-HC |
| Power Requirements | 100 V to 240 V, 50-60 Hz AC |
| Rated Power Consumption | 1300 W |
| Idle Mode | 105 W |
| Standby Mode | < 18 W |
| Cooling | Front-to-rear, temperature controlled fans, supervised |
| Ambient Temperature Limits | +5 °C to +40 °C (+40 °F to +105 °F) |
| Dimensions (W x H x D) | 483 x 88.1 x 514.2 mm |
| Weight | 16.8 kg (37.1 lb) |
| Color | Black |
Specifications sourced from the Dynacord IPX10:8 datasheet. Data subject to change without notice.
Frequently Asked Questions
Does the IPX10:8 support Dante networked audio?
Yes. The IPX10:8 uses OMNEO IP networking, which transports Dante audio with OCA/AES70 control and provides 8 network audio input channels over redundant PRIMARY/SECONDARY EtherCON ports.
How many zones can one IPX10:8 drive?
The amplifier provides eight independent 1250 W channels, allowing a single 2U unit to drive up to eight loudspeaker zones with per-channel DSP and Variable Load Drive.
Can it drive 70V and 100V distributed loudspeaker lines?
Yes. Variable Load Drive provides Direct Drive operation at 70 V, 100 V, and 140 V (200 V in bridge mode) without an external step-up transformer, alongside low-impedance 4-ohm and 8-ohm operation.
What software is used to configure and control the amplifier?
The IPX10:8 is configured and controlled in IRIS-Net and SONICUE, including DSP setup, the 30-preset speaker pool, impedance measurement, and load monitoring.
How much rack space does it require?
The amplifier is a 2U rack-mount chassis measuring 483 x 88.1 x 514.2 mm and weighing 16.8 kg (37.1 lb), with M6 rack-mount screws included.
How does it maintain audio continuity if a source fails?
Pilot tone supervision monitors analog and OMNEO/Dante inputs and automatically switches to an alternative source selection, supporting announcement and paging reliability.
How does the IPX10:8 fit alongside other Dynacord amplifiers?
It complements DSP install amplifiers such as the Dynacord C3600FDi DSP power amplifier. Browse the full Dynacord collection to compare models.
