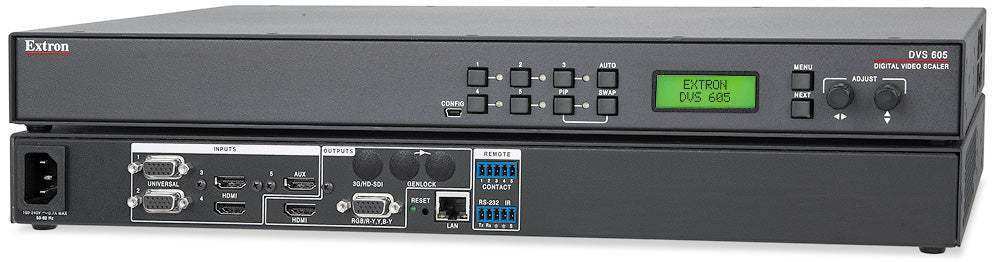

Extron DTP DVS 605 Five Input HDCP-Compliant Scaler with Seamless Switching

Product Overview

The Extron DTP DVS 605 is a five-input HDCP-compliant video scaler with three HDMI and two universal analog video inputs, simultaneous HDMI and analog RGB/component outputs, true seamless switching with cut or dissolve transitions for inputs 1–4, and picture-in-picture. The DTP model adds a DTP twisted pair output for signal extension to a remote display up to 330 feet over shielded CATx. Available at Creation Networks.

Product Description

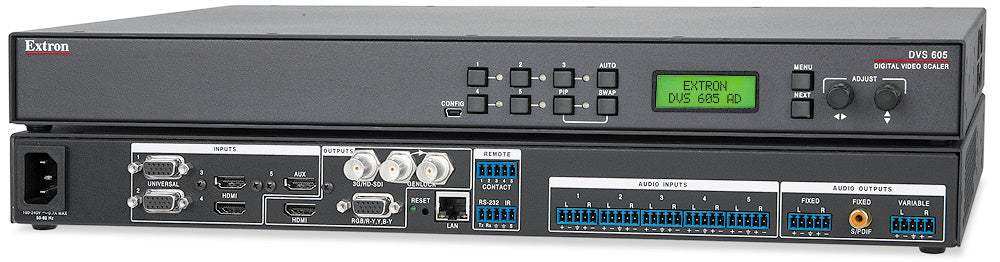

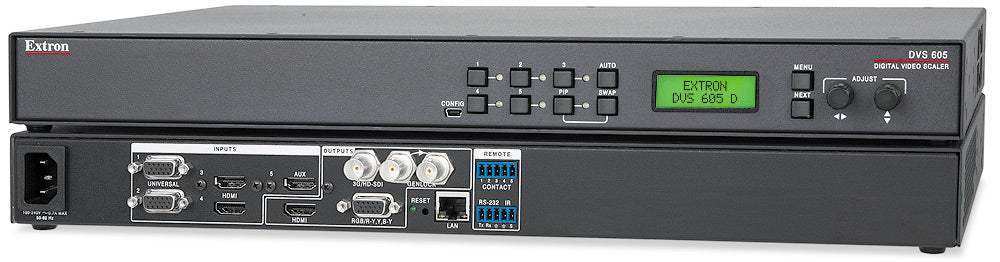

The DVS 605 family integrates digital and analog video sources in presentation and conferencing environments where diverse source formats must be scaled, switched, and routed to displays. The two universal 15-pin HD analog inputs auto-detect RGBHV, component video, S-video, and composite video. Three HDMI inputs support HDCP 1.4/2.3 with EDID Minder and Key Minder for reliable HDCP compliance and fast switching. The advanced scaling engine handles resolutions from 640x480 through 1920x1200 and 1080p/60 with 30-bit precision and motion-adaptive deinterlacing for signals up to 1080i. Seamless cut or dissolve transitions are available for inputs 1–4. The PIP picture-in-picture mode supports any two sources on inputs 1–4 with adjustable size and position. The DTP model extends the HDMI signal as a DTP twisted pair output to a remote display or DTP receiver up to 330 feet. Control via Ethernet, RS-232, USB, and contact closure. Available at Creation Networks.

Key Features

• Five-Input Multi-Format Scaler — 3 HDMI + 2 universal analog (RGBHV, component, S-video, composite); auto-detection of analog signal format.
• Simultaneous HDMI and Analog Outputs — Scaled HDMI and 15-pin HD RGB/component outputs drive two displays simultaneously.
• DTP Twisted Pair Output (DTP Model) — Extends HDMI video up to 330 feet (100 m) over shielded CATx to DTP receivers or HDBaseT displays.
• True Seamless Switching — Cut or dissolve transitions for inputs 1–4; Glitch Free switching for input 5.

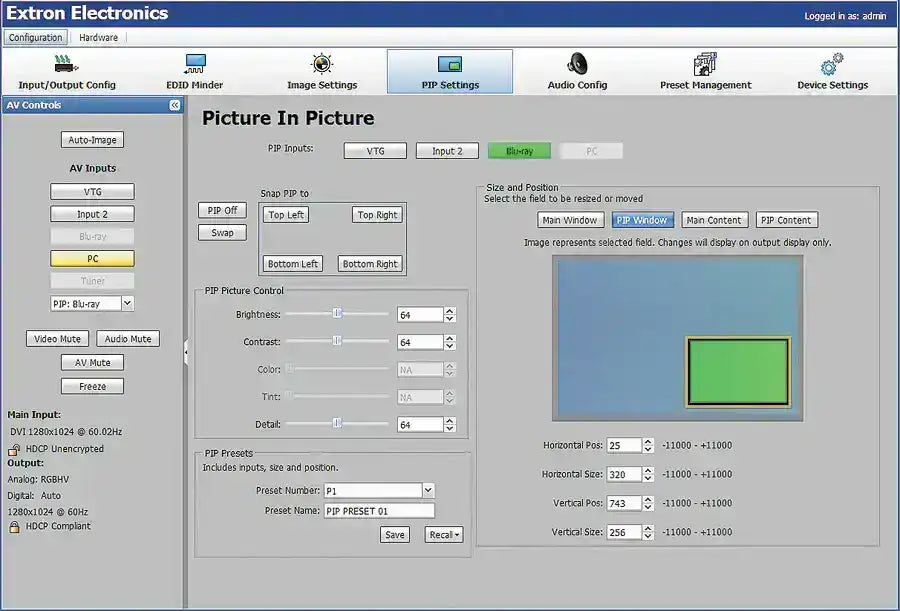

• Picture-in-Picture (PIP) — Any two sources on inputs 1–4; adjustable size, position, and magnification; side-by-side presets included.
• Advanced Scaling Engine — 30-bit precision; 640x480 through 1920x1200 and 1080p/60; motion-adaptive deinterlacing for 1080i; 3:2 and 2:2 pulldown detection.
• HDCP 1.4/2.3 Compliant — EDID Minder and Key Minder for reliable HDCP authentication and fast switching; HDCP Visual Confirmation (green output on non-compliant displays).
• Auto-Switching — Configurable priority-based or last-connected switching; auto-image optimization for new sources.
• AFL — Accu-RATE Frame Lock — Locks output frame rate to a designated input to eliminate stuttering from frame rate conversion.

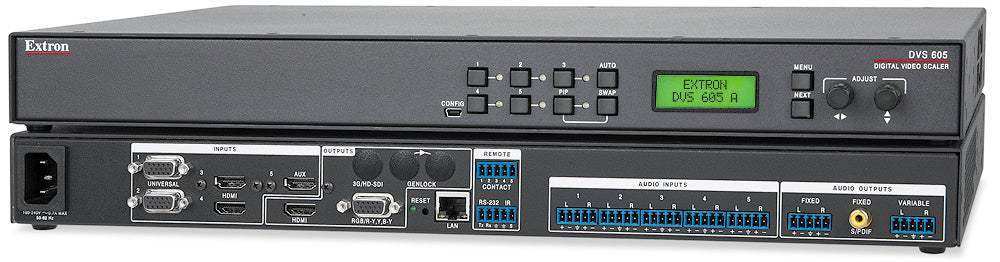

• Audio Switching (A Models) — 5 stereo balanced/unbalanced inputs; HDMI embedding/de-embedding; S/PDIF output; fixed and variable analog outputs.

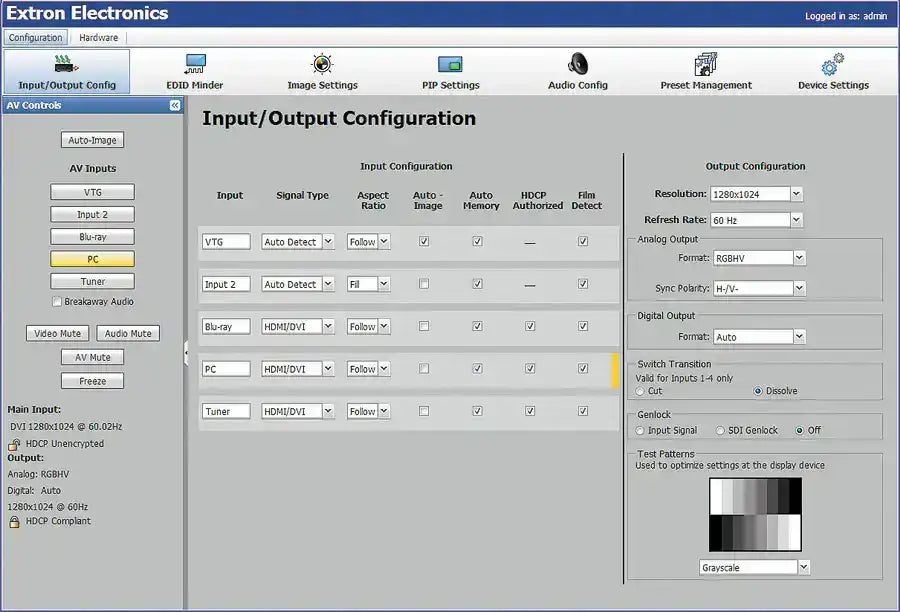

• Multiple Control Options — Ethernet, RS-232, front-panel USB mini-B, contact closure, and hardwired IR port.
• 1U Full-Rack Enclosure — 1.72" H x 17.5" W x 10.5" D; internal Everlast power supply; LockIt cable lacing brackets included.

Technical Specifications

Typical Application

The DTP DVS 605 is deployed in conference rooms and lecture halls where laptops, cameras, and legacy analog sources must be scaled and seamlessly switched to both a local HDMI display and a remote display via DTP signal extension, with optional audio switching for microphones and program sources.

Spec Sheet PDF Download

Download the Extron DVS 605 Series Spec Sheet (PDF)
