Draper Ultimate Access XL E, 27' 6" NTSC Motorized Projection Screen

Product Overview

The Draper Ultimate Access XL E is a large-format, ceiling-recessed motorized projection screen with an independently motorized trap door that opens upward into the case and closes flush when the screen is retracted, giving a fully concealed ceiling appearance even at extra-large sizes. This 27' 6" NTSC (4:3) model is available in both 110V and 220V for large-venue commercial AV installations. Choose your surface, motor, and voltage configuration using the selectors above.

Product Description

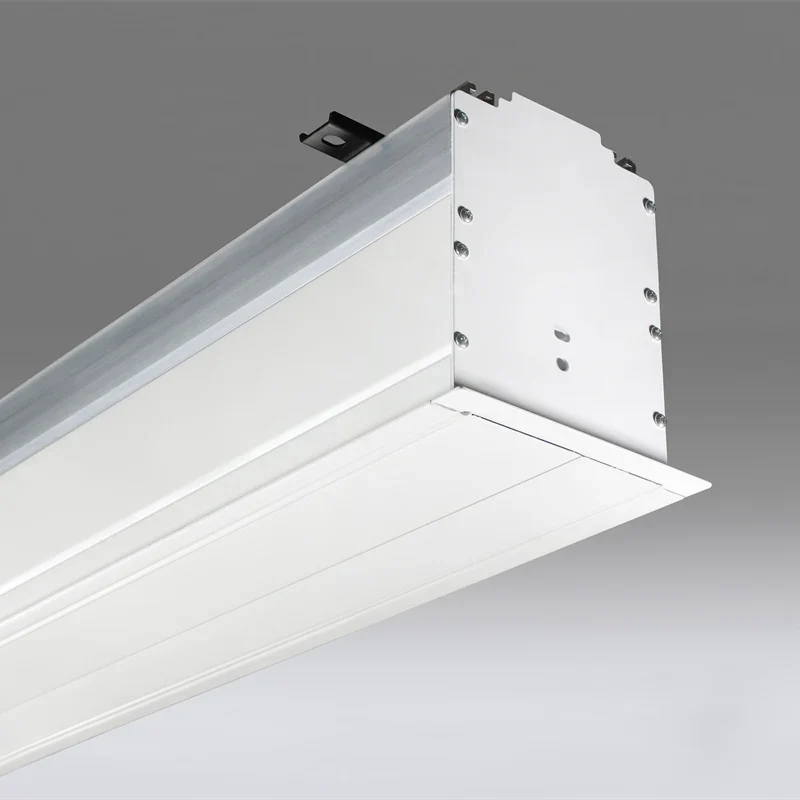

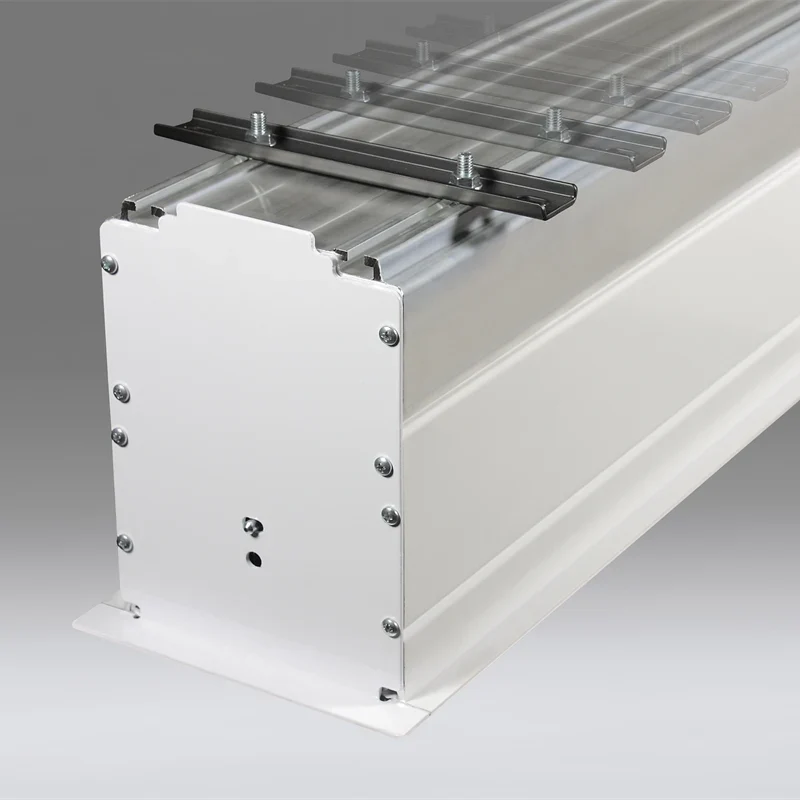

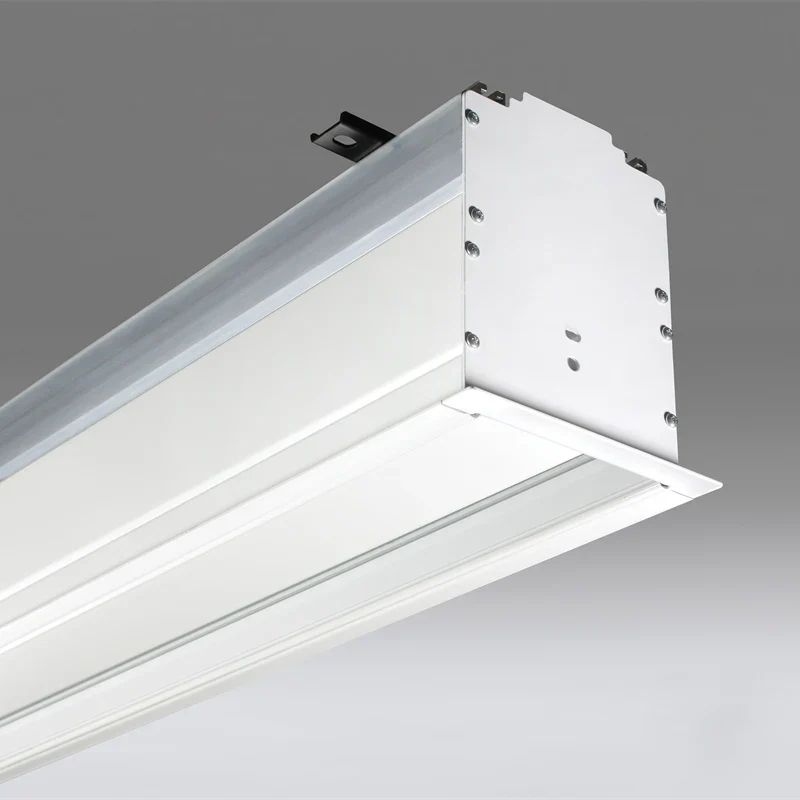

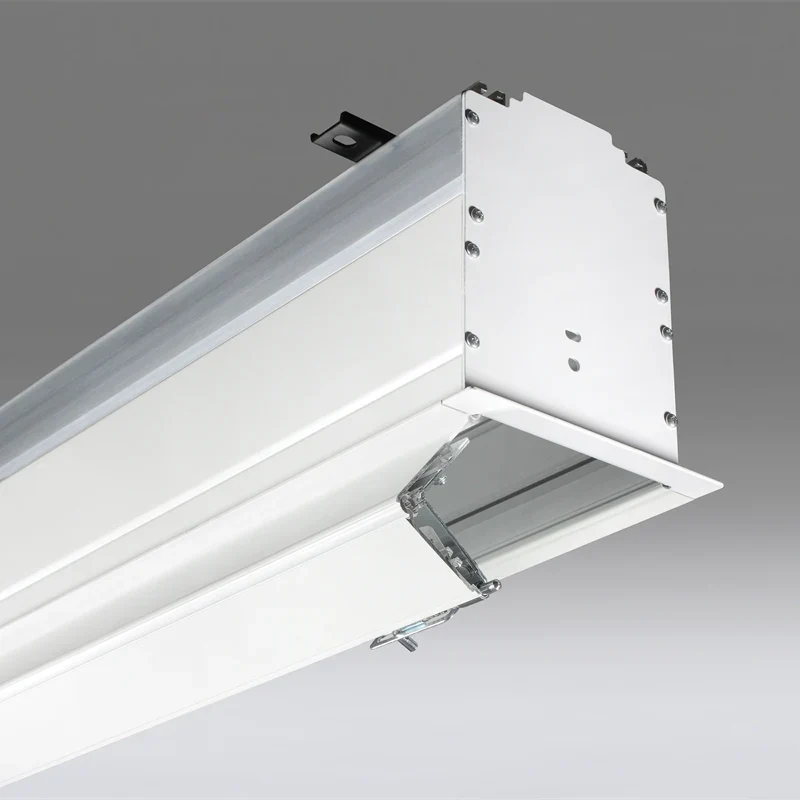

The Draper Ultimate Access XL E electric projection screen scales the Ultimate Access trap-door design up to extra-large format, with a motorized trap door and access door that hinge downward on concealed hinges, giving installers full access to the case for service while presenting a completely finished, flush ceiling opening when closed. The steel case is finished white as standard. A standard motor is included, with an LVC-IV low-voltage controller available as an upgrade, in either 110V or 220V — selectable above. Viewing surfaces are masked by a black drop.

Key Features

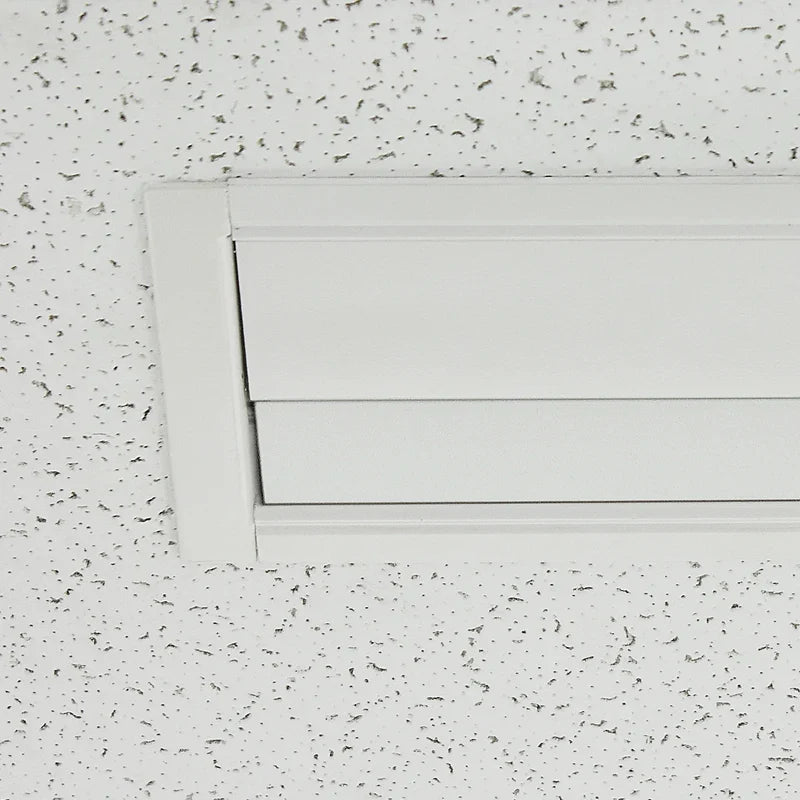

• Motorized trap door — Opens upward into the case and closes flush, giving a fully concealed ceiling appearance when the screen is retracted, even at extra-large sizes.
• NTSC 4:3 format — This 27' 6" model suits legacy document, data, and camera sources at large-venue scale.
• Two viewing surface options — Matt White XT1000E or Contrast Grey XH800E to suit room lighting and ambient light control.
• 110V or 220V — select the voltage that matches your project.
• LVC-IV option — Upgrade from the standard motor for low-voltage room-control integration.
• Plenum-rated case — UL Listed "Suitable for Use in Environmental Air Space."

Typical Applications

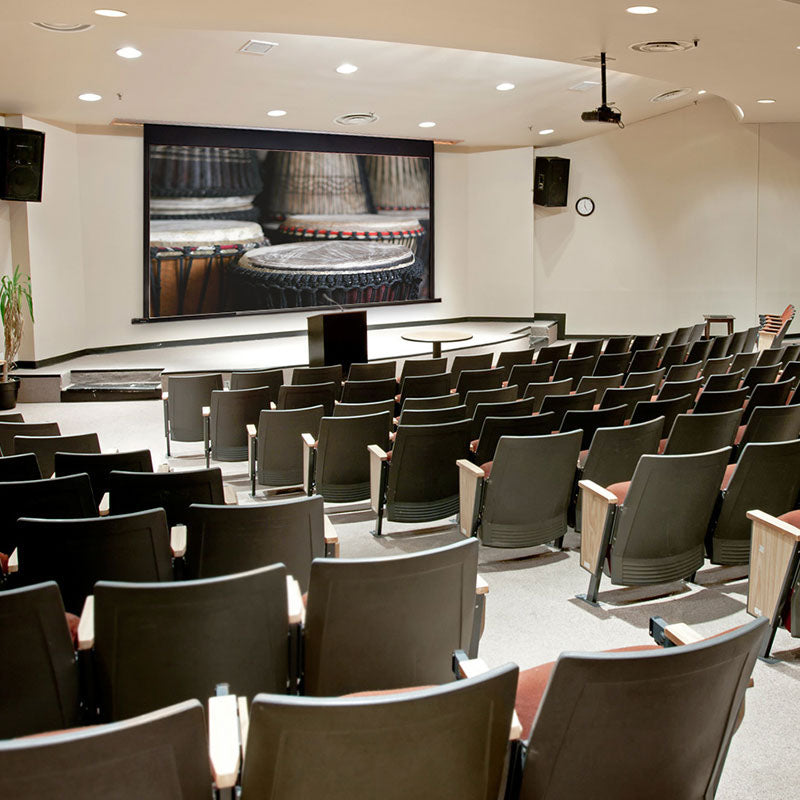

• Auditoriums and large-venue conference spaces
• Convention centers and ballrooms
• International installations requiring 220V

Technical Specifications

Frequently Asked Questions

What surfaces are available for this size?
Matt White XT1000E or Contrast Grey XH800E. Select your preferred surface above.

What motor and voltage options are available?
Standard motor or LVC-IV Low Voltage Controller, in 110V or 220V. At this large-format size, Quiet Motor is not offered. Select your configuration above.

What makes Ultimate Access XL E different from standard Ultimate Access E?
It scales the same trap-door design up to extra-large screen sizes for auditoriums and large venues, while keeping full serviceability and a flush ceiling appearance.

What warranty and support are included?
Ultimate Access XL E is UL Listed for the U.S. and Canada, with a plenum-rated case, supplied through Creation Networks as an authorized dealer.
