Draper Ultimate Access V, 161" HDTV Motorized Projection Screen

Product Overview

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned motorized projection screen with an independently motorized trap door that opens upward into the case and closes flush when the screen is retracted, giving a fully concealed ceiling appearance. This 161" HDTV (16:9) model is available in both 110V and 220V. Choose your surface, motor, and voltage configuration using the selectors above.

Product Description

The Draper Ultimate Access V electric projection screen pairs a tab-tensioned roller/fabric assembly — which keeps the viewing surface flat and wrinkle-free at any point in its travel — with a motorized trap door and access door that hinge downward on concealed hinges, giving installers full access to the case for service while presenting a completely finished, flush ceiling opening when closed. The steel case is finished white as standard. A standard motor lets an operator stop or reverse the screen at any point in its travel, with Quiet Motor and/or LVC-IV low-voltage controller available as upgrades, in either 110V or 220V — selectable above. Viewing surfaces are masked by a black drop.

Key Features

• Tab-tensioned viewing surface — Stays flat and ripple-free at any point in its travel, even at this large-format size.
• Motorized trap door — Opens upward into the case and closes flush, giving a fully concealed ceiling appearance when the screen is retracted.
• HDTV 16:9 format — This 161" model matches native widescreen video and presentation content.
• Four viewing surface options — Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, or CineFlex White XT700V.
• 110V or 220V — select the voltage that matches your project.
• Quiet Motor and LVC-IV options — Upgrade from the standard motor for lower operating noise and/or low-voltage room-control integration.

Typical Applications

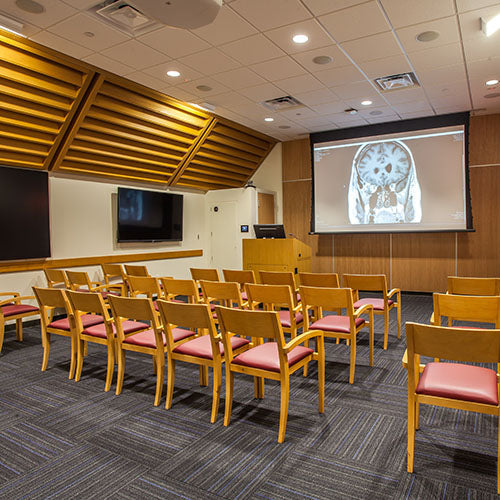

• Auditoriums and multi-purpose rooms requiring a fully concealed ceiling finish at large format
• Convention centers and large-venue conference spaces
• Houses of worship
• Corporate campuses and government meeting spaces

Technical Specifications

Frequently Asked Questions

What surfaces are available for this size?
Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, or CineFlex White XT700V. Select your preferred surface above.

What voltage and motor options are available?
110V and 220V, with Standard, Quiet Motor, LVC-IV Low Voltage Controller, or Quiet Motor & LVC-IV combined — select your configuration above.

What makes Ultimate Access V different from standard Access V?
Its trap door and access door are independently motorized and hinge downward on concealed hinges, so the case stays serviceable without ever detaching, while presenting a fully finished, flush ceiling appearance at this large-format size — combined with Access V's tab-tensioned, ripple-free viewing surface.

What warranty and support are included?
Ultimate Access V is UL Listed for the U.S. and Canada, with a plenum-rated case, supplied through Creation Networks as an authorized dealer.
