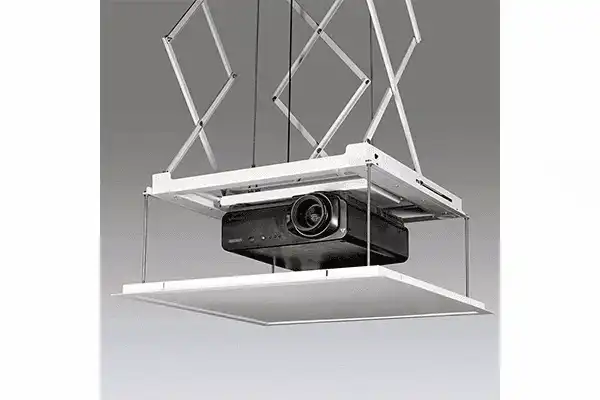

Draper Scissor Lift SLX28 - 300255

Product Overview

The Draper Scissor Lift SLX28 is a heavy-duty commercial projector ceiling lift engineered for large-venue AV installations where projector access and stability are critical. Designed for heavier projectors up to 350 lb (159 kg), the SLX28 extends up to 28 feet (853 cm), making it one of the highest-capacity projector lifts available for auditoriums, houses of worship, and large training rooms. Three independent scissor assemblies provide lateral and front-to-back projector stability throughout the full travel range, and two programmable show positions allow integrators to dial in precise projection angles for repeatable results.

Product Description

The SLX series is Draper's top-tier ceiling-mounted projector lift, hand-assembled and tested at the factory in Spiceland, Indiana before shipment. The SLX28 is built for commercial AV deployments where projectors are large, ceilings are high, and maintenance access matters. Three sets of scissors distribute the projector load laterally and front-to-back, reducing vibration and drift during operation — a practical advantage for permanent installations running long meetings or services without a technician present.

Two programmable show positions can be set independently while still allowing full-up storage and full-down service positions. Position memories are retained even if power is interrupted — the lift returns to the same position after restoration without requiring technician reconfiguration. The SLX28 supports projectors drawing up to 12 amps and can power the projector directly via a built-in 115V or 240V UL-listed receptacle, eliminating the need for a separate power run to the projector.

For installations in plenum-rated ceiling spaces, the optional Environmental Airspace Housing isolates the projector from the HVAC airspace above the ceiling tile. An optional ceiling closure panel (white standard, black available) closes the ceiling aperture when the lift is in the up position. Factory-installed video and control cable runs are available, reducing field labor. Control options include a wall switch and service key switch as standard, with optional IR control for third-party AV system integration.

Key Features

• 350 lb (159 kg) lifting capacity — Supports large-format, high-brightness commercial projectors up to 12 amps without structural compromise.
• 28' (853 cm) maximum extension — Reaches projectors installed in high-ceiling venues such as auditoriums, worship spaces, and large event halls.
• Three-axis scissor stability — Three independent scissor sets provide lateral and front-to-back stability, minimizing vibration during operation.
• Two programmable show positions — Preset positions for different projection scenarios; positions are memory-retained through power interruption.
• Built-in projector power outlet — UL-listed 115V or 240V receptacle powers the projector directly from the lift chassis.
• Optional Environmental Airspace Housing — Isolates the projector from HVAC airspace for plenum-rated ceiling installations.
• Optional ceiling closure panel — White (standard) or black panel seals the ceiling aperture when the lift is retracted.
• Factory cable integration — Video and projector control cables can be factory-routed through the lift assembly, reducing field wiring labor.
• Wall switch + service key standard — Optional IR control available for integration with Crestron, Control4, and other third-party automation systems.
• 110V or 220V motor options — Accommodates domestic and international electrical standards.
• White or black finish — White standard; black available to match ceiling finishes.
• USA manufactured — Hand-assembled and factory-tested in Spiceland, Indiana.

Typical Applications

• Auditorium and large-format presentation spaces
• House of worship main sanctuaries
• Government and military briefing rooms
• University lecture halls
• All-hands and large conference rooms
• Broadcast studios with ceiling-mounted projection

Technical Specifications

Frequently Asked Questions

What is the maximum projector weight this lift supports?
The SLX28 supports up to 350 lb (159 kg), suitable for large-format, high-lumen commercial projectors commonly used in auditoriums and large-venue installs.

Can the SLX28 power the projector directly?
Yes. A built-in 115V or 240V UL-listed receptacle in the lift chassis powers the projector, eliminating the need for a separate ceiling power run.

Does this lift integrate with Crestron or Control4?
The standard configuration includes a wall switch and service key switch. Optional IR control enables integration with Crestron, Control4, and most commercial AV control systems.

What happens to show positions if power is lost?
Programmed show positions are memory-retentive — stored in the lift controller and restored automatically after a power interruption, without technician reconfiguration.

Is the SLX28 suitable for plenum-rated ceiling spaces?
Yes. With the optional Environmental Airspace Housing, the projector is isolated from HVAC airspace, meeting plenum-rated installation requirements.

What is the warranty?
Draper provides a one-year warranty against defects in materials and workmanship. Contact Creation Networks for warranty support.

Are factory cable runs available?
Yes. Video and projector control cables can be factory-installed through the lift assembly at time of order, reducing field labor during installation.
