Draper Scissor Lift SLX24 - 300254

Product Overview

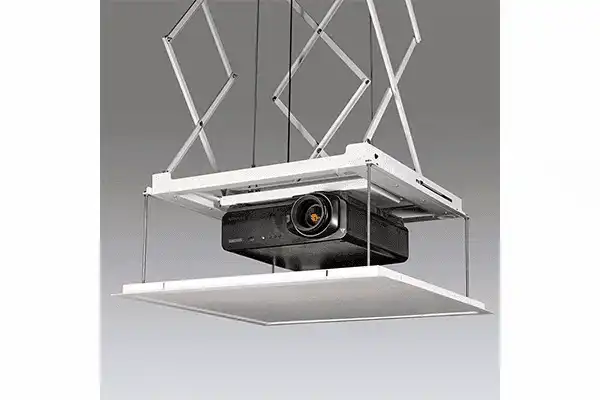

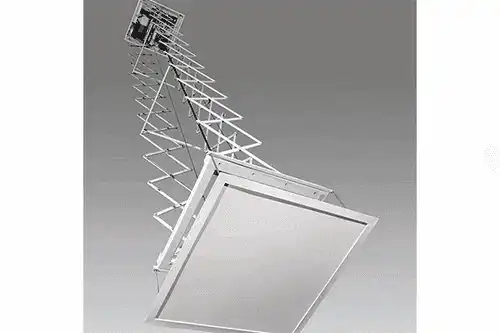

The Draper Scissor Lift SLX24 is a heavy-duty commercial projector ceiling lift built for large-venue AV installations requiring projector access at height. With a 350 lb (159 kg) lifting capacity and a maximum extension of 24 feet (732 cm), the SLX24 is suited for auditoriums, houses of worship, and university lecture halls where projectors are mounted high in the ceiling structure. Three independent scissor assemblies provide lateral and front-to-back projector stability across the full travel range, and two programmable show positions enable repeatable projection placement for different event configurations.

Product Description

The SLX series is Draper's top-tier ceiling-mounted projector lift, hand-assembled and tested in Spiceland, Indiana. The SLX24 handles commercial AV deployments where projectors are heavy, ceilings are high, and reliable maintenance access is required. Three scissor sets distribute the load laterally and front-to-back, reducing vibration and drift — important for installations that run continuously without a technician on-site.

Two programmable show positions can be set independently while retaining full-up storage and full-down service positions. Position memories survive power interruptions — the lift returns to set positions automatically after power is restored. The SLX24 supports projectors drawing up to 12 amps and can supply power directly via a built-in 115V or 240V UL-listed receptacle, eliminating a separate electrical run to the projector.

The optional Environmental Airspace Housing isolates the projector from HVAC airspace for plenum-rated installations. An optional ceiling closure panel (white or black) maintains a clean ceiling appearance when the lift is retracted. Factory-installed video and control cable runs reduce field labor. Standard controls are a wall switch and service key switch, with optional IR for third-party AV system integration.

Key Features

• 350 lb (159 kg) lifting capacity — Supports large-format, high-brightness commercial projectors up to 12 amps.
• 24' (732 cm) maximum extension — Reaches projectors in high-ceiling auditoriums, sanctuaries, and lecture halls.
• Three-axis scissor stability — Three independent scissor sets provide lateral and front-to-back stability throughout travel.
• Two programmable show positions — Memory-retentive through power interruption; no technician reconfiguration required after restoration.
• Built-in projector power outlet — UL-listed 115V or 240V receptacle for direct projector power from the lift chassis.
• Optional Environmental Airspace Housing — Isolates projector from HVAC airspace for plenum-rated installations.
• Optional ceiling closure panel — White (standard) or black; seals ceiling aperture when lift is retracted.
• Factory cable integration — Video and control cables factory-routed through the lift to reduce field wiring labor.
• Wall switch + service key standard — Optional IR for Crestron, Control4, and other AV control systems.
• 110V or 220V motor options — Compatible with domestic and international electrical standards.
• White or black finish — White standard; black available.
• USA manufactured — Hand-assembled and factory-tested in Spiceland, Indiana.

Typical Applications

• Auditorium and large-format presentation spaces
• House of worship main sanctuaries
• Government and military briefing rooms
• University lecture halls
• All-hands and large conference rooms
• Broadcast studios with ceiling-mounted projection

Technical Specifications

Frequently Asked Questions

What projector weight does the SLX24 support?
Up to 350 lb (159 kg), suitable for large-format commercial projectors used in auditoriums and large venues.

Can the SLX24 supply power to the projector?
Yes. A built-in 115V or 240V UL-listed receptacle in the lift chassis powers the projector directly.

Does this lift work with Crestron or Control4?
Standard controls are a wall switch and service key switch. Optional IR enables integration with Crestron, Control4, and most commercial AV control systems.

Are show positions retained after a power outage?
Yes. Programmed positions are memory-retentive and restored automatically after power is restored.

Is the SLX24 plenum-rated?
With the optional Environmental Airspace Housing, the projector is isolated from HVAC airspace for plenum-rated installations.

What is the warranty?
Draper provides a one-year warranty. Contact Creation Networks for support.
