Draper Scissor Lift SLX17 - 300252

Product Overview

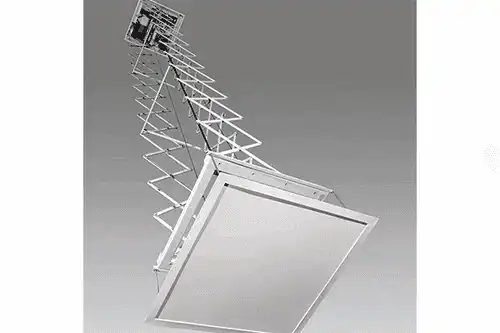

The Draper Scissor Lift SLX17 is a heavy-duty commercial projector ceiling lift designed for venues with mid-to-high ceilings where projector stability and reliable access are priorities. With a 350 lb (159 kg) lifting capacity and a maximum extension of 17 feet (518 cm), the SLX17 is a practical choice for houses of worship, mid-size auditoriums, training rooms, and government briefing spaces. Three independent scissor assemblies keep the projector stable laterally and front-to-back across the full travel range, while two programmable show positions allow venue operators to set repeatable projection heights without manual adjustment between events.

Product Description

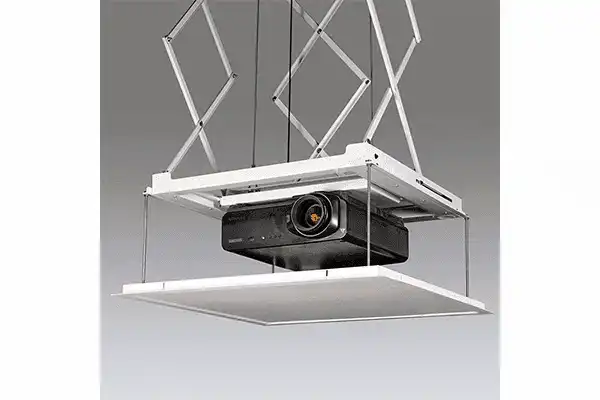

The SLX series is Draper's top-tier ceiling-mounted projector lift, hand-assembled and factory-tested in Spiceland, Indiana. The SLX17 is built for commercial AV environments where projectors support high-lumen output up to 12 amps and where maintenance at height is an ongoing operational need. Three scissor sets distribute the projector load laterally and front-to-back, reducing vibration that would otherwise affect image quality during extended presentations.

Two programmable show positions can be set for different event configurations while retaining full-up storage and full-down service positions. These settings survive power interruptions — the lift restores to programmed positions automatically, without technician intervention. Power is supplied to the projector via a built-in 115V or 240V UL-listed receptacle in the lift chassis, eliminating the need for a separate ceiling electrical run to the projector.

Optional accessories include Environmental Airspace Housing for plenum-rated ceiling installations, a ceiling closure panel (white standard, black available), a ceiling finish kit with trim ring, a universal projector bracket, and factory-installed video and control cable runs. Standard control is a wall switch and service key switch; optional IR enables integration with Crestron, Control4, and other commercial AV control systems.

Key Features

• 350 lb (159 kg) lifting capacity — Supports high-lumen commercial projectors up to 12 amps.
• 17' (518 cm) maximum extension — Suited for mid-height ceiling installations in worship spaces, training rooms, and auditoriums.
• Three-axis scissor stability — Three independent scissor sets minimize lateral and front-to-back movement during operation.
• Two programmable show positions — Memory-retentive through power interruption; restored automatically after power is restored.
• Built-in projector power outlet — UL-listed 115V or 240V receptacle eliminates a separate ceiling power run to the projector.
• Optional Environmental Airspace Housing — Isolates projector from HVAC airspace for plenum-rated ceiling installations.
• Optional ceiling closure panel — White (standard) or black; seals ceiling aperture when lift is retracted.
• Factory cable integration — Video and control cables factory-routed through the lift assembly to reduce field labor.
• Wall switch + service key standard — Optional IR for Crestron, Control4, and third-party AV automation systems.
• 110V or 220V motor options — Compatible with domestic and international electrical standards.
• White or black finish — White standard; black available to match ceiling finishes.
• USA manufactured — Hand-assembled and factory-tested in Spiceland, Indiana.

Typical Applications

• House of worship main sanctuaries
• Mid-size auditorium and presentation spaces
• Government and military briefing rooms
• Corporate training rooms
• University lecture halls
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What projector weight does the SLX17 support?
Up to 350 lb (159 kg), suitable for large-format commercial projectors used in worship spaces and training rooms.

Can the lift supply power to the projector?
Yes. A built-in 115V or 240V UL-listed receptacle in the lift chassis eliminates a separate ceiling power run.

Is it compatible with Crestron or Control4?
Optional IR control enables integration with Crestron, Control4, and most commercial AV automation systems.

Are show positions retained after a power outage?
Yes. Programmed positions are memory-retentive and restored automatically after power is restored.

Is the SLX17 suitable for plenum-rated ceilings?
Yes, with the optional Environmental Airspace Housing accessory.

What is the warranty?
One year against defects in materials and workmanship. Contact Creation Networks for support.
