Draper 300278 SL12 Electric Projector 12 Foot Drop Scissor Lift

Product Overview

The Draper Scissor Lift SL12 (300278) is a ceiling-mounted electric projector lift built for commercial AV installations requiring a 12-foot lowering distance and a 100 lb (45 kg) lift capacity. It is the largest model in Draper's five-unit Scissor Lift SL family (SL4 through SL12), each sized for a different combination of ceiling height and projector weight. Three sets of scissors provide lateral and front-to-back stability, and two programmable show positions retain their settings even through a power outage.

Product Description

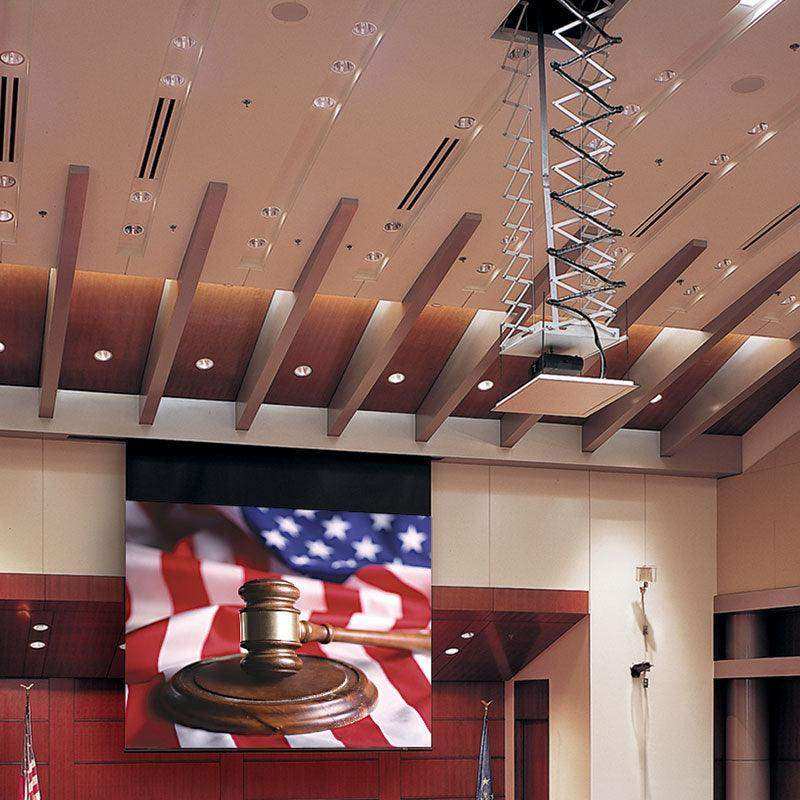

The Scissor Lift SL conceals a ceiling-mounted projector above the finished ceiling line and lowers it to a precise, repeatable position for presentations, then raises it out of sight when not in use. The SL12 is sized for installations needing the full 12-foot lowering range in the SL family — taller rooms or projectors mounted well above the audience — while its 100 lb capacity suits mid-weight commercial and education-grade projectors rather than the large-format units the heavier-duty SLX series is built for.

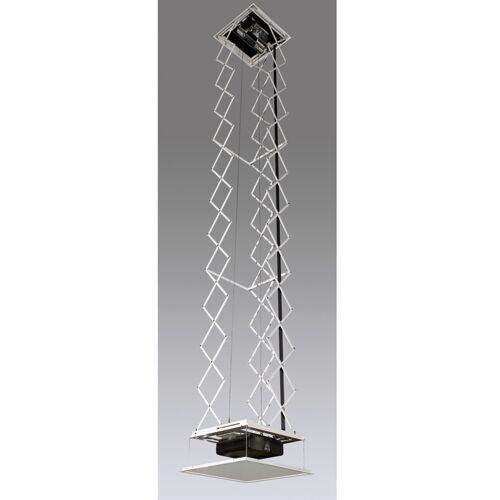

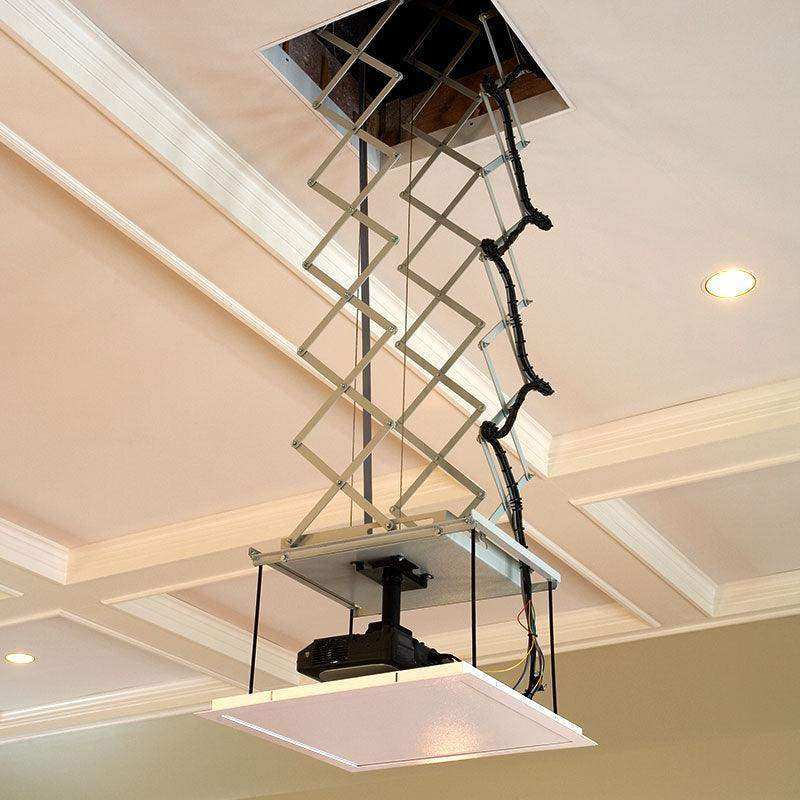

Three independent scissor sets keep the projector stable both laterally and front-to-back throughout the full travel range, reducing image drift during long presentations. Two show positions can be programmed independently, in addition to full-up storage and full-down service positions, and all programmed positions are retained through a power interruption — no reprogramming is needed after power is restored. The lift powers the projector directly through a UL-listed 115V or 240V receptacle built into the chassis, removing the need for a separate electrical run to the projector itself.

Standard control is built-in RS232 and RS485, with optional RF or IR available for integration with third-party AV control systems; a wall switch and service key switch are included. For plenum-rated ceiling spaces, the optional Environmental Airspace Housing isolates the projector from the HVAC airspace above the ceiling tile. An optional ceiling closure panel (white standard, black available) keeps the ceiling aperture finished when the lift is retracted, and a universal projector bracket accommodates a range of projector footprints. Factory-installed video and control cable runs are available to reduce field labor. Contact Creation Networks for rough-in dimensions specific to the projector model being integrated.

Key Features

• 100 lb (45 kg) lift capacity — Sized for mid-weight commercial and education-grade projectors.
• 12' maximum lowering distance — The largest-drop model in the Scissor Lift SL family (SL4–SL12).
• 16" retracted height — Compact stored profile above the ceiling line.
• Three-axis scissor stability — Three independent scissor sets minimize lateral and front-to-back movement during operation.
• Two programmable show positions — Power-loss retentive; no reprogramming needed after an outage.
• Built-in projector power outlet — UL-listed 115V or 240V receptacle powers the projector directly from the lift chassis.
• Built-in RS232/RS485 control — Optional RF or IR for third-party AV automation integration.
• Wall switch + service key switch included — Standard local control.
• Optional Environmental Airspace Housing — Isolates the projector from HVAC airspace for plenum-rated installations.
• Optional ceiling closure panel — White (standard) or black; finishes the ceiling aperture when retracted.
• Universal projector bracket available — Accommodates a range of projector footprints.
• White or black finish — White standard; black available to match ceiling finishes.
• UL listed — Certified to meet building code requirements for recessed ceiling installations.

Typical Applications

• Corporate conference room requiring a full 12-foot projector drop

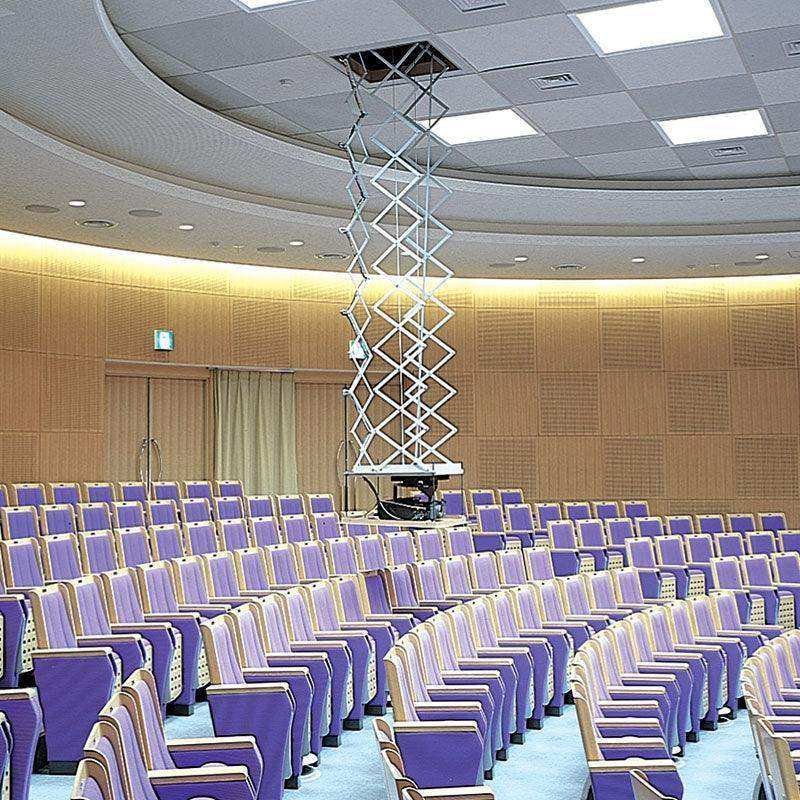

• University lecture hall with high ceiling-to-seating ratio
• Government briefing room with clean ceiling aesthetic
• Auditorium or multi-purpose room with mid-weight projector
• Executive boardroom with premium finish requirements
• Commercial meeting space with ceiling-recessed AV infrastructure

Technical Specifications

Frequently Asked Questions

How does the SL12 differ from the SLX series?
The Scissor Lift SL family (SL4–SL12) is sized for lighter projectors, topping out at a 100 lb capacity on the SL12. The SLX series is Draper's heavier-duty line, supporting up to 350 lb across longer lowering distances (up to 28'). Choose SL for mid-weight commercial and education projectors; choose SLX for large-format, high-lumen projectors or longer drop requirements.

What is the maximum projector weight the SL12 supports?
100 lb (45 kg).

Does the SL12 supply power to the projector?
Yes. A UL-listed 115V or 240V receptacle is built into the lift chassis, eliminating a separate ceiling power run to the projector.

Does it integrate with AV control systems?
The SL12 includes built-in RS232 and RS485 control as standard, with optional RF or IR available for third-party automation platforms.

Are show positions retained after a power outage?
Yes. Programmed positions are memory-retentive and require no reprogramming after power is restored.

Is the SL12 suitable for plenum-rated ceilings?
Yes, with the optional Environmental Airspace Housing accessory.

What is the warranty?
Contact Creation Networks for current Draper warranty terms on the Scissor Lift SL series.
