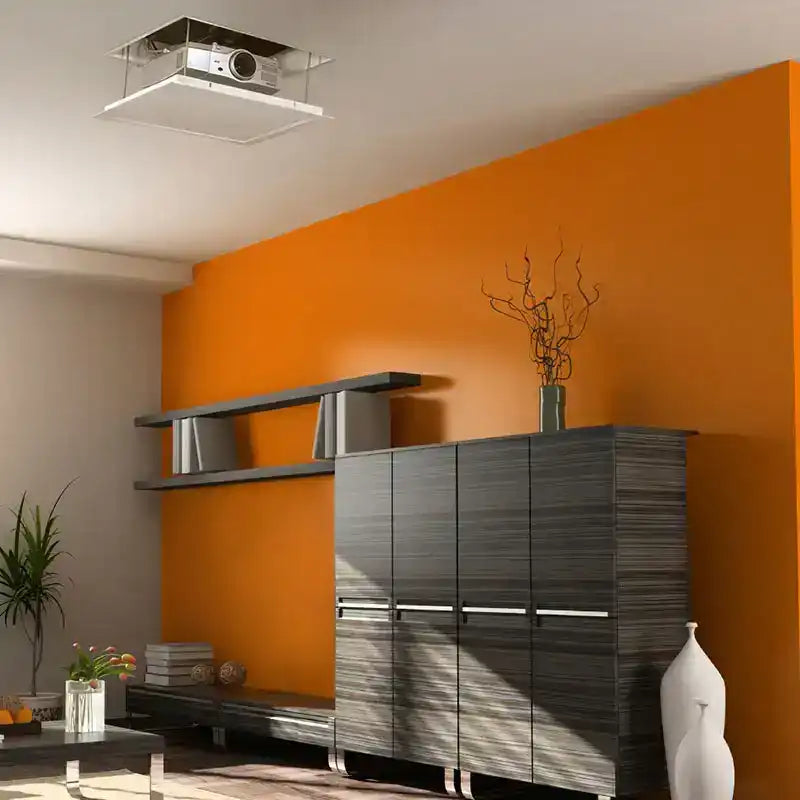

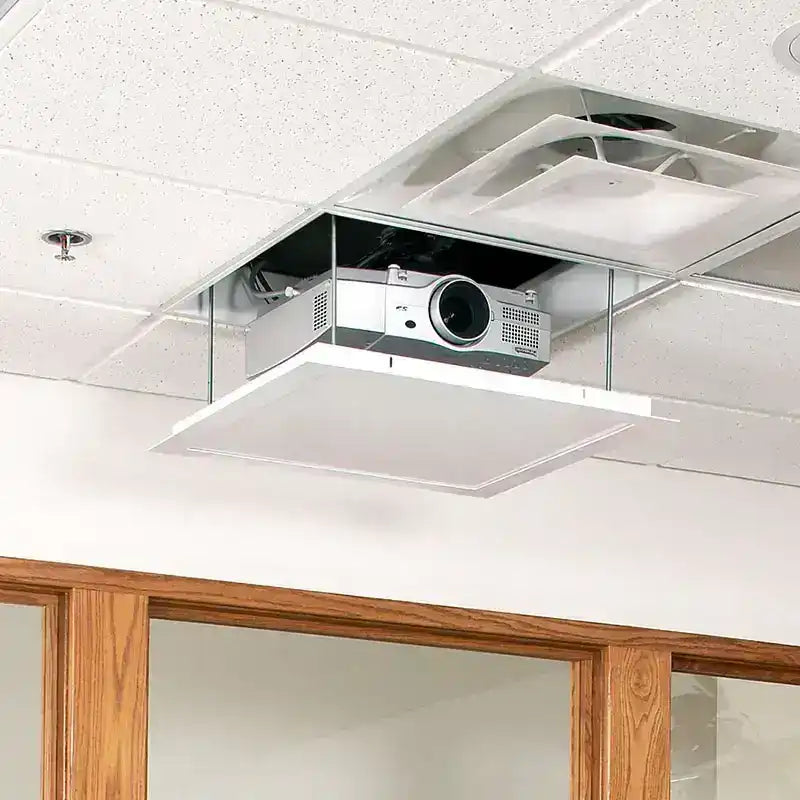

Draper AeroLift 35, a ceiling-recessed projector lift

AeroLift 35, a ceiling-recessed projector lift, features a space-saving design, built-in adjustability, and a 35-pound maximum lifting capacity.

The most compact ceiling-recessed lift in the series, AeroLift 35 supports up to 35 lbs (16 kg), ideal for tight spaces. It features a stabilizing arm for cable management and built-in adjustability for quick adaptation to job-site conditions.

To skillfully keep the overall footprint and height to a minimum of your projector, Draper's AeroLift 35 is a viable solution. The AeroLift 35 provides a ceiling-recessed projector lift with a 35-pound (16 kg) maximum lifting capacity for areas that have space limitations. Aesthetically designed, each model in the AeroLift series varies in vertical extension length, maximum lifting capacity, and features a stabilizing arm for cable management. Built-in adjustability provides for quick and easy response to job-site conditions.

The AeroLift 35 actually installs between standard 2" (5 cm) thick ceiling joists on 16" (41 cm) centers. Versatile, the AeroLift series from Draper can also be used to recess speakers, security cameras, videoconferencing cameras or document cameras. The AeroLift is powered by a motor-in-roller design, and features a stabilizing arm which can also be used for cable management.

Product Specs

•  Maximum lifting capacity up to 35 lb (16 kg).

•  Maximum extension 24-1/2" (62 cm).

•  Optional airspace housing isolates the projector from the ceiling environment.

•  Optional ceiling closure panel available in white (standard) or black.

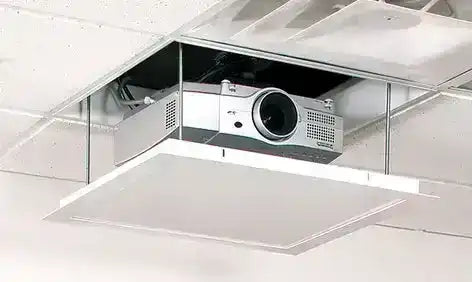

•  Optional ceiling finish kit includes a trim ring and closure panel.

•  Optional universal-style bracket supports various projector models.

•  Standard wall switch with optional IR or RF remote control or integration into an existing system.

•  UL listed.

Draper AeroLift 35 Specifications:

• Dimensions:
  • 23-1/2" x 14-1/16" (60 cm x 36 cm)
  • Fits between 16" (41 cm) OC 2" (5 cm) joists
  • Size: 35 lbs. (16 kg) lifting capacity and 24.5" (62 cm) travel distance.
  • Closed Position: 4" H x 12-1/2" W x 22-1/4" L (101 mm x 32 cm x 57 cm)
• NOTE: Does not include projector, mounting bracket, ceiling closure or other accessories.
• Built-In Adjustability: Allows you to deal with job site conditions quickly and easily.
