DBX ZC-8 Wall-Mounted Zone Controller - DBXZC8V
Product Overview

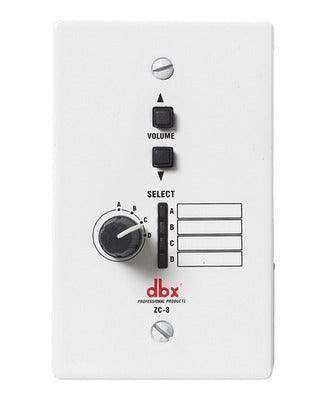

The DBX ZC-8 is a wall-mounted zone controller for dbx ZonePRO distributed audio processors, featuring push-button volume up/down controls and a rotary source selection knob for convenient in-room audio control. Designed for ZonePRO 640/641/1260/1261 installations, the ZC-8 gives building occupants direct, intuitive access to volume and source selection without requiring access to the central processor or a smartphone app.
Product Description
In commercial distributed audio installations, zone controllers give building occupants practical control over the audio in their space. The DBX ZC-8 provides the two most common control functions - volume and source selection - on a single wall plate that installs in a standard single-gang electrical box. The push-button volume up and down controls allow incremental level adjustments, while the rotary source selection knob lets users choose from the sources configured in the ZonePRO system. Up to six ZC-8 controllers can be wired from a single ZonePRO zone output using CAT5 or CAT5E cable, either in a series daisy-chain up to 300 feet or in a parallel home-run configuration with a ZC-BOB up to 1000 feet. Available at Creation Networks.
Key Features
- Push-Button Volume Control - Dedicated up/down buttons for incremental volume adjustment.
- Rotary Source Selection - Knob selects from available sources configured in the ZonePRO processor.
- ZonePRO Compatible - Designed for ZonePRO 640, 641, 1260, and 1261 processors.
- CAT5/CAT5E Wiring - Connects to the processor via standard structured cable.
- Series or Parallel Wiring - Supports daisy-chain or parallel topology with ZC-BOB for extended reach.
- Single-Gang Form Factor - Fits standard electrical box with included wall plate.
- Up to 6 Controllers Per Zone - Multiple ZC-8 units can share a single zone output.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | (2) RJ-45 |
| Max Controllers - Series (3 units) | 600 feet total |
| Max Controllers - Series (6 units) | 300 feet total |
| Max Controllers - Parallel w/ ZC-BOB | 6 controllers at up to 1000 feet |
| Cable Type | CAT5 or CAT5E, 28.6 Ohm/M DCR, VW-1 rated |
| Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
