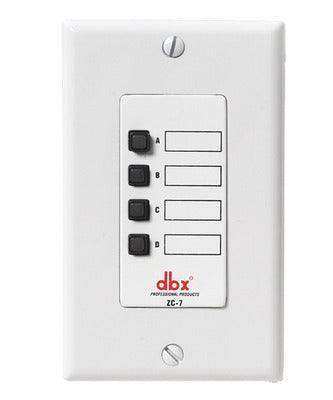

DBX ZC-7 Wall-Mounted Zone Controller - DBXZC7V
Product Overview
The DBX ZC-7 is a wall-mounted push-to-talk zone controller for dbx ZonePRO distributed audio processors, providing a momentary push button that activates paging zone assignments for live announcements in ZonePRO 640/641/1260/1261 installations. The ZC-7 is the standard hardware interface for staff-initiated paging in commercial audio systems where a dedicated push-to-talk control point is needed at each zone or announcement location.
Product Description
In retail, hospitality, corporate, and institutional audio installations, staff need to make live announcements from specific locations - a customer service desk, a reception counter, or a back-of-house dispatch point. The DBX ZC-7 provides a dedicated push-to-talk button at these locations, activating the paging zone assignment configured in the connected ZonePRO processor when pressed. Releasing the button ends the page and returns the zone to its previous programming. The ZC-7 installs in a standard single-gang electrical box and connects to the ZonePRO via CAT5 or CAT5E cable. Up to six ZC-7 units can share a single zone output in series or parallel configurations. Available at Creation Networks.
Key Features
- Push-to-Talk Paging - Momentary button activates page zone assignment in ZonePRO when held.
- Live Announcement Control - Dedicated control point for staff-initiated paging at any location in the building.
- ZonePRO Compatible - Designed for ZonePRO 640, 641, 1260, and 1261 processors.
- CAT5/CAT5E Wiring - Connects to the processor via standard structured cable.
- Series or Parallel Wiring - Supports daisy-chain or parallel topology with ZC-BOB for extended reach.
- Single-Gang Form Factor - Fits standard electrical box with included wall plate.
- Up to 6 Controllers Per Zone - Multiple ZC-7 units can share a single zone output.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | (2) RJ-45 |
| Control Type | Momentary push-to-talk button |
| Max Controllers - Series (3 units) | 600 feet total |
| Max Controllers - Series (6 units) | 300 feet total |
| Max Controllers - Parallel w/ ZC-BOB | 6 controllers at up to 1000 feet |
| Cable Type | CAT5 or CAT5E, 28.6 Ohm/M DCR, VW-1 rated |
| Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
