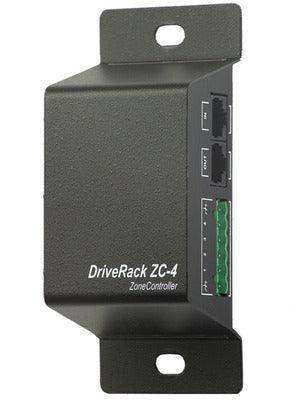

DBX ZC-4 Wall-Mounted Zone Controller - DBXZC4V
Product Overview
The DBX ZC-4 is a wall-mounted zone controller for dbx ZonePRO distributed audio processors, providing contact closure inputs that trigger program changes, scene recalls, and paging zone assignments directly from a low-voltage switch or relay. Compatible with ZonePRO 640/641/1260/1261 and DriveRack 220i/260, the ZC-4 is the preferred control point for applications where an external automation system, door contact, or relay needs to control the audio system without a dedicated user interface.
Product Description
In commercial audio installations, many control triggers come not from people pressing buttons but from building systems - door contacts opening, security sensors firing, or automation controllers sending relay closures. The DBX ZC-4 translates these dry contact closure events into ZonePRO program changes, source selections, page zone assignments, and scene recalls. Up to six ZC-4 controllers can be connected to a single ZonePRO or DriveRack zone output using CAT5 or CAT5E cable, either in series (daisy-chain) up to 300 feet, or in parallel with a ZC-BOB up to 1000 feet. The ZC-4 fits a standard single-gang electrical box and includes a wall plate for a finished appearance. Available at Creation Networks.
Key Features
- Contact Closure Inputs - Accepts dry contact closure signals from external automation, sensors, or relay outputs.
- Program Change Control - Triggers program changes on DriveRack 220i and 260.
- Scene and Source Selection - Sends source, page zone, and scene commands to ZonePRO processors.
- CAT5/CAT5E Wiring - Connects to ZonePRO or DriveRack via standard structured cable.
- Series or Parallel Wiring - Supports daisy-chain (up to 6 units) or parallel topology with ZC-BOB for extended reach.
- Single-Gang Form Factor - Fits standard electrical box with included wall plate for clean installation.
- Compatible Processors - Works with ZonePRO 640, 641, 1260, 1261 and DriveRack 220i, 260.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | (2) RJ-45 |
| Max Controllers - Series (3 units) | 600 feet total |
| Max Controllers - Series (6 units) | 300 feet total |
| Max Controllers - Parallel w/ ZC-BOB | 6 controllers at up to 1000 feet |
| Cable Type | CAT5 or CAT5E, 28.6 Ohm/M DCR, VW-1 rated |
| Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
