DBX ZC-3 Wall-Mounted Zone Controller - DBXZC3V
Product Overview

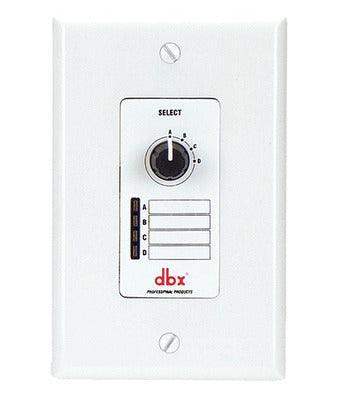

The DBX ZC-3 is a wall-mounted zone controller for dbx ZonePRO and DriveRack distributed audio processors, featuring a rotary selector knob that allows users to step through preset programs, source selections, pages, and scenes from the wall plate. Compatible with DriveRack 220i/260 and ZonePRO 640/641/1260/1261, the ZC-3 provides a clean, minimal interface for installations where users need source or preset selection without volume control.
Product Description
The DBX ZC-3 rotary zone controller suits installations where the primary user action is switching between audio sources or recalling system presets - conference rooms that switch between microphone and background music, lobbies that switch between announcement modes, or retail zones that change programming by time of day. A single rotary knob steps through the programs or sources configured in the connected processor, keeping the user interface simple and the wall plate uncluttered. The ZC-3 installs in a standard single-gang electrical box and connects to the ZonePRO or DriveRack via CAT5 or CAT5E cable. Up to six ZC-3 controllers can share a single zone output in series or parallel wiring. Available at Creation Networks.
Key Features
- Rotary Program/Source Selector - Single knob steps through programs (DriveRack) or source/page/scene (ZonePRO).
- Clean Minimal Interface - Single-control wall plate for simple user-facing installations.
- DriveRack and ZonePRO Compatible - Works with DriveRack 220i/260 and ZonePRO 640/641/1260/1261.
- CAT5/CAT5E Wiring - Connects via standard structured cable.
- Series or Parallel Wiring - Supports daisy-chain or parallel topology with ZC-BOB.
- Single-Gang Form Factor - Fits standard electrical box with included wall plate.
- Up to 6 Controllers Per Zone - Multiple ZC-3 units can share a single zone output.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | (2) RJ-45 |
| Max Controllers - Series (3 units) | 600 feet total |
| Max Controllers - Series (6 units) | 300 feet total |
| Max Controllers - Parallel w/ ZC-BOB | 6 controllers at up to 1000 feet |
| Cable Type | CAT5 or CAT5E, 28.6 Ohm/M DCR, VW-1 rated |
| Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
