DBX ZC-2 Wall-Mounted Zone Controller - DBXZC2V
Product Overview

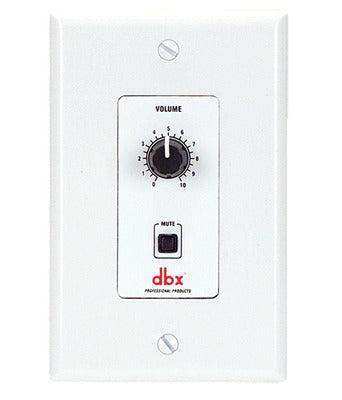

The DBX ZC-2 is a wall-mounted zone controller for dbx ZonePRO and DriveRack distributed audio processors, combining a rotary volume potentiometer and a push-button mute control on a single wall plate for convenient in-room audio level management. Compatible with DriveRack 220i/260 and ZonePRO 640/641/1260/1261, the ZC-2 gives building occupants direct control over zone volume and muting without access to the central processor.
Product Description
The DBX ZC-2 provides the two most fundamental audio controls - volume and mute - on a single wall-mount controller. The rotary potentiometer allows smooth, continuous volume adjustment within the range configured in the ZonePRO or DriveRack system, while the push-button mute switch enables instant silence when needed without losing the current volume setting. This combination makes the ZC-2 well suited for conference rooms, classrooms, offices, and any space where room occupants need to manage their own audio level. The ZC-2 installs in a standard single-gang electrical box and connects via CAT5 or CAT5E cable. Up to six ZC-2 controllers can share a single zone output in series or parallel wiring with a ZC-BOB. Available at Creation Networks.
Key Features
- Rotary Volume Potentiometer - Smooth continuous volume control within processor-configured limits.
- Push-Button Mute - Instantly mutes zone audio without losing the current volume level.
- DriveRack and ZonePRO Compatible - Works with DriveRack 220i/260 and ZonePRO 640/641/1260/1261.
- CAT5/CAT5E Wiring - Connects to the processor via standard structured cable.
- Series or Parallel Wiring - Supports daisy-chain or parallel topology with ZC-BOB for extended reach.
- Single-Gang Form Factor - Fits standard electrical box with included wall plate.
- Up to 6 Controllers Per Zone - Multiple ZC-2 units can share a single zone output.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | (2) RJ-45 |
| Controls | Rotary volume potentiometer + push-button mute |
| Max Controllers - Series (3 units) | 600 feet total |
| Max Controllers - Series (6 units) | 300 feet total |
| Max Controllers - Parallel w/ ZC-BOB | 6 controllers at up to 1000 feet |
| Cable Type | CAT5 or CAT5E, 28.6 Ohm/M DCR, VW-1 rated |
| Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
