DBX ZC-1 Wall-Mounted Zone Controller - DBXZC1V
Product Overview

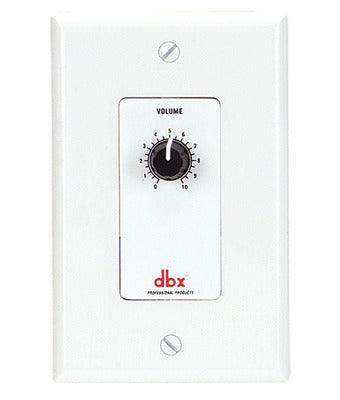

The DBX ZC-1 is a wall-mounted zone controller for dbx ZonePRO and DriveRack distributed audio processors, featuring a single rotary volume potentiometer for smooth, continuous level control in any zone. Compatible with DriveRack 260/220i and ZonePRO 640/641/1260/1261, the ZC-1 provides the most direct and intuitive volume interface in the ZC controller line for locations where a traditional rotary knob is preferred over push buttons.
Product Description
The DBX ZC-1 is the simplest zone controller in the dbx lineup, delivering a single rotary potentiometer for in-room volume control. Turning the knob adjusts the zone level within the range configured in the connected ZonePRO or DriveRack processor, giving room occupants smooth volume control without the stepped feel of push-button controllers. The ZC-1 is well suited for private offices, meeting rooms, breakout spaces, and any zone where a single resident or small group manages their own level. It installs in a standard single-gang electrical box and connects via CAT5 or CAT5E cable. Up to six ZC-1 controllers can share a single zone output. Available at Creation Networks.
Key Features
- Rotary Volume Potentiometer - Smooth, continuous level control within processor-configured limits.
- Simple Single-Control Interface - One knob for intuitive volume adjustment with no additional functions to confuse users.
- DriveRack and ZonePRO Compatible - Works with DriveRack 260/220i and ZonePRO 640/641/1260/1261.
- CAT5/CAT5E Wiring - Connects to the processor via standard structured cable.
- Series or Parallel Wiring - Supports daisy-chain or parallel topology with ZC-BOB for extended reach.
- Single-Gang Form Factor - Fits standard electrical box with included wall plate.
- Up to 6 Controllers Per Zone - Multiple ZC-1 units can share a single zone output.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | (2) RJ-45 |
| Controls | Rotary volume potentiometer |
| Max Controllers - Series (3 units) | 600 feet total |
| Max Controllers - Series (6 units) | 300 feet total |
| Max Controllers - Parallel w/ ZC-BOB | 6 controllers at up to 1000 feet |
| Cable Type | CAT5 or CAT5E, 28.6 Ohm/M DCR, VW-1 rated |
| Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
