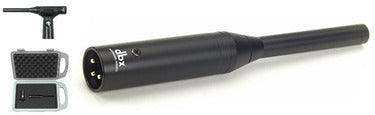

DBX RTA-M Reference Microphone - DBXRTA-M
Product Overview
The DBX RTA-M is an omnidirectional measurement microphone designed for use with real-time analysis (RTA) software and audio processors including the dbx DriveRack series, enabling accurate acoustic measurement and system optimization in live sound, installed AV, and studio monitor calibration applications. Its flat frequency response across 20Hz-20kHz and standard phantom power operation make it compatible with any mixing console or audio interface that provides 9-52V DC phantom power.
Product Description
Accurate room and system measurement requires a microphone with a known, predictable response, and the DBX RTA-M delivers exactly that. The back-electret condenser capsule with omnidirectional polar pattern captures all frequencies from all directions simultaneously, providing the 360-degree acoustic sampling that RTA and FFT analysis software requires. The omnidirectional pattern ensures that room reflections and summed acoustic energy are captured accurately, rather than just the direct signal axis. The 250 Ohm impedance and -63dB sensitivity are optimized for the input stages of dbx DriveRack processors, though the RTA-M is compatible with any preamp that provides phantom power between 9V and 52V DC. The compact form factor and included stand mount allow quick deployment on a microphone stand for measurement or permanent installation for room monitoring. Available at Creation Networks.
Key Features
- Omnidirectional Polar Pattern - Captures all frequencies from all directions for accurate room acoustic measurement.
- Back-Electret Condenser Capsule - Provides flat, predictable frequency response suited to measurement applications.
- Full-Range Frequency Response - 20Hz to 20kHz response covers the complete audible spectrum.
- Phantom Power Operation - Accepts 9-52V DC phantom power from any console or interface.
- DriveRack Compatible - Designed to work directly with dbx DriveRack processors for automated EQ and alignment.
- 250 Ohm Impedance - Standard professional impedance for connection to mixing consoles and processor inputs.
- Compact Form Factor - Small Ø10 x 145mm body for easy stand mounting or permanent installation.
Technical Specifications
| Specification | Value |
|---|---|
| Element Type | Back Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20Hz to 20kHz |
| Impedance | 250 Ohm +/-30% at 1kHz |
| Operating Voltage | 9-52V DC Phantom |
| Sensitivity | -63dB +/-3dB |
| Dimensions | Diameter 10mm x Length 145mm |
