DBX PB-48 48-point 1/4 inch TRS Balanced Patchbay - DBXPB48V
Product Overview

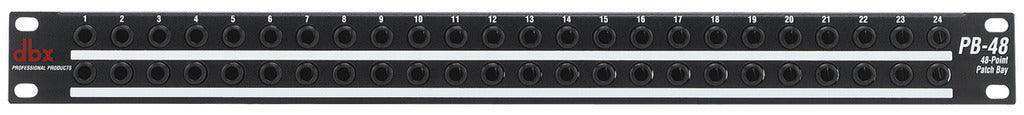

The DBX PB-48 is a 48-point 1/4" TRS balanced patchbay designed for studio, live sound, and installed AV environments where reliable signal routing and reduced connector wear are priorities. Available in half-normalled or de-normalled configurations, the PB-48 provides 48 front-panel TRS jacks connected to 48 corresponding rear jacks in a single rack unit, giving engineers fast and precise access to every signal path in the system.
Product Description
A professional patchbay is an essential component of any well-organized audio installation, and the DBX PB-48 delivers the reliability and noise-free performance that studio and live sound engineers expect. The half-normalled configuration allows signal to pass between rear jacks automatically when no patch cable is inserted on the front, maintaining default signal routing without additional cables. De-normalled operation isolates all connections, requiring explicit patching for every signal path - useful in flexible recording environments where routing changes frequently. The 48-point format fits in a single rack unit, providing a full complement of routing points without consuming excessive rack space. Front panel access reduces wear on expensive equipment jacks, extending the service life of consoles, outboard gear, and interfaces. The PB-48 is available from Creation Networks for studio and installation applications.
Key Features

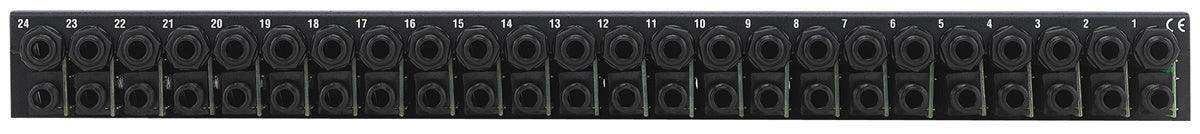

- 48-Point TRS Format - 48 balanced 1/4" TRS jacks on front panel, 48 corresponding jacks on rear.
- Half-Normalled or De-Normalled - Available in both configurations to suit different studio routing needs.
- Single Rack Unit - Provides full 48-point coverage in a compact 1U form factor.
- Noise-Free Signal Path - Designed for clean, quiet operation without signal degradation.
- Reduces Equipment Wear - Front-panel patching extends the life of jacks on consoles and outboard gear.
- Rugged Construction - Built for reliable performance in permanent installation and studio environments.
- Versatile Application - Suitable for studio recording, live sound, and fixed AV installations.
Technical Specifications
| Specification | Value |
|---|---|
| Patch Points (Front) | 48 x 1/4" TRS |
| Patch Points (Rear) | 48 x 1/4" TRS |
| Configuration | Half-normalled or de-normalled |
| Format | 1U rack mount |
