DBX DJDI 2-channel Passive Direct Box - DBXDJDI

Product Overview

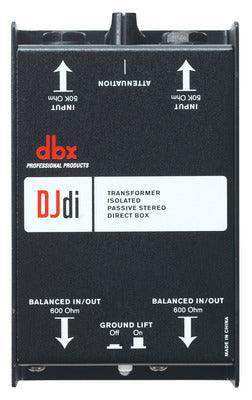

The DBX DJDI is a 2-channel passive direct box designed for DJ and stereo source applications, converting two unbalanced 1/4" TS signals to two balanced XLR outputs for connection to mixing consoles, PA systems, and installed sound systems. The DJDI passive direct injection box provides transformer isolation, RF filtering, and ground loop rejection in a compact, power-free enclosure that handles the typical signal levels of DJ mixers, media players, and consumer audio equipment.

Product Description

DJ setups and consumer media sources present a specific DI challenge: stereo signals at consumer or prosumer levels that need to reach professional balanced inputs without introducing ground loops or hum from the DJ booth. The DBX DJDI addresses this with two completely independent passive direct box channels sharing a single enclosure. Each channel uses a transformer-isolated, RF-filtered signal path, converting the unbalanced 1/4" TS input to a balanced male XLR output. The 50k Ohm input impedance and 600 Ohm output impedance are matched for the output stages of DJ mixers and the input stages of professional mixing consoles. The passive design means no batteries or power supplies are required - the transformer handles impedance conversion and isolation. The DJDI is a reliable, straightforward two-channel DI solution available at Creation Networks.

Key Features

• 2-Channel Passive Design - Two independent transformer-isolated DI channels with no power requirement.

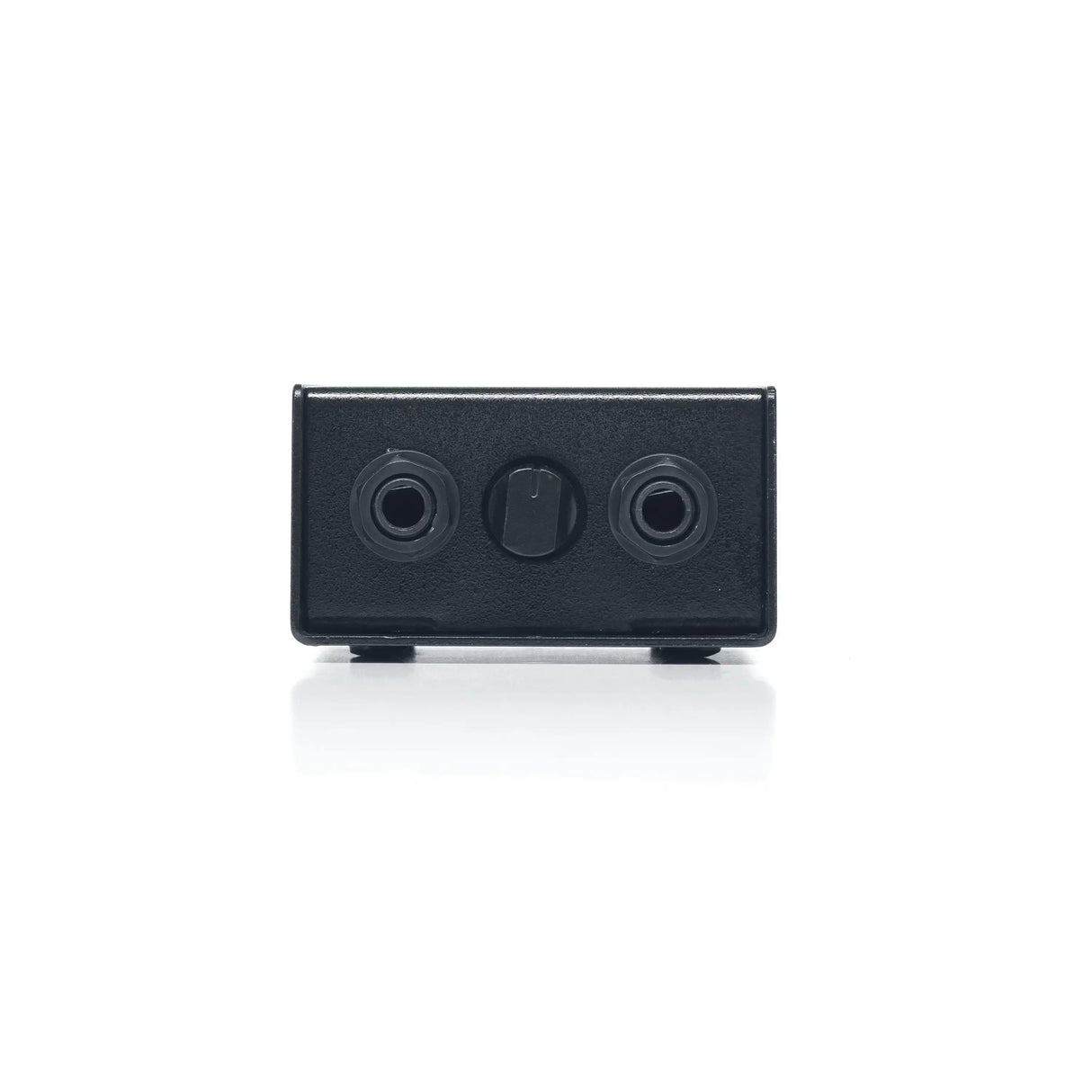

• RF Filtered Inputs - Unbalanced 1/4" TS inputs with RF filtering to suppress interference from wireless devices.
• Transformer Isolation - Provides galvanic isolation to break ground loops between DJ and PA systems.

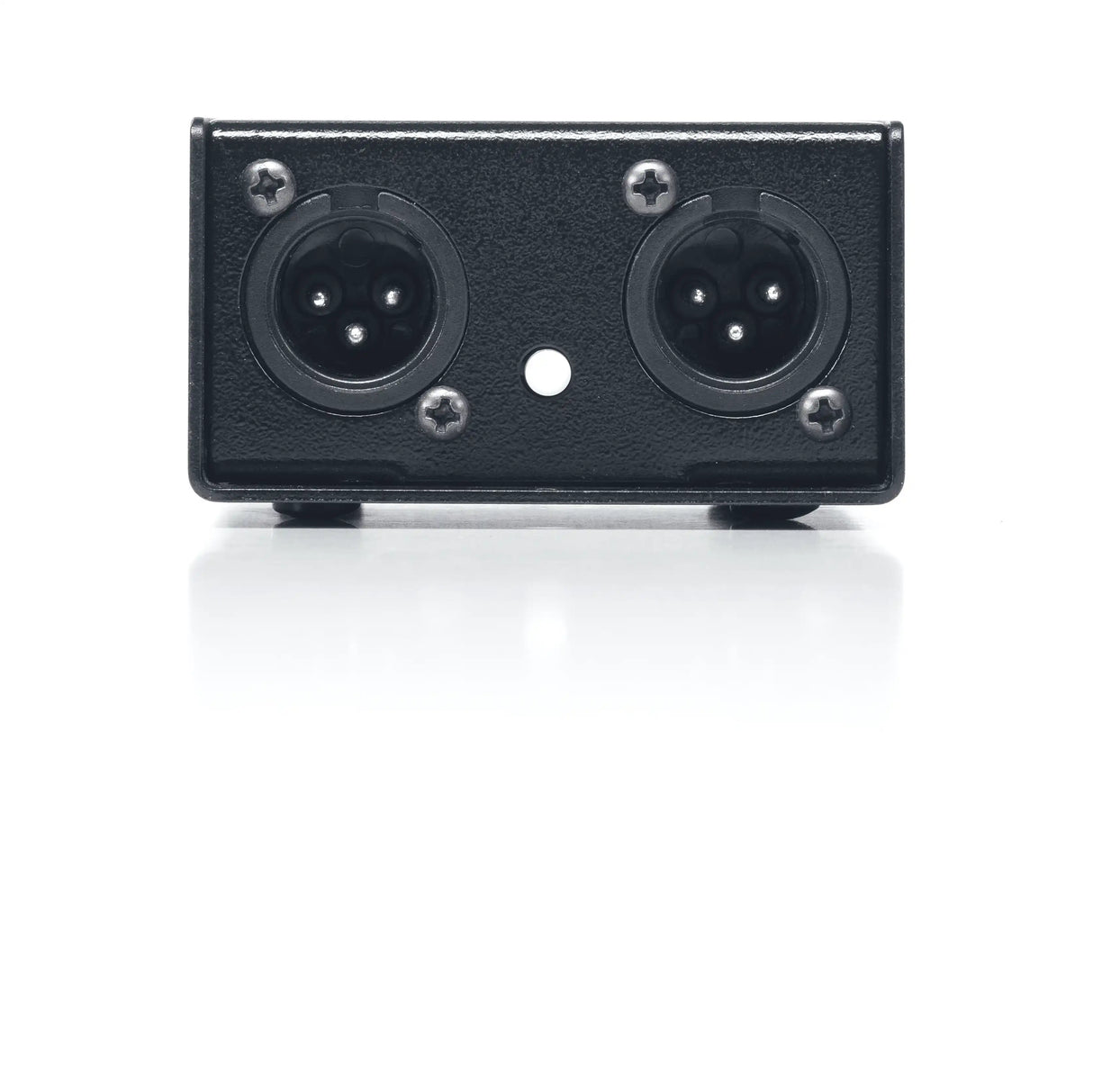

• Balanced XLR Outputs - Male XLR Pin 2 hot balanced outputs for professional console connections.
• DJ-Optimized Impedance - 50k Ohm input and 600 Ohm output matched for DJ mixer to console connection.
• Compact Enclosure - Two-channel DI in a single small unit for easy stage or booth placement.
• No Power Required - Fully passive; no battery or phantom power needed.
