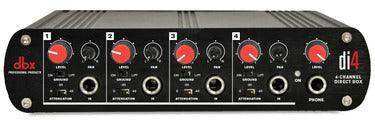

DBX DI4 Active 4 Channel Direct Box with Line Mixer - DBXDI4

Product Overview

The DBX DI4 is a 4-channel active direct box and stereo line mixer in a half-rack unit, built for keyboard players, multi-instrument rigs, and live sound engineers who need to convert multiple unbalanced instrument or line-level signals to balanced XLR outputs for front-of-house consoles, PA systems, and recording desks. Each channel operates independently with its own 20dB pad and ground lift switch, and the integrated stereo line mixer allows performers to set their own monitor mix.

Product Description

The DBX DI4 solves a common live sound problem: a keyboard player or multi-instrument setup requires four independent direct injection channels plus stage monitoring, all from a single half-rack unit. Each of the four channels accepts a 1/4" TS unbalanced input, applies the appropriate level and ground configuration, and delivers a balanced XLR output to the stage box for the front-of-house engineer. Simultaneously, each channel feeds the internal stereo line mixer, where independent volume and pan controls allow the performer to create a custom stage mix. The master volume control sets the overall level of the stereo line mix output, which appears on rear-panel RCA connectors for connection to stage monitors or in-ear monitor systems. The headphone output on the front panel enables direct monitoring without additional equipment. Available at Creation Networks for touring and installed live sound applications.

Key Features

• Four Independent DI Channels - Four completely independent direct box channels in a half-rack package.
• Independent 20dB Pad Per Channel - Accommodates instrument and line level signals on each channel individually.
• Independent Ground Lift Per Channel - Eliminates ground loop hum on a per-channel basis without affecting other inputs.
• Stereo Line Mixer Function - Mix all four channels to a stereo pair with individual volume and pan controls per channel.
• Master Volume Control - Sets overall output level of the stereo line mix.
• Headphone Output - Front-panel 1/4" headphone jack for direct performer monitoring.
• RCA Stereo Line Mixer Outputs - Rear-panel RCA outputs feed monitors or in-ear systems from the line mix.
• Balanced XLR Outputs - Four independent balanced XLR outputs for front-of-house connection.
• Half-Rack Form Factor - Installs in a standard rack alongside other half-rack gear.
