DBX DI1 Active Direct Box - DBXDI1
Roll over image to zoom in Click on image to zoom
DBX DI1 Active Direct Box - DBXDI1
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

DBX DI1 Active Direct Box - DBXDI1

Save 19%
DBX SKU: DBXDI1
No reviews
Price:
$149.00 $182.88

Description

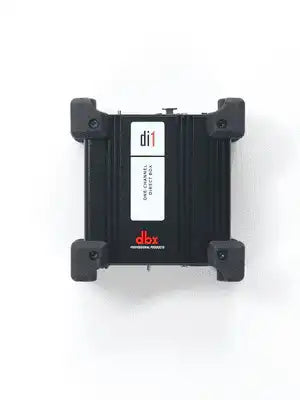

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.

Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.

Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.

  • Level and impedance matching function
  • Output impedance: > 600 Ohms
  • Signal pass through connector
  • Output connector: XLR balanced
  • Battery LED indicator
  • Distortion: (THD) < 0.005% at 1kHz, 0dBu
  • Phantom power LED indicator
  • Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Output Noise: <-100dB unweighted
  • TS and XLR inputs and outputs
  • Frequency response: 10Hz to 70kHz, +0dB/-3dB
  • Attenuation control
  • Phantom Power: +18 volts DC to +48 volts DC
  • Ground lift switch
  • Main/Standby: 9V battery
  • Input Impedance: >250k Ohm
  • Metal Chassis
Input Impedance > 250k Ohm
Max Input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Connectors Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground
Output Impedance > 600 Ohms
Output Connectors XLR balanced
Distortion (THD) < 0.005% at 1kHz, 0dBu
Output Noise <-100dB unweighted
Frequency Response 10Hz to 70kHz, +0dB/-3dB
Main/Standby 9 Volt battery
Phantom Power +18 Volts DC to +48 Volts DC

At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.

  • Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
  • We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
