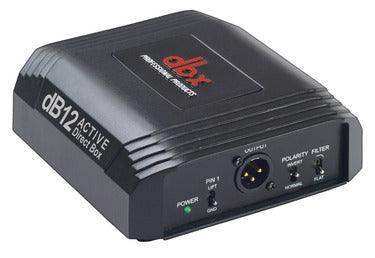

DBX dB12 Active Direct Box - DBXDB12V

Product Overview

The DBX dB12 active direct box uses a custom mu-metal-shielded transformer, phantom-powered low-noise active circuitry, and gold-plated Neutrik XLR connectors to deliver clean, interference-free direct injection for guitars, keyboards, and line-level sources in live sound and studio recording. Its cast metal chassis and stackable design make it well-suited for both permanent AV installation and touring use.

Product Description

The DBX dB12 is an active transformer-isolated direct box with a comprehensive set of controls for matching any signal source to a balanced XLR output. The 3-way pad switch (0/20/40 dB) handles instrument, line, and speaker level inputs up to +60dBu, making the dB12 usable even when connected directly to a power amplifier output. The polarity invert switch adjusts the phase relationship between the direct signal and a mic'd source, which is useful when blending a DI track with a microphone on a speaker cabinet. The high-cut filter switch removes excessive high-frequency content that can cause harshness when recording direct. Dual shielding from the cast metal chassis and the custom-wound mu-metal transformer ensures the signal path remains clean even in electrically noisy environments. The unique contoured underside allows secure stacking of multiple units on stage or in a road case. Available at Creation Networks.

Key Features

• Phantom-Powered Active Circuitry - +48V phantom operation with green LED indicator for confirmed power status.
• Custom dbx Mu-Metal Transformer - Provides transformer isolation with premium shielding against EMI and hum.
• Gold-Plated Neutrik XLR Connector - Corrosion-resistant balanced output for reliable long-term connection.
• 3-Way Pad Switch (0/20/40 dB) - Accommodates instrument, line, and speaker level signals up to +60dBu.
• Polarity Invert Switch - Adjusts phase relationship for blending direct and mic'd signals.
• High-Cut Filter Switch - Flat or high-cut response for controlling direct signal brightness.
• Ground Lift Switch - Eliminates hum from ground loops in complex audio systems.
• Hi-Z 1/4" Input Jack with Parallel Thru - Maintains amp feed while sending balanced signal to console.
• Stackable Chassis with Rubber Foot - Contoured underside allows stable stacking of multiple units.
• 4-Year Warranty - Manufacturer warranty covering defects in materials and workmanship.
