DBX CT3 Advanced Cable Tester - DBXCT3
DBX CT3 Advanced Cable Tester - DBXCT3 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
DBX CT3 Advanced Cable Tester - DBXCT3
Product Overview

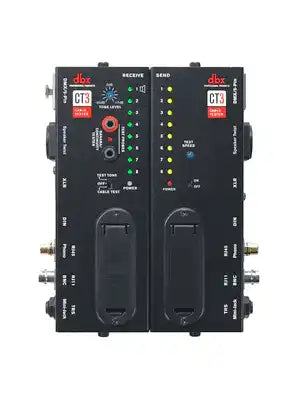

The DBX CT3 advanced cable tester is the most capable diagnostic tool in the dbx accessory lineup, designed for audio technicians and live sound professionals who need to verify every connector type on the rig. Supporting cables up to 8 pins, the CT3 splits into two independent units - a SENDER and RECEIVER - so installed cables and long cable runs can be tested in-place without pulling them from the rack. Its multi-connector design covers XLR, TRS, TS, RJ45, RJ11, MIDI, Speaker Twist, BNC, RCA Phono, DMX, DIN, and Banana, making it the only cable tester a working AV installation or live sound engineer needs.
Product Description
Cable faults are among the most common causes of signal loss, ground hum, and troubleshooting delays in professional audio environments. The DBX CT3 cable tester addresses this directly with a two-piece chassis that allows one half to remain connected at a distant panel or stage box while the other half is used at the source, enabling pin-to-pin continuity testing of pre-installed infrastructure cable. The integrated Test Tone Generator adds a further dimension to diagnostic capability, allowing engineers to confirm signal flow beyond simple continuity. The banana connector continuity tester includes a beeper and LED indicator for fast, tactile confirmation. Compatible with cross-format cable testing - for example, testing a TRS-to-XLR adapter cable - the CT3 handles the mixed-connector scenarios that simpler testers cannot accommodate. Available at Creation Networks, this is the go-to cable diagnostic unit for installed AV, touring, and studio applications.
Key Features
- Two-Piece Chassis - Splits into SENDER and RECEIVER for testing installed and long-run cables without removal.
- Tests Up to 8-Pin Cables - Covers the full range of professional audio connector types including XLR, TRS, TS, MIDI, DMX, and more.
- Test Tone Generator - Confirms signal flow through a cable, beyond simple wire continuity.
- Cross-Connector Testing - Test cables with different connector types at each end, such as TRS to XLR.
- Banana Continuity Tester - Includes audible beeper and LED indicator for fast pass/fail results.
- RJ45 Support - Tests 8P8C modular network/AV cables up to 8 pins.

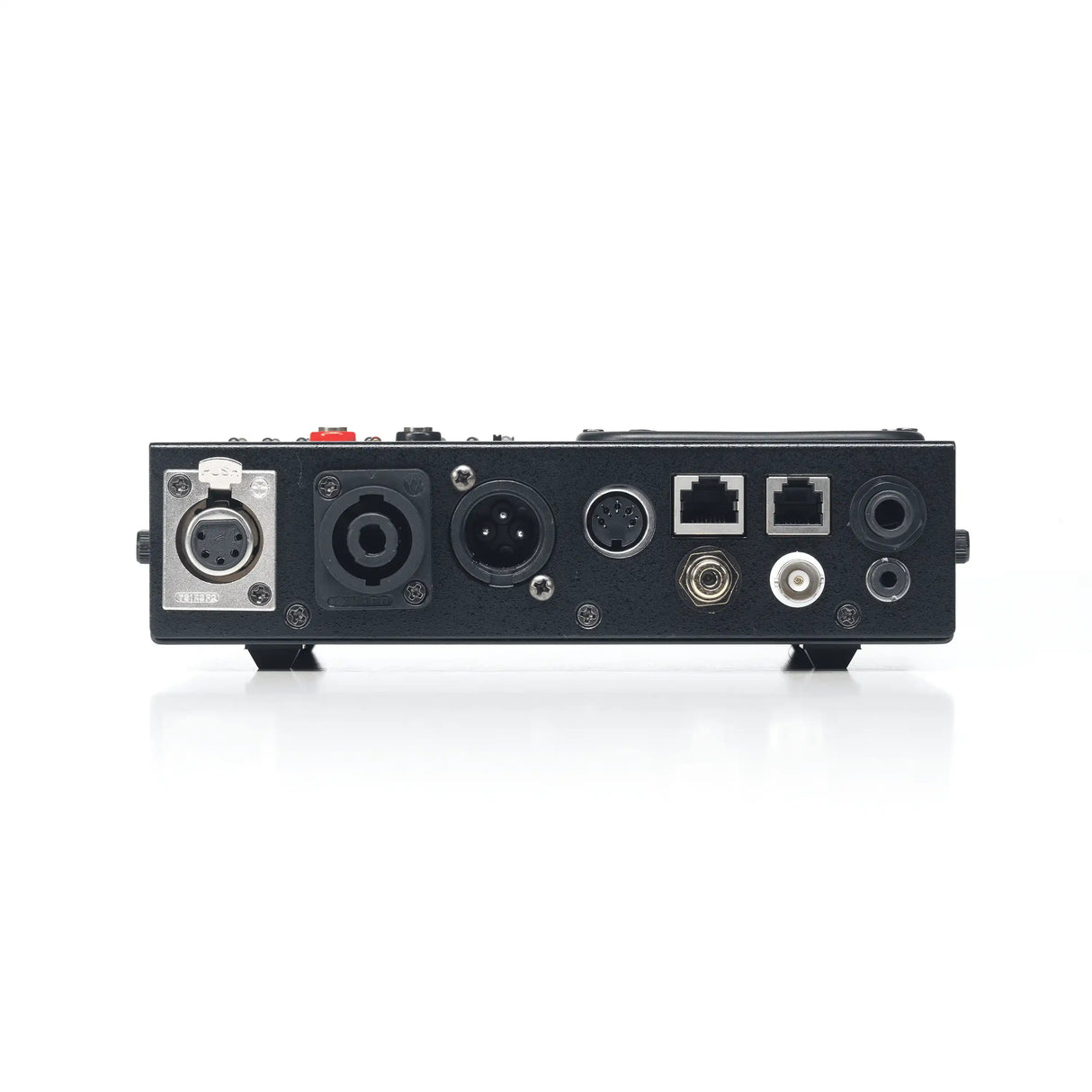

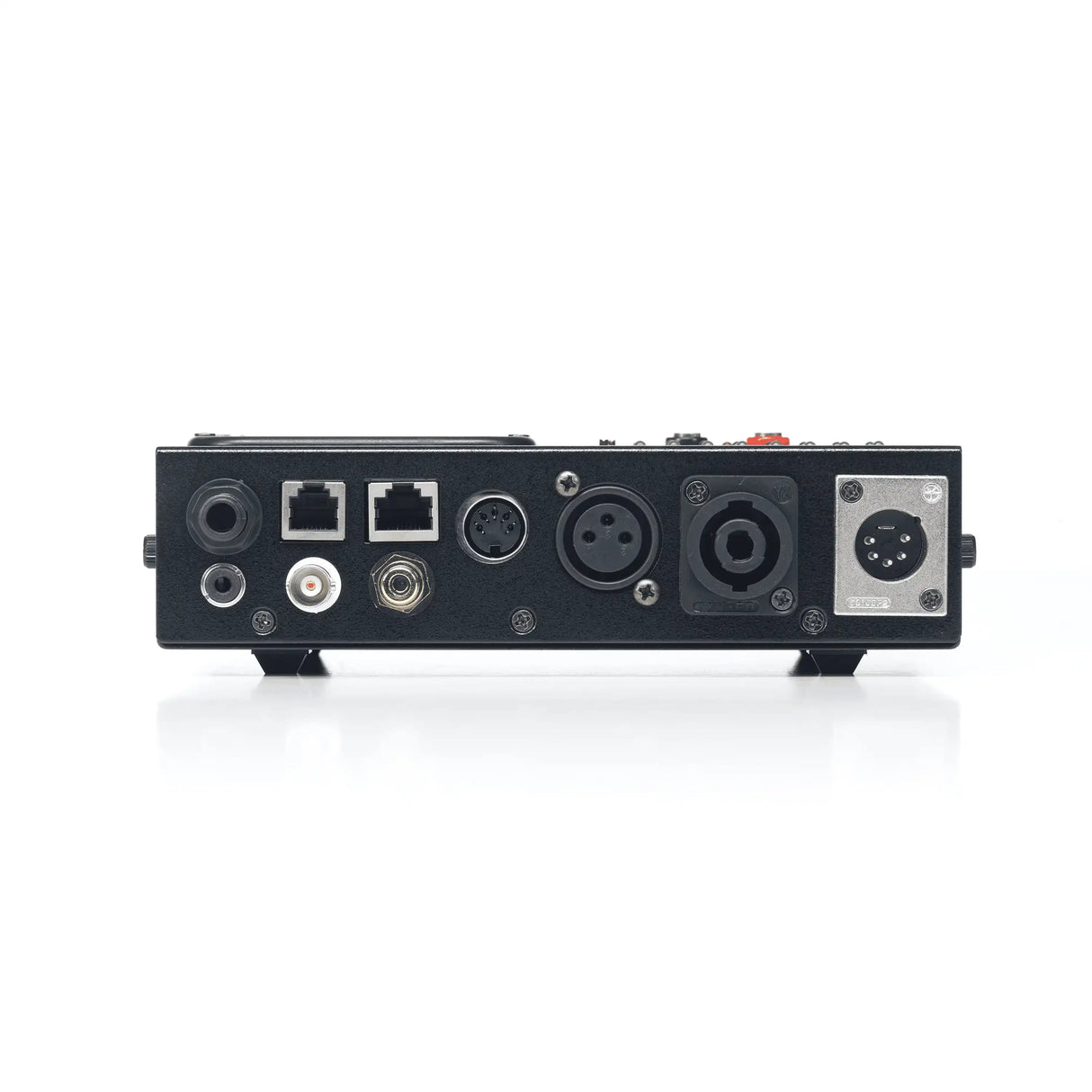

- Comprehensive Connector Set - Includes XLR, TRS/TS, BNC, RCA Phono, MIDI, DMX, Speaker Twist, RJ11, and Banana connectors.
- Rugged Construction - Built for durability in field and touring conditions.
- Battery Powered - Operates on two 9V batteries (one per side) for portable use anywhere on the jobsite.
Technical Specifications
| Specification | Value |
|---|---|
| Power Requirements | (2) 9V batteries, one per side (batteries not included) |
| Dimensions | 3.5" (8.9cm) W x 5.5" (14cm) L x 1.5" (3.7cm) H |
| Max Pins Tested | 8 pins |
