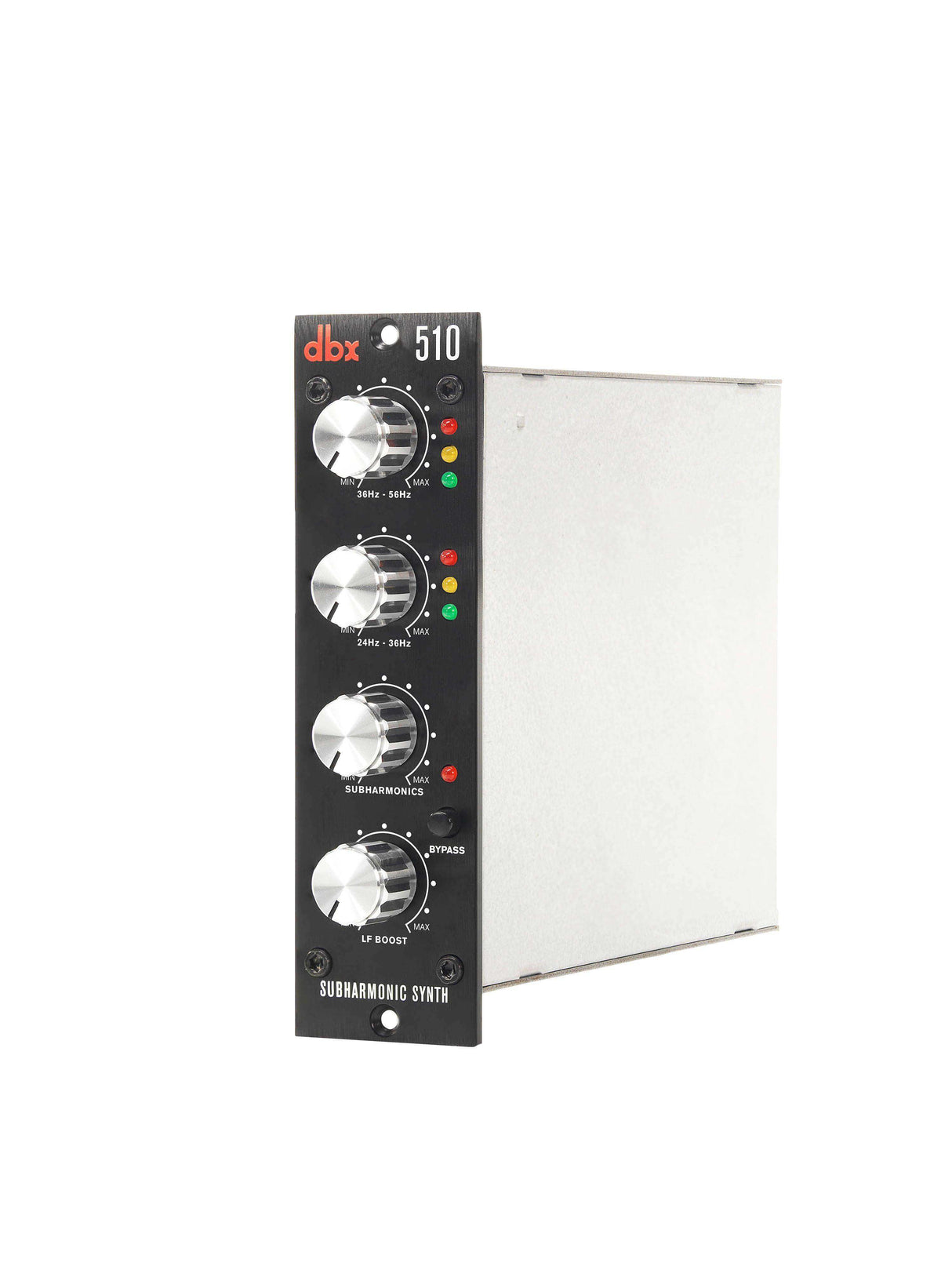

DBX 510 Subharmonic Synthesizer - 500 Series - DBX510

Product Overview

The DBX 510 is a 500-series subharmonic synthesizer that generates synthetic sub-bass content one and two octaves below the fundamental frequencies present in the input signal, providing controllable low-frequency enhancement for music production, DJ monitoring, sound reinforcement, and broadcast applications in a single module slot. Based on dbx's patented subharmonic synthesis technology, the 510 analyzes the input signal and generates new sub-bass content at 24-80 Hz and 36-56 Hz simultaneously, adding low-frequency weight and impact to program material that lacks it without requiring physical acoustic space to generate the effect. Independent level controls for each synthesized sub-bass band allow precise management of the enhancement.

Product Description

The DBX 510 subharmonic synthesizer processes incoming audio and generates two independent bands of synthesized sub-bass content: one band operating from 24 Hz to 80 Hz (Sub Harmonics) and a second band from 36 Hz to 56 Hz (Sub 2), with independent level controls for each band. The Sub Harmonics control generates content one octave below the fundamental frequencies detected in the input signal, while the Sub 2 control generates content at approximately one and a half to two octaves below the detected fundamentals, creating a layered sub-bass enhancement that adds both low-mid warmth and deep sub-bass impact depending on the level relationship between the two controls.

Unlike a subwoofer crossover or a low-shelf equalizer, the 510 synthesizes new frequency content that was never present in the original recording, allowing the engineer to add sub-bass impact to music tracks, DJ mixes, and broadcast content that were mixed with insufficient low-frequency energy for the playback system in use. The synthesis process analyzes the fundamental frequencies present in the signal and generates harmonically related sub-bass content, maintaining musical relationships between the synthesized content and the original signal.

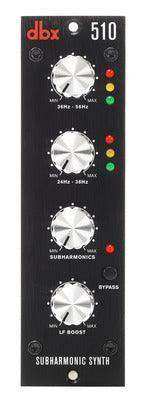

A front panel output level LED provides signal presence confirmation, and an in/out switch allows instant before/after comparison of the synthesis effect. The 510 operates on +/-16V DC from any standard 500-series power frame and draws only 1.6 watts. Available at Creation Networks for music production, DJ systems, sound reinforcement, and broadcast low-frequency enhancement.

Key Features

• Two Independent Sub-Bass Synthesis Bands — Sub Harmonics (24-80 Hz) and Sub 2 (36-56 Hz) provide layered low-frequency enhancement with independent level controls.
• dbx Patented Subharmonic Synthesis — Generates new sub-bass content harmonically related to the original signal rather than simply boosting existing frequencies.
• Adds Frequencies Not Present in the Source — Synthesizes sub-bass energy that was absent from the original recording or mix, not achievable with conventional EQ.
• Independent Level Controls Per Band — Separate controls for each synthesized band allow precise shaping of the sub-bass enhancement character.
• In/Out Comparison Switch — Instant bypass for before/after evaluation of the synthesis effect.
• Single-Slot 500-Series Format — Fits any standard 500-series compatible power frame; draws only 1.6 watts.

Technical Specifications
