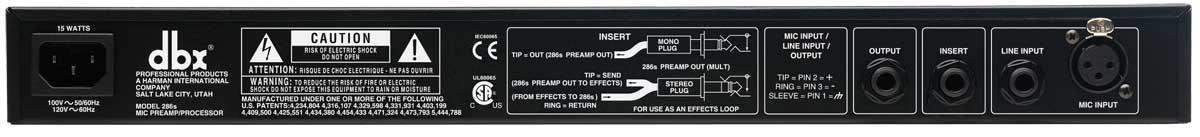

| Mic Preamp Connector |
XLR Floating balanced, Pin 2 Hot |
| Mic Preamp Input Impedance |
~4.2kΩ |
| Mic Preamp gain |
0dB to +60dB |
| Mic Preamp Phantom Power |
+48VDC, applied to XLR pins 2 and 3 through 6.81kΩ resistors |
| CMRR |
>40dB, typically 55dB |
| Mic Preamp max input level |
0.2Vrms, Gain = 30dB |
| Mic Preamp Equivalent Input Noise (EIN) |
-125dBu, 22Hz-22kHz, 150Ω source impedance |
| Input Connectors |
(line) Floating balanced, TIP Hot |
| Input Impedance |
(line) 10kΩ unbalanced, 20kΩ balanced |
| Max Input |
(line) >+21dBu, balanced or unbalanced |
| Input Gain Range |
(line) -15dB to +45 dB |
| Insert Connector |
1/4" TRS: Normalled; tip is Send, ring is Return |
| Insert Impedance |
>5kΩ (ring-return); 100Ω (tip-send) |
| Insert Max Level |
>+21dBu; >+20dBm (600Ω load-tip) |
| Insert Noise |
<-84dBu, unweighted (20Hz-20kHz); LINE GAIN Control set to 0dB |
| Insert Distortion |
<0.01% THD, 20Hz-20kHz, +10dBu |
| Output Connectors |
1/4" Balanced/Unbalanced TRS Connectors |
| Output Impedance |
100Ω unbalanced, 200Ω balanced |
| Max Output |
>+21dBu, >+20dBm (600Ω load) |
| Gain Adjustment Range |
-30dB to +10dB |
| Noise |
<-80dBu unweighted (20Hz-20kHz); Both Gain Controls set for 0dB, all processing controls OFF |
| Frequency Response |
20Hz to 20kHz, +0.5, -0.5dB |
| THD |
<0.08%THD, 20Hz-20kHz, +10dBu, all Processing Controls OFF |
| Compressor Threshold Range |
-40dBu to +20dBu |
| Compressor Threshold Characteristic |
OverEasy® |
| Compressor Ratio |
>4:1 For input levels beyond 20dB above threshold |
| Max Compression |
30dB |
| Compressor Attack Time |
Program-Dependent; >1s for small level increases, down to 10ms for larage increases |
| Compressor Release Time |
Program-Dependent; adjustable between approximately 1dB/sec and 75dB/sec |
| Compressor Distortion |
Typically <0.05%THD, 20Hz-20kHz, 15dB G/R, +10dBu Output, DENSITY @ 0 |
| IMD |
SMPTE: <0.05%; 60Hz/7kHz 4:1, 15dB G/R, +10dBu Output Level, DENSITY @ 0 |
| De-esser Characteristic |
Wideband Gain Reduction |
| De-esser Frequency Range |
800Hz to 10kHz High Pass, 12dB/octave |
| De-esser Release Time |
12dB/octave Program-Dependent; approximately 1mS/dB |
| Enhancer HF Detail Characteristic |
Program-controlled shelving equalizer, approximately 15dB maximum HF boost |
| Enhancer LF Detail Characteristic |
Bell-shaped boost @ 80Hz, bell-shaped cut @250Hz, ratio is approximately 2:1 |
| Expander/Gate Threshold Range |
OFF to +15dBu |
| Expander/Gate Ratio |
Adjustable 1.5:1 to 10:1 |
| Expander/Gate Max Depth |
>50dB |
| Expander/Gate Attack Time |
Program-Dependent, approximately 2mS (at maximum attenuation) |
| Expander/Gate Release Time |
Program-Dependent, approxiamtely 10mS/dB |
| Expander/Gate Dynamic Range |
Typically 105dB |
| Power Consumption |
15W |
| Operating Voltage |
DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Dimensions |
1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm) |
| Unit Weight |
4.5 lbs/2.04 Kgs |
| Shipping Weight |
6.54 lbs/2.97 Kgs |
