DBX 1261 – 12x6 Zone Processor with Ethernet Control

Product Overview

The DBX ZonePRO 1261 is a 12-input, 6-output commercial-grade rack-mount digital zone processor with Ethernet control, designed for large-scale multi-zone audio distribution in permanent installations. Purpose-built for boardrooms, conference rooms, and houses of worship, the 1261 delivers advanced DSP processing — including Advanced Feedback Suppression (AFS), AutoWarmth, parametric EQ, compressor, noise gate, and source ducking — alongside RS-232 and Ethernet connectivity for integration into commercial building control systems. As part of the dbx ZonePRO family, the 1261 shares the same 12x6 signal processing architecture as the 1260 with distinct front-panel layout and connectivity options suited to specific installation contexts.

Product Description

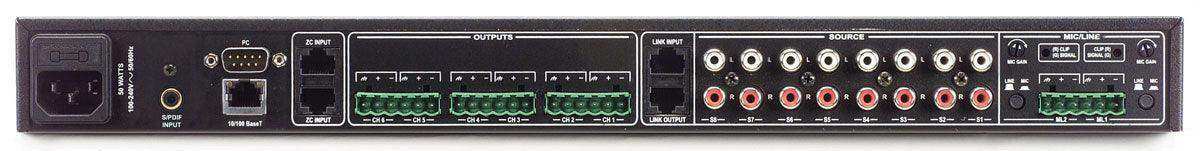

The 1261 accepts 12 inputs distributed across two switchable mic/line Euroblock inputs, eight unbalanced RCA source inputs, and one S/PDIF digital input. The two mic/line inputs feed a built-in preamp with 30–60 dB of gain range, 15V phantom power, and an equivalent input noise below -118 dB — covering paging microphones, condenser announcement systems, and line-level sources in the same commercial audio zone processor installation. Eight RCA inputs handle background music sources such as streaming players, satellite tuners, and consumer AV equipment without additional level converters.

The routing matrix provides primary source selection across all inputs and outputs, source ducking for paging priority, and a built-in real-time clock for time-of-day scheduling. Output processing per zone includes AutoWarmth psychoacoustic bass extension, parametric EQ, bandpass and crossover filters, output limiting, and adjustable delay for loudspeaker alignment in non-symmetrical spaces. The dbx Type IV conversion system achieves greater than 119 dB A-weighted dynamic range, and interchannel crosstalk exceeds 80 dB typical across all output zones.

ZonePRO Designer software provides Wizard-driven configuration for fast commissioning, supporting connection via Ethernet or RS-232. The analog input bus allows multiple ZonePRO units to share sources, enabling scalable multi-zone audio distribution systems across large facilities. Wall panel Zone Controllers (dbx ZC series) provide occupant-level source selection and volume control at each zone location.

Key Features

• 12 Inputs / 6 Outputs — Two switchable mic/line Euroblock inputs, eight RCA source inputs, and one S/PDIF digital input feed six balanced analog output zones.
• Advanced Feedback Suppression (AFS) — Automatically notch-filters feedback frequencies on mic inputs, protecting public address and paging channels in auditoriums and all-hands rooms.
• AutoWarmth per Output Zone — Co-developed with JBL, this psychoacoustic function maintains natural bass response at any volume level in each zone.
• Parametric EQ and Crossover Filters — Per-input and per-output parametric EQ, bandpass, and crossover filters enable precise acoustic tuning for each loudspeaker system.
• Source Ducking and Priority Override — Automatic background music attenuation when paging is activated ensures speech intelligibility across all zones.
• Real-Time Clock Scheduling — Programmable time-of-day events automate system state changes without operator intervention.
• Ethernet Control — Network-accessible control supports remote commissioning, monitoring, and third-party integration with AMX and Crestron systems.
• RS-232 Control — Serial control provides a secondary control path compatible with legacy and custom control systems.
• Analog Input Bus — Links multiple ZonePRO units for scalable multi-zone audio distribution without duplicating source cabling.
• dbx Type IV Conversion — Greater than 119 dB A-weighted dynamic range and 0.003% THD+N typical maintain signal transparency.
• Security Lockout — Prevents unauthorized front-panel access in permanently installed commercial spaces.
• UL/IEC/EN Certified — Meets UL 60065, IEC 60065, and EN 55013 for commercial installation compliance.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Government space
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the DBX 1260 and the DBX 1261?

The 1260 and 1261 share the same 12x6 digital zone processor architecture and DSP toolset. They differ in front-panel layout and specific I/O routing options. Both support Ethernet, RS-232, and the full range of dbx ZC wall panel Zone Controllers.

Q: Does the DBX 1261 support Crestron or AMX control systems?

Yes. The 1261 supports RS-232 and Ethernet control. Native Crestron and AMX control modules are available as free downloads from dbxpro.com, along with a ZonePro Protocol Guide for custom control system integration.

Q: How many independent audio zones does the 1261 support?

The 1261 provides 6 independent output zones. For larger facilities, the analog input bus allows multiple ZonePRO units to share sources and expand the total number of zones without duplicating source cabling.

Q: Can the 1261 handle microphone inputs for paging?

Yes. Two switchable mic/line inputs include a full preamp with 30–60 dB of gain, 15V phantom power, Advanced Feedback Suppression, Auto Gain Control, compression, de-essing, and noise gating — providing complete paging mic processing in a single rack space.

Q: What is AutoWarmth and why does it matter in commercial spaces?

AutoWarmth is a psychoacoustic function co-developed by dbx and JBL that compensates for the natural reduction in perceived bass at lower listening levels. In commercial spaces where background music plays at low volumes throughout the day, AutoWarmth maintains tonal consistency without operator adjustment.

Q: Where can I purchase the DBX 1261?

The DBX ZonePRO 1261 is available at creationnetworks.net with pre-sales technical support from commercial AV specialists.
