DBX 1260m – 12x6 Zone Processor with LCD and Link Bus

Product Overview

The DBX ZonePRO 1260m is a 12-input, 6-output rack-mount digital zone processor built for permanent commercial audio installations that require pre-configured architecture, front-panel metering, and expandability via a link bus. As the meter-equipped variant in the ZonePRO 12x6 family, the 1260m adds six-segment lightpipe output meters, an informative LCD display, and 9 user-assignable front-panel controls — making it the preferred dbx zone processor for conference rooms, commercial meeting spaces, and multi-zone facilities where on-site technicians need at-a-glance system visibility. The unit is managed through ZonePRO Designer software via Ethernet or RS-232 and supports third-party control from AMX and Crestron systems.

Product Description

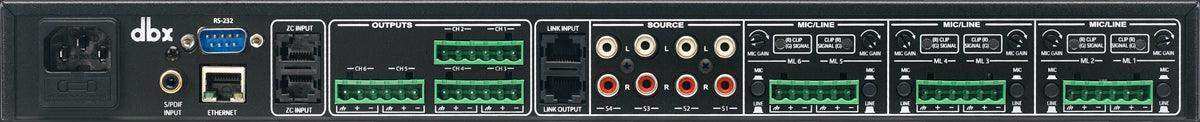

The 1260m accepts 12 inputs: six balanced mic/line switchable Euroblock terminal block inputs with hardware-controlled preamp gain per channel, four mono-summed pairs of unbalanced RCA source inputs, and one S/PDIF input for up to two digital channels. The pre-configured signal architecture routes audio through input processing, a central mixing matrix, and output processing in a fixed path — simplifying commissioning compared to fully open-architecture processors while still providing two configurable input insert positions and one output insert position for channel-specific DSP modules.

Each of the six output zones includes dbx AutoWarmth — a psychoacoustic function that maintains full low-frequency bandwidth at reduced listening levels — along with zone-level EQ, dynamics, and delay. The link bus allows the first six audio channels to be duplicated to a second ZonePRO unit, enabling scalable multi-zone commercial audio distribution without additional source cabling. The front-panel LCD reports source selection, page steering, zone volume, and mute status in real time, while six independent lightpipe meters cover the full -30 to +20 dBu operating range.

Control options include Ethernet, RS-232 serial, and the full range of optional dbx ZC wall-panel Zone Controllers for occupant-level source and volume management. ZonePRO Designer's Configuration Wizard steps integrators through every parameter in a guided workflow. The mic preamp delivers 30–60 dB of gain with a noise floor below -118 dBu and 15V phantom power, supporting condenser paging microphones in any commercial audio zone.

Key Features

• 12 Inputs / 6 Outputs — Six balanced mic/line Euroblock inputs, four unbalanced mono-summed RCA pairs, and one S/PDIF input feed six balanced output zones.
• Hardware Mic Gain Control — Per-channel hardware-adjusted microphone preamp gain simplifies setup in installations with varying microphone sensitivity requirements.
• Front Panel LCD and Metering — Six-segment lightpipe output meters (-30 to +20 dBu) and an LCD displaying source selection, zone volume, and mute status provide real-time visibility.
• 9 User-Specified Front Panel Controls — Assignable controls allow on-site technicians to adjust common parameters without launching software.
• AutoWarmth per Output Zone — Psychoacoustic low-frequency compensation maintains natural tonal balance at low listening levels in every zone.
• Link Bus for System Expansion — Duplicates the first six audio channels to a second ZonePRO device, supporting larger multi-zone installations without additional source runs.
• Pre-Configured Architecture with Insert Positions — Fixed signal flow with two input and one output configurable insert positions balances ease of commissioning with DSP flexibility.
• Ethernet and RS-232 Control — Network control enables remote access and third-party integration with AMX and Crestron systems.
• Optional ZC Wall Panel Controllers — Compatible with the full dbx ZC series for occupant-level volume and source selection at each zone.
• Wizard-Driven Configuration — ZonePRO Designer's step-by-step Configuration Wizard accelerates commissioning for AV integrators.
• dbx Type IV Conversion — Greater than 119 dB A-weighted dynamic range preserves signal integrity across all connected zones.
• UL/IEC/EN Certified — Meets UL 60065, IEC 60065, and EN 55013 for commercial installation compliance.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Government space
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: What distinguishes the DBX 1260m from the DBX 1260?

The 1260m adds front-panel LCD metering, six-segment lightpipe output level meters, 9 user-assignable front-panel controls, hardware-adjusted mic preamp gain per channel, and a link bus for system expansion. The 1260 uses a more open architecture without front-panel metering, making it better suited to rack-only deployments managed entirely through software.

Q: How does the link bus work on the 1260m?

The link bus duplicates the first six audio channels to a second ZonePRO device. This allows installers to expand from 6 to 12 or more output zones in a single installation without running additional source cables from the head-end.

Q: Can the 1260m be controlled by Crestron or AMX?

Yes. The 1260m supports RS-232 and Ethernet control. DBX provides native Crestron and AMX control modules as free downloads, and a ZonePro Protocol Guide is available for custom integration.

Q: How many wall panel Zone Controllers can connect to the 1260m?

The 1260m is compatible with the full range of dbx ZC wall panel controllers (ZC1 through ZC9). The number of panels supported depends on the ZC type and wiring configuration — consult the ZC Connectivity and Association tech note available from dbxpro.com.

Q: Does the 1260m support digital audio inputs?

Yes. One S/PDIF input accepts up to two channels of digital audio, compatible with digital source playback systems commonly used in commercial meeting spaces and background music applications.

Q: What software is used to program the 1260m?

ZonePRO Designer (free download from dbxpro.com) provides the full configuration interface including the step-by-step Configuration Wizard, scene management, and schedule programming.

Q: Where can I buy the DBX 1260m?

The DBX ZonePRO 1260m is available at creationnetworks.net with pre-sales support from commercial AV specialists.
