Da-Lite FullVision FC9H120X192 226" 16:10 Fixed Frame Screens (HD Progressive 0.9)
Da-Lite FullVision FC9H120X192 226" 16:10 Fixed Frame Screens (HD Progressive 0.9) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite FullVision FC9H120X192 226" 16:10 Fixed Frame Screens ...
Product Overview

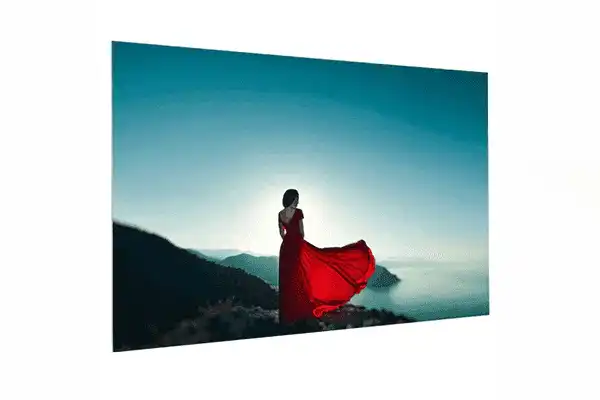

The Da-Lite FullVision FC9H120X192 provides a 226" diagonal WUXGA 16:10 borderless fixed frame projection screen with the HD Progressive 0.9 surface (gain 0.9). The largest FullVision 16:10 size with balanced-gain borderless design for WUXGA projectors. The aluminum frame installs just 1-3/16" off the wall.
Product Description
The Da-Lite FullVision FC9H120X192 delivers a 226" diagonal 16:10 WUXGA borderless fixed frame projection screen with the HD Progressive 0.9 surface. The borderless aluminum frame extends only 1-3/16" from the wall. Screen surface attaches via Velcro to the rear of the frame for field replacement. Standard black backing and seamless surface. Wall mounting uses two screws; ceiling cable suspension is available. The 16:10 aspect ratio eliminates letterboxing for WUXGA projectors. For other surface options at this size see FC6H120X192, FC11H120X192, FC11C120X192, FC13H120X192 at creationnetworks.net.
Key Features
- Borderless Frame Design — No visible frame border; screen blends with the wall when the projector is off.
- HD Progressive 0.9 Surface — Balanced gain for flagship large-venue WUXGA environments.
- 16:10 WUXGA Format — Native aspect ratio for WUXGA and WXGA projectors.
- Ultra-Low Profile — Only 1-3/16" from wall to screen surface.
- Velcro Surface Attachment — Field surface replacement without removing the frame.
- Standard Black Backing — Maintains full image contrast.
- Seamless Viewing Surface — No center seam on any model.
Typical Applications
- Flagship auditoriums and large event venues requiring a 226" borderless 16:10 fixed frame screen with WUXGA projectors
- Permanent large-venue AV installations specifying the maximum FullVision 16:10 size
- Convention halls and training centers at 226" specifying WUXGA 16:10 format with balanced-gain surface
- Flagship multi-use venues at 226" requiring seamless borderless surface at maximum size
Technical Specifications
| Specification | Value |
|---|---|
| Model | FC9H120X192 |
| Series | FullVision |
| Screen Type | Fixed Frame (Borderless) |
| Format | 16:10 WUXGA |
| Diagonal Size | 226" |
| Viewable Area (H×W) | 120" × 192" |
| Screen Surface | HD Progressive 0.9 |
| Gain | 0.9 |
| Wall Depth | 1-3/16" off wall |
| Surface Attachment | Velcro to rear of frame |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Why choose 16:10 over 16:9?
A: 16:10 matches WUXGA and WXGA projectors natively, eliminating letterboxing for computer-generated content.
Q: Can the screen surface be replaced without removing the frame?
A: Yes. The surface attaches to the rear of the frame with Velcro.
Q: What other surface options are available at this size?
A: The 226" 16:10 FullVision is also available with HD Progressive 0.6, 1.1, 1.1 Contrast, and 1.3 at creationnetworks.net.
Q: What is the installation method?
A: Two-screw wall mounting or ceiling cable suspension.
