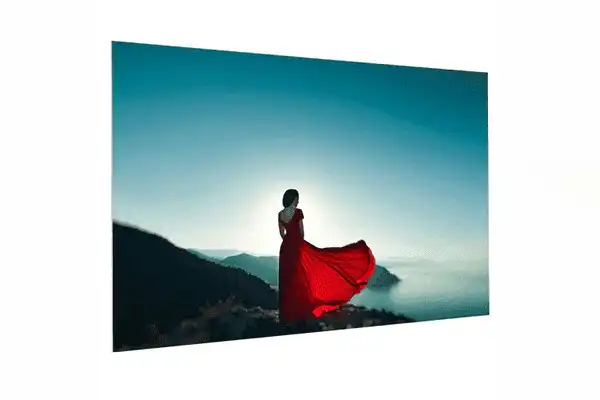

Da-Lite FullVision FC6H110X176 208" 16:10 Fixed Frame Screens (HD Progressive 0.6)

Product Overview

The Da-Lite FullVision is a borderless fixed frame projection screen designed for commercial AV environments where the screen should visually recede when not in use and deliver high-quality projection when active. Available in 16:10 widescreen format from 109" to 226" diagonal, the FullVision FC6H110X176 provides a 208" diagonal viewing surface measuring 110" × 176" — an ideal size for large boardrooms, lecture halls, and corporate training environments. The low-profile aluminum frame installs just 1-3/16" off the wall and supports both wall and ceiling-cable mounting configurations. Its HD Progressive 0.6 surface delivers excellent ambient light rejection and high-contrast imagery optimized for high-lumen 4K and Ultra HD projection.

Product Description

The Da-Lite FullVision borderless fixed frame screen eliminates the traditional frame border, allowing the projection surface to blend seamlessly into the wall. The FC6H110X176 delivers a 110" × 176" 16:10 widescreen viewing area — the native aspect ratio for WUXGA projectors and professional laptop displays — making it well-suited to data-rich presentations, video conferencing, and large-scale visual collaboration. The aluminum frame extends only 1-3/16" from the wall, making it ideal for architecturally sensitive installations where surface projection is desired without a pronounced frame surround. The screen surface attaches to the rear of the frame via Velcro for clean alignment and easy field replacement should the surface need service or upgrading. Standard black backing prevents ambient light bleed-through, maintaining full image contrast on the viewing surface. The seamless surface is free of any center seam across the full 208" diagonal. The HD Progressive 0.6 surface offers gain 0.6 performance with exceptional contrast, specifically engineered for high-lumen projectors in rooms with some ambient lighting. Frame installation requires just two screws in the wall, or the frame may be suspended from ceiling cables in architecturally complex spaces. For ceiling-recessed electric screens in similar sizes, see the Tensioned Advantage and Tensioned Contour series at creationnetworks.net.

Key Features

• Borderless Frame Design — No visible frame border around the viewing surface; the screen blends into the wall surface when the projector is off.
• Ultra-Low Profile — Only 1-3/16" from wall to screen surface, providing a minimal footprint in wall-constrained installations.
• Velcro Surface Attachment — The screen surface attaches to the rear of the frame via Velcro, simplifying surface replacement or service without removing the frame from the wall.
• Lightweight Aluminum Frame — Rigid construction prevents frame bowing; two-screw hanging bracket installation on wall surface.
• Ceiling Cable Suspension Option — Frame can be hung from the ceiling with cables for installations where wall mounting is not feasible.
• Standard Black Backing — Maintains image brightness and contrast by preventing ambient light transmission through the screen material.
• Seamless Viewing Surface — No center seam on any model.
• HD Progressive 0.6 Surface (Gain 0.6) — High-contrast surface optimized for high-lumen 4K and UHD projectors; excellent ambient light rejection ideal for large-venue installations with ambient light present.
• Compatible with Parallax Stratos 1.0 — Contact Creation Networks for Parallax Stratos surface pairing if ambient light rejection is required.

Typical Applications

• Large boardrooms and lecture halls requiring a borderless screen profile
• Data visualization environments where 16:10 format matches WUXGA projector native resolution
• Corporate training facilities needing a large-format, seamless projection surface
• Multi-purpose spaces where the screen integrates visually with the wall when not in use

Technical Specifications

Frequently Asked Questions

Q: How does FullVision differ from Cinema Contour or UTB Contour?

A: The FullVision is borderless — there is no visible frame around the projection area. The Cinema Contour has a wider, more substantial black frame. The UTB Contour has the thinnest bezel of any framed fixed screen. All three are available at creationnetworks.net.

Q: Can the screen surface be replaced without removing the frame?

A: Yes. The surface attaches to the rear of the frame with Velcro, allowing field surface replacement or upgrade without disturbing the frame mounting.

Q: Is the 16:10 format compatible with standard presentation sources?

A: 16:10 is a common aspect ratio for professional laptop displays and a number of projector native resolutions (WUXGA, WXGA). It also accommodates 16:9 content with minor pillar cropping. For installations driven exclusively by 16:9 sources, see the Da-Lite UTB Contour and Cinema Contour series.

Q: What is the installation method?

A: The aluminum frame mounts to two screws in the wall. Alternately, the frame can be hung from the ceiling using cables for a suspended installation where wall fastening is not available or desired.
