Product Overview

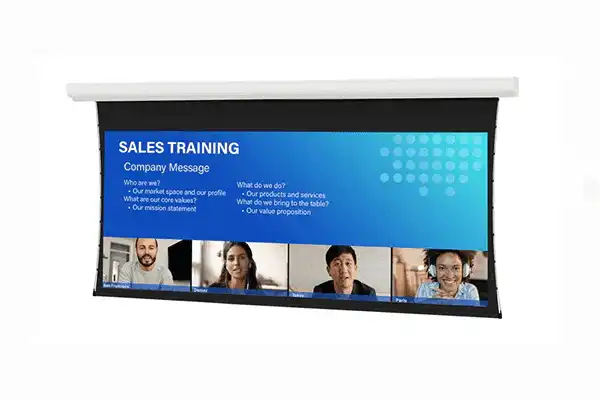

The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments. This 174" diagonal model (DL15736L) features the Da-Mat surface — an ultra-matte surface with a 180-degree viewing angle and gain of 1.0, delivering the widest possible angular light distribution of any surface in the Tensioned Contour Ultra-Wide lineup. At 21:9 format, the screen delivers a unified panoramic display for hybrid meetings, training events, and large-audience presentations. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 174" DL15736L mounts directly to a wall or ceiling surface without a recessed housing. The Da-Mat surface is specified when viewing angle coverage takes priority over gain — it provides a true 180-degree horizontal and vertical viewing cone, making it the best choice for rooms with wide audience seating configurations where off-axis viewers are as important as on-axis viewers. With a gain of 1.0, it delivers neutral brightness without hot-spotting. The Silent Drive System minimizes motor noise. Standard LVC with a three-button Decora wall switch is included. Optional SCB-100 or SCB-200 RS-232 serial control boards and Video Projector Interface are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Single-screen solution for hybrid video conferencing and large-audience panoramic presentation.
- Wall or Ceiling Mount Installation — No recessed housing required; suitable for retrofit and new construction.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full ultra-wide viewing area.
- Standard Silent Drive System — Near-silent motor operation for conference rooms and large venues.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- Da-Mat Surface (Gain 1.0) — Ultra-matte 180° viewing angle; widest angular distribution for rooms with broad or off-axis audience seating.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Large conference rooms and boardrooms with wide audience seating configurations
- Training rooms where off-axis viewers require full image brightness
- Hybrid meeting spaces requiring maximum viewing angle coverage
- Government and institutional multipurpose conference facilities
- Auditoriums with wide lateral seating arrangements
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15736L |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 174" |
| Screen Surface | Da-Mat |
| Gain | 1.0 |
| Viewing Angle | 180° |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. Contact Creation Networks at creationnetworks.net for recessed alternatives.
Q: What makes Da-Mat different from other surfaces in this lineup?
A: The Da-Mat surface provides a true 180-degree viewing angle — the widest of any surface in the Tensioned Contour Ultra-Wide lineup. While other surfaces like HD Progressive 1.1 or 1.3 concentrate light toward on-axis viewers for higher brightness, Da-Mat distributes light uniformly in all directions, ensuring equal brightness for off-axis viewers seated at the sides of the room.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. The Da-Mat surface is compatible with all projector types including 1080p, 4K, and Ultra HD.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
