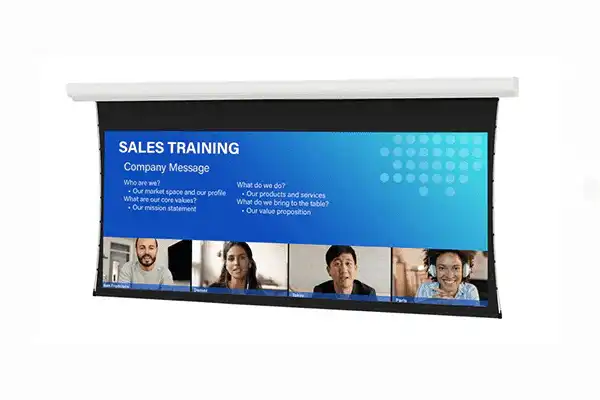

Da-Lite DL15730L 174" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 0.9)

Product Overview

The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments where all meeting participants — in-room and remote — must be seen and heard equitably on a single contiguous display surface. This 174" diagonal model (DL15730L) features the HD Progressive 0.9 surface — a versatile surface optimized for variable lighting environments, offering a balance between brightness and ambient light performance. At 21:9 format, the screen spans the full width of a conference table view, eliminating the need to split the presentation across multiple displays. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat, wrinkle-free surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.

Product Description

The Da-Lite Tensioned Contour Ultra-Wide 174" DL15730L mounts directly to a wall or ceiling surface without requiring a recessed housing. The 21:9 ultra-wide format has become the standard for hybrid video conferencing deployments, enabling unified display of remote participants, shared content, and in-room camera feeds in a single panoramic view. The HD Progressive 0.9 surface delivers a gain of 0.9, making it well-suited for conference rooms where lighting conditions vary throughout the day — it performs effectively in both partially lit and fully lit environments when paired with appropriately specified projectors. The Silent Drive System minimizes motor noise during screen travel. Standard LVC with a three-button Decora wall switch is included for standalone operation. Optional SCB-100 or SCB-200 RS-232 serial control boards and Video Projector Interface are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.

Key Features

• 21:9 Ultra-Wide Format — Unified hybrid video conferencing display on a single panoramic projection surface.
• Wall or Ceiling Mount Installation — No recessed housing required; suitable for retrofit and standard commercial construction.
• TruGuide Electric Screen Tensioning System — Uniform surface tension across the full ultra-wide viewing area.
• Standard Silent Drive System — Near-silent motor operation for conference rooms and boardrooms.
• Smooth Roll Technology — Prevents surface deformation during retraction cycles.
• Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
• Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
• Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
• HD Progressive 0.9 Surface (Gain 0.9) — Versatile surface for variable lighting environments; balances brightness and ambient light performance.
• Five-Year Limited Warranty — Coverage on all motorized components and surface materials.

Typical Applications

• Executive boardrooms and conference rooms with variable lighting conditions
• Corporate collaboration spaces requiring panoramic 21:9 projection
• Hybrid meeting rooms where lighting cannot be fully controlled
• Government and institutional conference facilities
• University and higher education conference suites

Technical Specifications

Frequently Asked Questions

Q: Does this screen require a recessed ceiling opening?

A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. Contact Creation Networks at creationnetworks.net for recessed installation alternatives.

Q: Why choose 21:9 ultra-wide format for a conference room?

A: The 21:9 format maps directly to the aspect ratio used by leading video conferencing platforms for side-by-side display of remote participants and shared content, delivering a unified, immersive hybrid meeting experience.

Q: When should I choose HD Progressive 0.9 vs 0.6 for this size?

A: HD Progressive 0.9 is appropriate when lighting conditions vary throughout the day and the projector output is in the 5,000–8,000 lumen range. For high-lumen projectors above 8,000 lumens or in high-ambient-light rooms, HD Progressive 0.6 offers better contrast.

Q: What control interfaces are available?

A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.

Q: Can I add RS-232 control after installation?

A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
