Da-Lite DL15720L 156" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 0.6)
Da-Lite DL15720L 156" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 0.6) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15720L 156" Tensioned Contour Ultra-Wide Projection ...
Product Overview

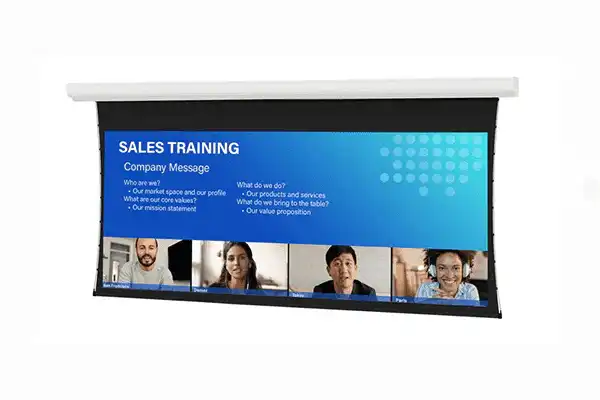

The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments. This 156" diagonal model (DL15720L) features the HD Progressive 0.6 surface — a high-contrast, low-gain surface optimized for high-lumen 4K and Ultra HD projectors in environments where ambient light control is challenging. At 21:9 format, the screen enables unified display of remote participants, shared content, and in-room camera feeds on a single panoramic surface. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 156" DL15720L mounts directly to a wall or ceiling surface without requiring a recessed housing. The HD Progressive 0.6 surface delivers a gain of 0.6 with superior ambient light rejection — recommended for conference rooms and boardrooms where high-lumen projectors are paired with partially uncontrolled ambient light conditions. The 21:9 ultra-wide format has become the standard for hybrid video conferencing deployments, enabling a unified panoramic view of meeting content and participants in place of multiple display panels. The Silent Drive System minimizes motor noise. Standard LVC with a three-button Decora wall switch is included. Optional SCB-100 or SCB-200 RS-232 serial control boards and Video Projector Interface are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Unified hybrid video conferencing display on a single panoramic projection surface.
- Wall or Ceiling Mount Installation — No recessed housing required; suitable for retrofit and standard commercial construction.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full ultra-wide viewing area.
- Standard Silent Drive System — Near-silent motor operation for conference rooms and boardrooms.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- HD Progressive 0.6 Surface (Gain 0.6) — High-contrast surface for high-lumen 4K/UHD projectors with excellent ambient light rejection.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Executive boardrooms requiring unified 21:9 hybrid video conferencing display with high-lumen projectors
- Large conference rooms with ambient light and 4K/UHD projection
- Corporate collaboration spaces requiring panoramic projection with contrast performance
- Government and institutional conference facilities
- University and higher education conference suites
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15720L |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 156" |
| Screen Surface | HD Progressive 0.6 |
| Gain | 0.6 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. Contact Creation Networks at creationnetworks.net for recessed alternatives.
Q: Why choose 21:9 ultra-wide format for a conference room?
A: The 21:9 format enables unified display of hybrid video conferencing feeds and shared content on a single screen, delivering an equitable meeting experience for both in-room and remote participants.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. HD Progressive 0.6 is designed for high-lumen 4K and Ultra HD projection.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
