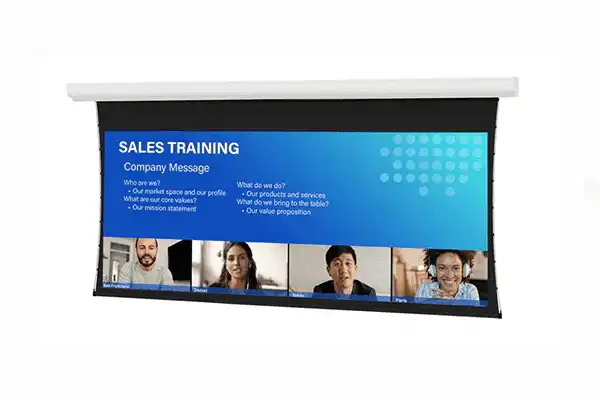

Da-Lite DL15704LS 104" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 1.1 Perf)
Da-Lite DL15704LS 104" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 1.1 Perf) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15704LS 104" Tensioned Contour Ultra-Wide Projection...
Product Overview
The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments. This 104" diagonal model (DL15704LS) features the HD Progressive 1.1 Perf surface — an acoustically transparent perforation pattern that allows loudspeakers to be positioned behind the screen for optimized front-stage audio design. At 21:9 format, the screen delivers a unified panoramic display of meeting content and participants. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 104" DL15704LS mounts directly to a wall or ceiling surface without a recessed housing. The HD Progressive 1.1 Perf surface maintains standard gain and wide viewing angle while adding acoustic transparency, allowing speakers placed behind the screen to project sound through the surface with minimal insertion loss. This enables center-channel and front-stage loudspeaker placement behind the ultra-wide screen — a common requirement in professionally designed hybrid conferencing spaces. The Silent Drive System minimizes motor noise. Standard LVC with a three-button Decora wall switch is included. Optional SCB-100 or SCB-200 RS-232 and VPI are available as factory options. TruGuide tensioning applies uniform tension. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Single-screen solution for hybrid video conferencing and panoramic presentation.
- Wall or Ceiling Mount Installation — No recessed housing required.
- TruGuide Electric Screen Tensioning System — Uniform surface tension.
- Standard Silent Drive System — Near-silent motor operation.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay AV control integration.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed for Crestron, AMX, Extron.
- Standard 12" Black Drop
- HD Progressive 1.1 Perf Surface — Acoustically Transparent — Allows loudspeakers behind the screen for optimized front-stage AV system design.
- Five-Year Limited Warranty
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15704LS |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 104" |
| Screen Surface | HD Progressive 1.1 Perf (Acoustically Transparent) |
| Gain | 1.1 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. Mounts directly to wall or ceiling surface. Contact Creation Networks at creationnetworks.net for recessed alternatives.
Q: Is the perforated surface compatible with 4K projectors?
A: Yes. The perforation density is below the resolution threshold of current 4K/UHD projectors at normal viewing distances.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
