Product Overview
The Da-Lite Tensioned Advantage with SightLine 130" 21:9 Ultra-Wide Projection Screen (DL15682L) with Da-Mat surface is a ceiling recessed 21:9 ultra-wide projection screen featuring an ultra-matte 180° viewing angle surface for installations with wide or fan-shaped seating arrangements. This Da-Lite SightLine floating screen commercial AV product delivers the widest angular light distribution available in the Tensioned Advantage SightLine lineup at 130" diagonal, with 1.0 gain Da-Mat surface providing uniform brightness to all seats regardless of their position relative to the screen. The Da-Mat specification is optimal for rooms where image consistency across a wide seating spread takes priority over peak screen brightness, such as training rooms, multi-purpose facilities, and large conference rooms with varied seating geometry.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations. At 130" diagonal in 21:9 ultra-wide format (approximately 59" H x 111" W viewing surface), this screen suits medium-to-large conference rooms with diverse seating configurations. The SightLine cable-drop system creates a floating screen appearance with 70"/180cm variable positioning. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The Da-Mat 1.0 gain ultra-matte surface provides a 180° viewing angle, delivering uniform brightness to all seats. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This UL Plenum rated ultra-wide projection screen carries a 5-year limited warranty.
Key Features

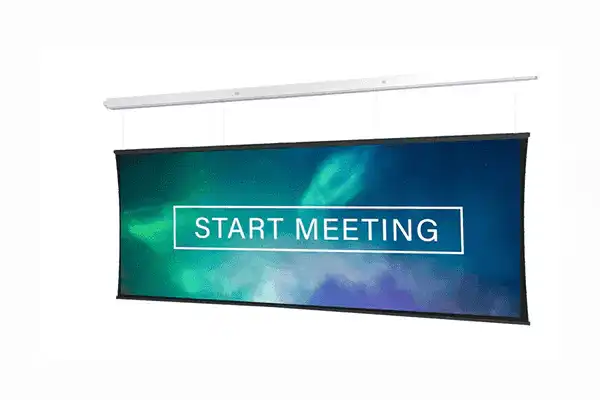

- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

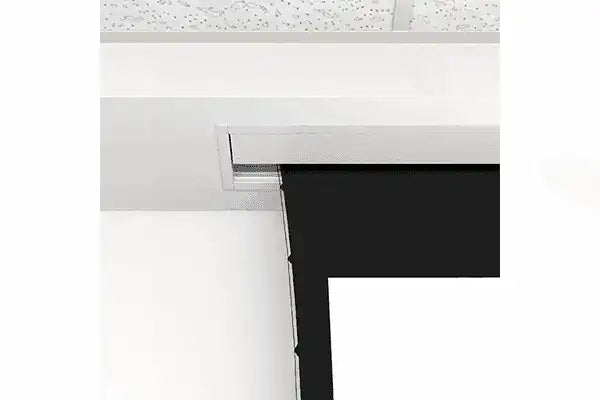

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- Da-Mat Ultra-Matte Surface — 1.0 gain with 180° viewing angle; widest angular distribution in the lineup, delivering uniform brightness to all viewing positions without hot-spotting.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 130" ultra-wide viewing area.
Typical Applications
- Conference rooms with wide or fan-shaped seating arrangements
- Training facilities requiring uniform off-axis image quality
- Boardrooms with seating at extreme lateral positions relative to the screen
- Multi-purpose rooms with variable seating configurations
- Government conference spaces with architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15682L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 130" |
| Screen Surface | Da-Mat |
| Gain | 1.0 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space for cameras or speakers.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the Da-Mat surface?
A: Compatible with virtually all commercial projector types. The 180° viewing angle and 1.0 neutral gain make it projector-agnostic, with particular advantage in rooms where seating extends to wide lateral positions.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
