Da-Lite 94000V Da-Snap 220" 16:9 Fixed Frame Screen with Pro Trim (HD Progressive ReView 0.9)

Product Overview

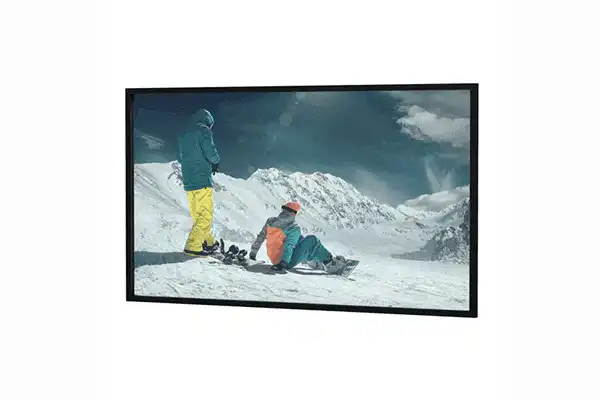

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish designed for permanent commercial AV installations. The Da-Snap 94000V provides a 220" diagonal HDTV 16:9 viewing area with the HD Progressive ReView 0.9 surface — a dual front and rear projection surface that enables flexible projector placement either in front of or behind the screen. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.

Product Description

The Da-Lite Da-Snap fixed frame screen with the HD Progressive ReView 0.9 surface is engineered for installations that require the flexibility to project from either the front or rear of the screen. The 94000V provides a large 220" diagonal 16:9 HDTV viewing area, well-suited to auditoriums, large-format presentation spaces, and broadcast or simulation environments where the projector must be positioned behind the screen. The HD Progressive ReView 0.9 surface (gain 0.9) provides a consistent, matte viewing experience from both the front and rear of the screen, with a wide half-gain angle that supports large-room seating arrangements. The Pro-Trim frame finish absorbs ambient light at the frame border, reducing halation and improving contrast at the screen edge. The screen surface attaches via snaps or optional Velcro for field replacement. Standard black backing is applied to front-projection surface areas; ReView configurations are specifically designed for dual-sided projection. The seamless surface spans the full 220" diagonal. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless fixed frame screens see the Da-Lite FullVision series. For screens with an ultra-thin bezel, see the UTB Contour series at creationnetworks.net.

Key Features

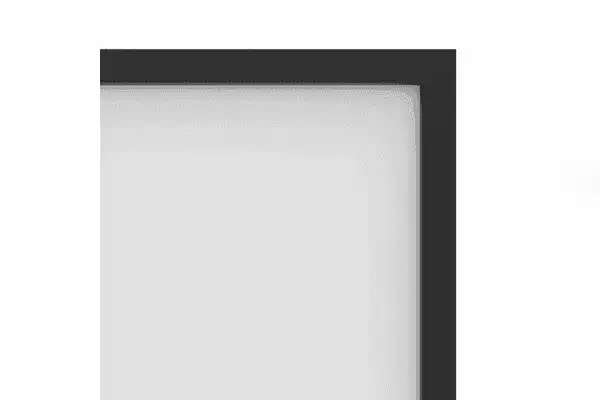

• Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
• Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
• Front or Rear Projection — HD Progressive ReView 0.9 supports both front and rear projection configurations.
• Square Aluminum Tubing Frame — Rigid construction prevents frame flex on larger diagonal sizes.
• Curved Frame Option — Available for immersive display applications.
• Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
• Seamless Viewing Surface — No center seam on any model.
• HD Progressive ReView 0.9 Surface (Gain 0.9) — Dual front/rear projection surface with gain 0.9; flexible installation for applications where rear projection placement is required or preferred.

Typical Applications

• Auditoriums and large presentation spaces where rear projection is specified
• Broadcast studios and simulation environments requiring rear projection flexibility
• Corporate events and venues where projector placement behind the screen is necessary
• Commercial installations where front/rear projection flexibility is a design requirement

Technical Specifications

Frequently Asked Questions

Q: Can the Da-Snap screen surface be field-replaced?

A: Yes. The screen surface attaches to the frame via snaps or optional Velcro, allowing the surface to be replaced in the field without removing the frame from the wall.

Q: Is rear projection supported?

A: Yes. The HD Progressive ReView 0.9 surface is specifically designed for dual front/rear projection. Rear projection requires adequate depth behind the screen for projector placement and rear-of-screen light control.

Q: What is the Pro-Trim frame finish?

A: Pro-Trim is a light-absorbing black material applied to the frame surround that reduces reflected ambient light at the screen border and improves perceived edge contrast, particularly in rooms with uncontrolled ambient lighting.

Q: Does the frame support a curved profile?

A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
