Da-Lite 93993V Da-Snap 193" 16:9 Fixed Frame Screen with Pro Trim (HD Progressive ReView 0.9)
Da-Lite 93993V Da-Snap 193" 16:9 Fixed Frame Screen with Pro Trim (HD Progressive ReView 0.9) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite 93993V Da-Snap 193" 16:9 Fixed Frame Screen with Pro T...
Product Overview

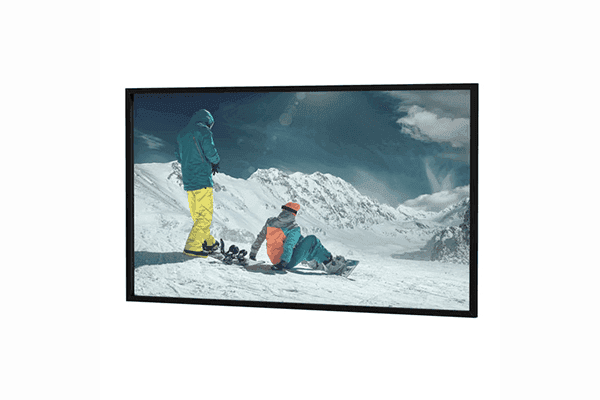

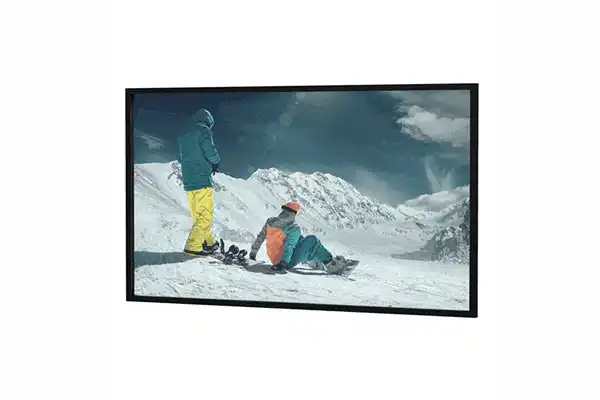

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 93993V provides a 193" diagonal HDTV 16:9 viewing area with the HD Progressive ReView 0.9 surface — a dual front/rear projection surface enabling flexible projector placement either in front of or behind the screen. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.
Product Description
The Da-Lite Da-Snap 93993V with HD Progressive ReView 0.9 surface provides a 193" diagonal HDTV 16:9 fixed frame projection screen with dual front/rear projection capability. The HD Progressive ReView 0.9 surface (gain 0.9) is engineered for installations that require projector placement behind the screen — broadcast studios, themed environments, rear-projection event walls, and corporate AV systems where front-of-room projector placement is not feasible. The surface also performs as a front-projection surface, giving the installer maximum flexibility. The Pro-Trim frame finish absorbs ambient light at the frame surround. The screen surface attaches via snaps or optional Velcro for field replacement without removing the frame. The seamless surface spans the full 193" diagonal. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless fixed frame screens see the Da-Lite FullVision series. For screens with an ultra-thin bezel, see the UTB Contour series at creationnetworks.net.
Key Features

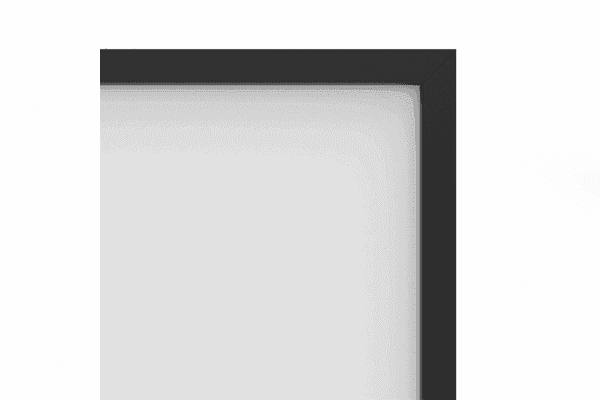

- Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
- Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
- Front or Rear Projection — HD Progressive ReView 0.9 supports both front and rear projection configurations.
- Square Aluminum Tubing Frame — Rigid construction prevents frame flex on larger diagonal sizes.
- Curved Frame Option — Available for immersive display applications.
- Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
- Seamless Viewing Surface — No center seam on any model.
- HD Progressive ReView 0.9 Surface (Gain 0.9) — Dual front/rear projection surface with gain 0.9; flexible installation for applications where rear projection placement is required or preferred.
Typical Applications
- Broadcast studios and themed environments where rear projection is specified
- Corporate event walls and rear-projection installations requiring 193" screen area
- Venues where front-of-room projector placement is not feasible
- Commercial installations requiring front/rear projection flexibility
Technical Specifications
| Specification | Value |
|---|---|
| Model | 93993V |
| Series | Da-Snap |
| Screen Type | Fixed Frame with Pro-Trim |
| Format | 16:9 HDTV |
| Diagonal Size | 193" |
| Screen Surface | HD Progressive ReView 0.9 |
| Gain | 0.9 |
| Frame Material | Square aluminum tubing |
| Frame Finish | Pro-Trim (light-absorbing black) |
| Surface Attachment | Snaps or optional Velcro |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Can the Da-Snap screen surface be field-replaced?
A: Yes. The screen surface attaches to the frame via snaps or optional Velcro, allowing the surface to be replaced in the field without removing the frame from the wall.
Q: Is rear projection supported?
A: Yes. The HD Progressive ReView 0.9 is specifically designed for dual front/rear projection. Rear projection requires adequate depth behind the screen for projector placement and rear-of-screen light control.
Q: What is the Pro-Trim frame finish?
A: Pro-Trim is a light-absorbing black material applied to the frame surround that reduces reflected ambient light at the screen border and improves perceived edge contrast.
Q: Does the frame support a curved profile?
A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
