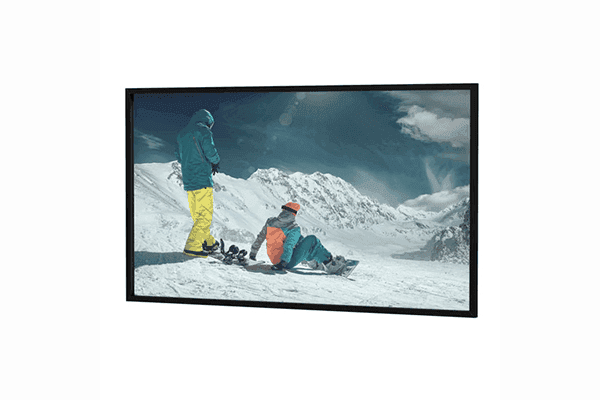

Da-Lite 70362V Da-Snap 137" 16:10 Fixed Frame Screen with Pro Trim (Da-Mat)
Da-Lite 70362V Da-Snap 137" 16:10 Fixed Frame Screen with Pro Trim (Da-Mat) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite 70362V Da-Snap 137" 16:10 Fixed Frame Screen with Pro ...
Product Overview
The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 70362V provides a 137" diagonal WUXGA 16:10 viewing area with the Da-Mat surface — an ultra-matte screen with a 180-degree viewing angle for the widest possible audience spread. The 16:10 format matches native WUXGA and WXGA projector resolutions. The Pro-Trim light-absorbing black frame finish reduces edge halation.
Product Description
The Da-Lite Da-Snap 70362V with Da-Mat surface provides a 137" diagonal WUXGA 16:10 fixed frame projection screen for applications where viewing angle uniformity is more important than image brightness. The Da-Mat surface (gain 1.0) diffuses reflected light across a full 180-degree arc, delivering consistent image brightness from extreme off-axis seating positions. The 16:10 aspect ratio matches the native output of WUXGA (1920x1200) and WXGA projectors. The Pro-Trim frame finish absorbs ambient light at the frame border. The screen surface attaches via snaps or optional Velcro for field replacement. Standard black backing maintains front-projection image brightness. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless 16:10 fixed frame screens see the Da-Lite FullVision FC6H series at creationnetworks.net.
Key Features
- Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
- Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
- Front or Rear Projection — Supports both front and rear projection screen surfaces.
- Square Aluminum Tubing Frame — Rigid construction prevents frame flex.
- Curved Frame Option — Available for immersive display applications.
- Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
- Standard Black Backing — Maintains image brightness on front projection surfaces.
- Seamless Viewing Surface — No center seam on any model.
- 16:10 WUXGA Format with Da-Mat (Gain 1.0) — Ultra-matte 180-degree viewing angle on a WUXGA-native aspect ratio screen at 137".
Typical Applications
- Fan-shaped or wide-arc seating in 16:10 WUXGA conference rooms requiring uniform image brightness at 137"
- Educational institutions with wide seating spread using WXGA projectors at large screen sizes
- Applications where widest possible viewing angle is the primary screen selection criterion in 16:10 format
- Large training facilities where all seat positions require equal image brightness
Technical Specifications
| Specification | Value |
|---|---|
| Model | 70362V |
| Series | Da-Snap |
| Screen Type | Fixed Frame with Pro-Trim |
| Format | 16:10 WUXGA |
| Diagonal Size | 137" |
| Screen Surface | Da-Mat |
| Gain | 1.0 |
| Frame Material | Square aluminum tubing |
| Frame Finish | Pro-Trim (light-absorbing black) |
| Surface Attachment | Snaps or optional Velcro |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Why choose 16:10 format instead of 16:9?
A: The 16:10 format matches the native resolution of WUXGA (1920x1200) and WXGA projectors, eliminating vertical letterboxing for presentation content.
Q: Can the Da-Snap screen surface be field-replaced?
A: Yes. The screen surface attaches to the frame via snaps or optional Velcro.
Q: What is the Pro-Trim frame finish?
A: Pro-Trim is a light-absorbing black material that reduces reflected ambient light at the screen border and improves perceived edge contrast.
Q: Does the frame support a curved profile?
A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
