Da-Lite 39705V Da-Snap 193" 16:9 Fixed Frame Screen with Pro Trim (HD Progressive 0.9)

Product Overview

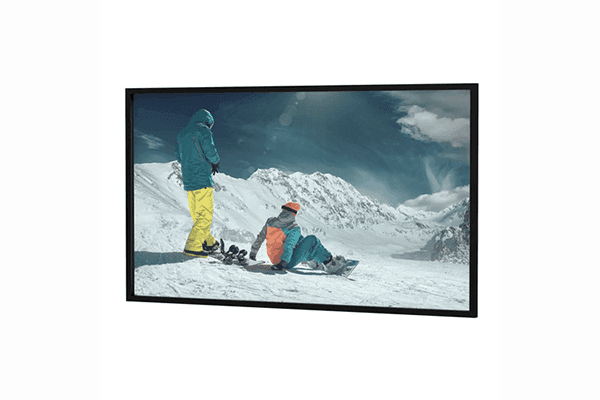

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 39705V provides a 193" diagonal HDTV 16:9 viewing area with the HD Progressive 0.9 surface — a versatile, wide-viewing-angle surface for variable lighting environments. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.

Product Description

The Da-Lite Da-Snap 39705V provides a 193" diagonal HDTV 16:9 large-format fixed frame projection screen with HD Progressive 0.9 surface in a Pro-Trim frame. At 193" diagonal this is a large-venue screen suited to auditoriums, large conference halls, and presentation theaters. The HD Progressive 0.9 surface (gain 0.9) performs across a wide range of projector brightness levels and room lighting conditions, with a generous half-gain angle well-suited to theater-style and classroom seating where viewers occupy a wide angular range. The Pro-Trim frame finish absorbs ambient light at the frame border, reducing halation and improving perceived contrast at the screen edge. The screen surface attaches via snaps or optional Velcro for field replacement without removing the frame from the wall. Standard black backing maintains front-projection image brightness. The seamless surface spans the full 193" diagonal. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless fixed frame screens see the Da-Lite FullVision series. For screens with an ultra-thin bezel, see the UTB Contour series at creationnetworks.net.

Key Features

• Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
• Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
• Front or Rear Projection — Supports both front and rear projection screen surfaces.
• Square Aluminum Tubing Frame — Rigid construction prevents frame flex on larger diagonal sizes.
• Curved Frame Option — Available for immersive display applications.
• Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
• Standard Black Backing — Maintains image brightness on front projection surfaces.
• Seamless Viewing Surface — No center seam on any model.
• HD Progressive 0.9 Surface (Gain 0.9) — Versatile surface for variable lighting environments; wide half-gain angle suitable for large rooms with dispersed seating.

Typical Applications

• Auditoriums and large conference halls requiring a large-format fixed frame screen
• Presentation theaters and lecture halls where versatile surface performance is required
• Corporate training centers where a surface-replaceable fixed frame screen is specified
• Commercial installations requiring a Pro-Trim frame finish for ambient light control

Technical Specifications

Frequently Asked Questions

Q: Can the Da-Snap screen surface be field-replaced?

A: Yes. The screen surface attaches to the frame via snaps or optional Velcro, allowing the surface to be replaced in the field without removing the frame from the wall.

Q: Is rear projection supported?

A: Yes. The Da-Snap supports both front and rear projection screen surfaces. Da-Tex rear projection material is available in this series.

Q: What is the Pro-Trim frame finish?

A: Pro-Trim is a light-absorbing black material that reduces reflected ambient light at the screen border and improves perceived edge contrast.

Q: Does the frame support a curved profile?

A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
