Da-Lite 24785V Da-Snap 100" 16:9 Fixed Frame Screen with Pro Trim (HD Progressive 1.3)

Product Overview

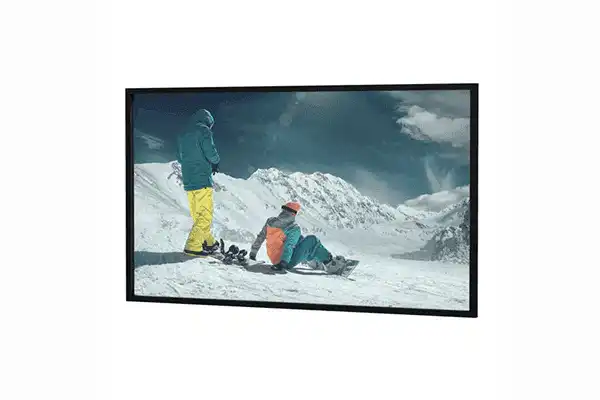

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 24785V provides a 100" diagonal HDTV 16:9 viewing area with the HD Progressive 1.3 surface — a higher-gain surface for longer-throw or lower-lumen projectors. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.

Product Description

The Da-Lite Da-Snap 24785V provides a 100" diagonal HDTV 16:9 fixed frame projection screen with HD Progressive 1.3 surface and Pro-Trim frame finish. The HD Progressive 1.3 surface (gain 1.3) concentrates reflected light toward the primary viewing axis, increasing on-axis image brightness for configurations where the projector operates at lower lumen output or has a longer throw distance. The 1.3 gain surface is often selected when the installed projector brightness will decrease over the lamp life and a margin of brightness headroom is required. The Pro-Trim frame finish absorbs ambient light at the frame border. The screen surface attaches via snaps or optional Velcro for field replacement. Standard black backing maintains front-projection image brightness. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless fixed frame screens see the Da-Lite FullVision series at creationnetworks.net.

Key Features

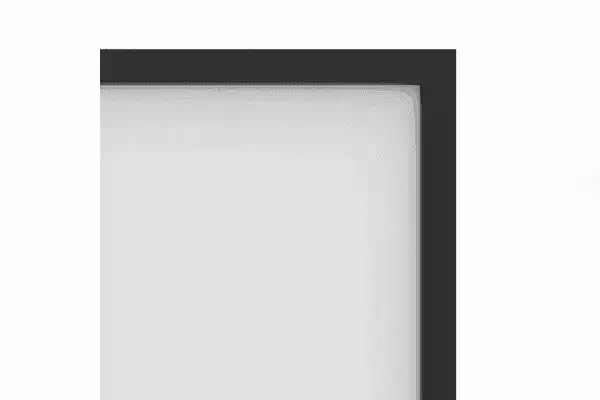

• Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
• Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
• Front or Rear Projection — Supports both front and rear projection screen surfaces.
• Square Aluminum Tubing Frame — Rigid construction prevents frame flex.
• Curved Frame Option — Available for immersive display applications.
• Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
• Standard Black Backing — Maintains image brightness on front projection surfaces.
• Seamless Viewing Surface — No center seam on any model.
• HD Progressive 1.3 Surface (Gain 1.3) — Higher-gain surface for longer-throw or lower-lumen projectors; provides brightness headroom for configurations where projector output may decrease over time.

Typical Applications

• Conference rooms and boardrooms where projector brightness headroom is required
• Installations with longer projector throw distances where lumen loss at the screen needs compensation
• Commercial installations specifying a higher-gain surface for extended projection distances
• Theater-style seating at 100" where on-axis brightness is the primary screen performance requirement

Technical Specifications

Frequently Asked Questions

Q: Can the Da-Snap screen surface be field-replaced?

A: Yes. The screen surface attaches to the frame via snaps or optional Velcro.

Q: Is rear projection supported?

A: Yes. The Da-Snap supports both front and rear projection screen surfaces. Da-Tex rear projection material is available in this series.

Q: What is the Pro-Trim frame finish?

A: Pro-Trim is a light-absorbing black material that reduces reflected ambient light at the screen border and improves perceived edge contrast.

Q: Does the frame support a curved profile?

A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
