Product Overview

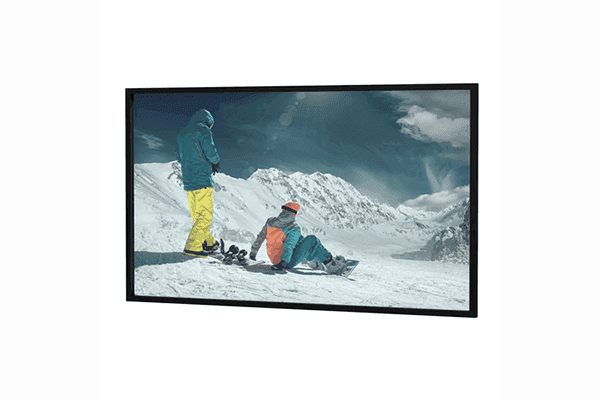

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 21902V provides a 109" diagonal WUXGA 16:10 viewing area with the HD Progressive 1.1 surface — a standard-gain, wide-viewing-angle surface compatible with all projector types. The 16:10 format matches native WUXGA and WXGA projector resolutions. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.
Product Description
The Da-Lite Da-Snap 21902V provides a 109" diagonal WUXGA 16:10 fixed frame projection screen with HD Progressive 1.1 surface and Pro-Trim frame finish. The HD Progressive 1.1 surface (gain 1.1) delivers consistent image brightness across a broad viewing area and is compatible with all projector types, making it the most commonly specified surface for standard conference room applications. The 16:10 aspect ratio matches the native output of WUXGA (1920x1200) and WXGA projectors, providing a full-width image without vertical letterboxing. The Pro-Trim frame finish absorbs ambient light at the frame border. The screen surface attaches via snaps or optional Velcro for field replacement without removing the frame. Standard black backing maintains front-projection image brightness. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless 16:10 fixed frame screens see the Da-Lite FullVision FC6H series at creationnetworks.net.
Key Features
- Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
- Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
- Front or Rear Projection — Supports both front and rear projection screen surfaces.
- Square Aluminum Tubing Frame — Rigid construction prevents frame flex.
- Curved Frame Option — Available for immersive display applications.
- Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
- Standard Black Backing — Maintains image brightness on front projection surfaces.
- Seamless Viewing Surface — No center seam on any model.
- 16:10 WUXGA Format with HD Progressive 1.1 — Standard-gain wide-viewing-angle surface on a WUXGA-native aspect ratio screen; compatible with all projector types.
Typical Applications
- Corporate conference rooms specifying WUXGA-native 16:10 format at 109" with a standard-gain surface
- Educational classrooms and training rooms using WXGA projectors
- Commercial AV installations where 16:10 format is specified to match projector native resolution
- Mixed-use presentation spaces where projector type may change over time
Technical Specifications
| Specification | Value |
|---|---|
| Model | 21902V |
| Series | Da-Snap |
| Screen Type | Fixed Frame with Pro-Trim |
| Format | 16:10 WUXGA |
| Diagonal Size | 109" |
| Screen Surface | HD Progressive 1.1 |
| Gain | 1.1 |
| Frame Material | Square aluminum tubing |
| Frame Finish | Pro-Trim (light-absorbing black) |
| Surface Attachment | Snaps or optional Velcro |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Why choose 16:10 format instead of 16:9?
A: The 16:10 format matches the native resolution of WUXGA (1920x1200) and WXGA projectors, eliminating vertical letterboxing for presentation content. If your projector is natively 16:10, a 16:10 screen uses the full projected image area.
Q: Can the Da-Snap screen surface be field-replaced?
A: Yes. The screen surface attaches to the frame via snaps or optional Velcro.
Q: What is the Pro-Trim frame finish?
A: Pro-Trim is a light-absorbing black material that reduces reflected ambient light at the screen border and improves perceived edge contrast.
Q: Does the frame support a curved profile?
A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
