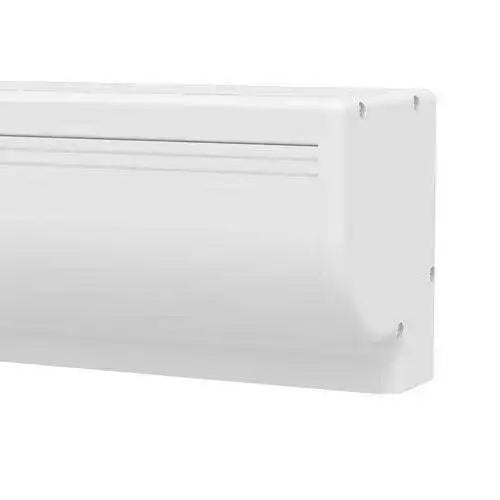

Da-Lite 184" Tensioned Contour Projection Screen HD Progressive 0.6
Da-Lite 184" Tensioned Contour Projection Screen HD Progressive 0.6 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite 184" Tensioned Contour Projection Screen HD Progressiv...
Product Overview
The Da-Lite Tensioned Contour Electrol is a wall or ceiling-mounted motorized projection screen engineered for commercial AV installations where a ceiling-recessed housing is not required. This 184" diagonal, HDTV 16:9 format screen features the HD Progressive 0.6 surface — a high-contrast, low-gain surface delivering superior ambient light rejection, optimized for high-lumen 4K and Ultra HD projectors. The massive 160"x90" viewing area is designed for auditoriums, large training facilities, and multipurpose venues where large-format projection commands the space. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat, wrinkle-free viewing surface throughout the screen's service life. Optional SCB-100 or SCB-200 RS-232 serial control boards enable integration with Crestron, AMX, Extron, and other control platforms. The Tensioned Contour is also available in 21:9 Ultra-Wide format for hybrid video conferencing — see the Tensioned Contour Ultra-Wide series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Electrol 184" HD Progressive 0.6 represents the largest standard diagonal in the Tensioned Contour Electrol line, delivering a full 160"x90" viewable surface from a wall or ceiling surface-mount housing. At this scale, the HD Progressive 0.6 surface is particularly well-matched to high-lumen projectors — 8,000 lumens or greater — as the lower gain distributes brightness uniformly across the viewing surface without hot-spotting. The Silent Drive System minimizes motor noise during screen travel. The standard 12" black drop provides proper visual separation at the top of the viewing area. LVC integration supports dry-contact AV relay connections, with optional SCB-100 or SCB-200 RS-232 boards and Video Projector Interface available as factory options. TruGuide tensioning applies uniform tension across the full 160"x90" surface, maintaining critical flatness at this screen size. Smooth Roll Technology prevents surface distortion during retraction cycles. A three-button Decora wall switch is included for standalone operation. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- Wall or Ceiling Mount Installation — Surface-mount electric screen; no recessed housing required for 184" large-format installation.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full 160"x90" viewing area.
- Standard Silent Drive System — Near-silent motor operation for auditorium and large venue installations.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles at large format.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- Three-Button Decora Wall Switch Included — Standalone up/stop/down operation.
- HD Progressive 0.6 Surface (Gain 0.6) — High-contrast surface for high-lumen projectors; recommended for 184" installations with 8,000+ lumen projector specifications.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Auditoriums and large multipurpose venues requiring 184" electric projection
- Large training and education facilities with high-lumen projectors
- House of worship main sanctuaries with large-format AV requirements
- Government and corporate large-format meeting spaces
- Performing arts and event venues with permanent projection infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Electrol |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | HDTV (16:9) |
| Viewable Diagonal | 184" |
| Viewable Width | 160" |
| Viewable Height | 90" |
| Screen Surface | HD Progressive 0.6 |
| Gain | 0.6 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Ship Weight | 141 lbs |
| Ship Dimensions | 192" x 13" x 10" |
| Freight Class | 125 |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Electrol mounts directly to a wall or ceiling surface without a recessed housing. For ceiling-recessed installation, see the Tensioned Advantage series at creationnetworks.net.
Q: What projector lumen output is recommended for a 184" screen?
A: For the 184" diagonal with HD Progressive 0.6, a projector with 8,000 lumens or greater is typically recommended to achieve adequate image brightness across the full 160"x90" viewing area in commercial environments.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. HD Progressive 0.6 is specifically recommended for high-lumen 4K and Ultra HD projection in large-format installations.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
