Product Overview

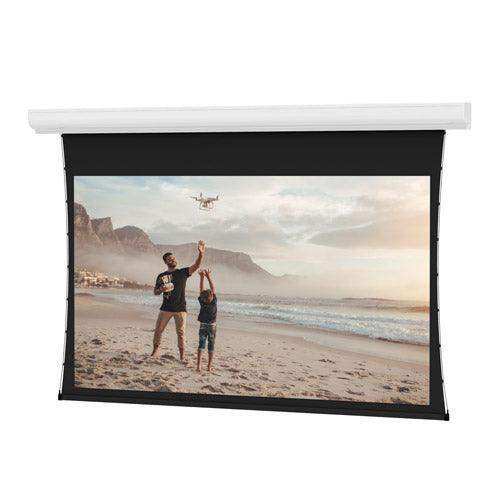

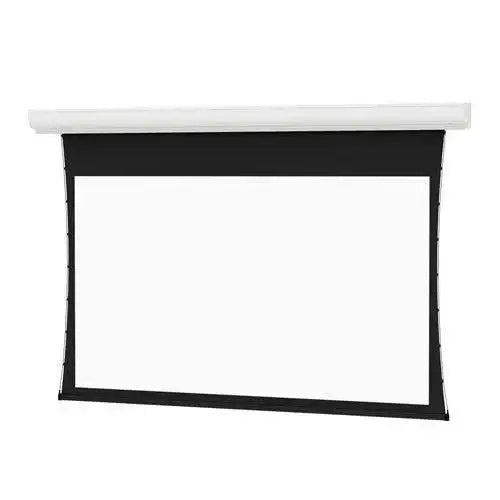

The Da-Lite Tensioned Contour Electrol is a wall or ceiling-mounted motorized projection screen engineered for commercial AV installations where a ceiling-recessed housing is not required. This 159" diagonal, HDTV 16:9 format screen features the HD Progressive 1.1 surface — a standard-gain, wide-viewing-angle surface compatible with all projector types including 1080p, 4K, and Ultra HD. The 139"x78" viewable area delivers large-format impact for auditoriums, large conference rooms, and training facilities. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat, wrinkle-free surface throughout the screen's service life. Optional SCB-100 or SCB-200 RS-232 serial control boards enable integration with Crestron, AMX, Extron, and other control platforms. The Tensioned Contour is also available in 21:9 Ultra-Wide format for hybrid video conferencing — see the Tensioned Contour Ultra-Wide series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Electrol 159" HD Progressive 1.1 mounts directly to a wall or ceiling surface without a recessed housing, making it practical for large-format AV installations in standard commercial construction. The HD Progressive 1.1 surface provides a gain of 1.1 with a wide horizontal viewing cone, ensuring consistent image brightness across the full audience seating area in large rooms. The Silent Drive System minimizes motor noise, and the standard 12" black drop provides proper visual separation at the top of the viewing area. LVC integration supports dry-contact AV relay connections for control system integration, with optional SCB-100 or SCB-200 RS-232 boards and Video Projector Interface available as factory options. TruGuide tensioning applies uniform tension across the full 139"x78" surface. Smooth Roll Technology prevents surface distortion during retraction cycles. A three-button Decora wall switch is included for standalone operation. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- Wall or Ceiling Mount Installation — Surface-mount electric screen; no recessed housing required.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full 139"x78" viewing area.
- Standard Silent Drive System — Near-silent motor operation for large-format commercial installations.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- Three-Button Decora Wall Switch Included — Standalone up/stop/down operation.
- HD Progressive 1.1 Surface (Gain 1.1) — Wide-angle surface compatible with all projector types including 4K and Ultra HD; ideal for broad audience viewing angles.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Auditoriums and large conference rooms requiring large-format electric projection
- Training rooms with wall or ceiling-mounted AV infrastructure
- Multi-purpose commercial spaces with broad audience seating angles
- Government and corporate facilities with large-format AV requirements
- House of worship main sanctuaries
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Electrol |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | HDTV (16:9) |
| Viewable Diagonal | 159" |
| Viewable Width | 139" |
| Viewable Height | 78" |
| Screen Surface | HD Progressive 1.1 |
| Gain | 1.1 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Ship Weight | 124 lbs |
| Ship Dimensions | 168" x 13" x 10" |
| Freight Class | 125 |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Electrol mounts directly to a wall or ceiling surface without a recessed housing. For ceiling-recessed installation, see the Tensioned Advantage series at creationnetworks.net.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. HD Progressive 1.1 supports 1080p, 4K, and Ultra HD projection with its seamless surface and TruGuide tensioning.
Q: What is the standard black drop distance?
A: All Tensioned Contour models ship with 12" of black drop above the viewing area. Custom drop distances are available on request.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
