Da-Lite DL15675L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (Parallax Stratos 1.0)

Product Overview

The Da-Lite Tensioned Advantage with SightLine 130" 21:9 Ultra-Wide Projection Screen (DL15675L) with Parallax Stratos 1.0 surface is a ceiling recessed 21:9 ultra-wide projection screen designed for commercial boardrooms and hybrid conference rooms where ambient light cannot be fully controlled. This Da-Lite SightLine floating screen commercial AV product delivers an ALR (ambient light rejecting) 1.0 gain surface that supports both ultra-short-throw and standard-throw projectors without compromise. The 21:9 ultra-wide format at 130" diagonal provides a 59" H x 111" W viewing surface—well-suited for medium-to-large boardrooms requiring a video conferencing projection screen capable of displaying in-room and remote participants simultaneously. This Da-Lite commercial projection screen installation delivers ALR performance within a ceiling-recessed SightLine cable-drop system.

Product Description

The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations requiring architectural integration and high performance. At 130" diagonal in 21:9 ultra-wide format (approximately 59" H x 111" W viewing surface), this screen suits medium-to-large boardrooms and conference facilities. The SightLine cable-drop system replaces traditional black drop fabric with 3-4 thin cables, creating a floating screen appearance and enabling variable vertical positioning within a 70"/180cm range after installation. The two-stage installation installs the case during rough-in and the surface assembly during the finish phase. The 21:9 ultra-wide format supports hybrid video conferencing. The Parallax Stratos 1.0 ALR surface with 1.0 gain is optimized for high-ambient-light environments and is compatible with both ultra-short-throw laser projectors and standard-throw commercial projectors. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This ceiling recessed 21:9 ultra-wide projection screen carries a 5-year limited warranty.

Key Features

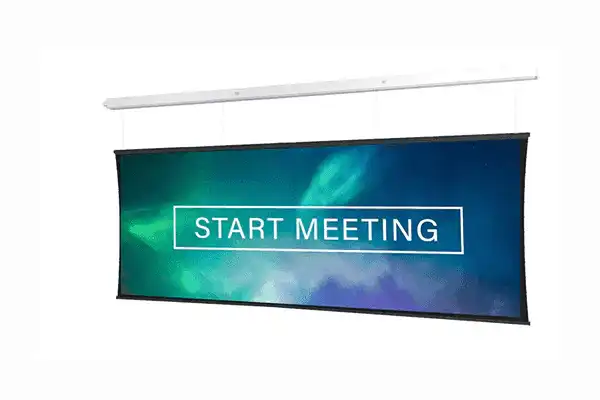

• SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
• 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
• Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
• TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
• Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
• Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
• UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

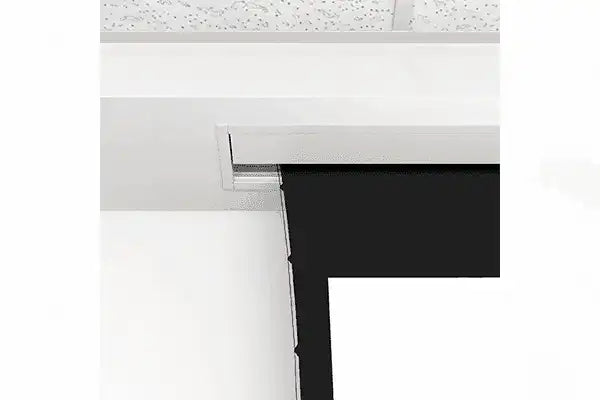

• Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
• Parallax Stratos 1.0 ALR Surface — Ambient light rejecting 1.0 gain coating compatible with ultra-short-throw and standard-throw projectors; optimized for high-ambient-light hybrid conferencing spaces.
• Seamless Viewing Surface — No center seam; maintains visual continuity across the full 130" ultra-wide viewing area.

Typical Applications

• Medium-to-large boardrooms and conference facilities deploying hybrid video conferencing
• Corporate spaces requiring a premium ceiling-recessed projection solution
• Multi-purpose rooms configured for video collaboration in ambient light
• Corporate training rooms with ceiling-recessed AV infrastructure
• Government conference spaces with architectural ceiling requirements

Technical Specifications

Frequently Asked Questions

Q: What is the SightLine feature and how does it differ from standard black drop?

A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space above the screen for cameras or speakers.

Q: Is this screen compatible with standard AV control systems?

A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.

Q: What projectors are compatible with the Parallax Stratos 1.0 surface?

A: Compatible with both ultra-short-throw (UST) laser projectors and standard-throw commercial projectors. Effective in rooms with windows, overhead lighting, or other uncontrolled ambient light.

Q: Can this screen be installed in a plenum air handling space?

A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.

Q: What is the two-stage installation process?

A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.

Q: What warranty does Da-Lite provide on this product?

A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
