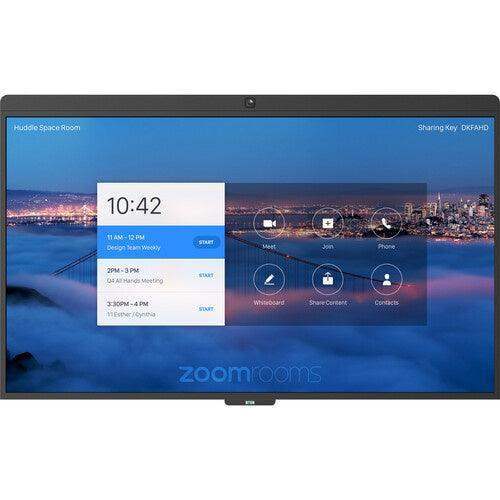

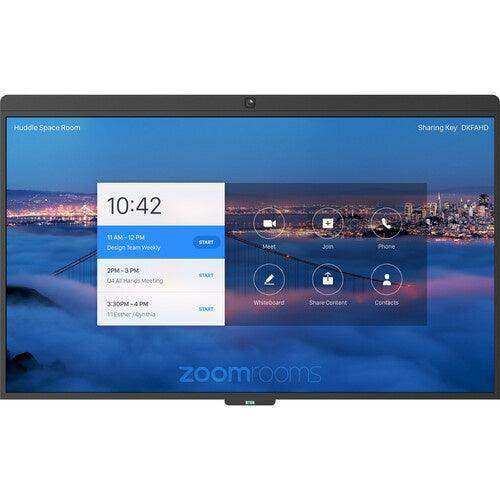

DTEN D7 75" All-In-One Interactive Whiteboard Display - DB50475EA

Product Overview

The DTEN D7 75" All-In-One Interactive Whiteboard Display is a Zoom Rooms certified commercial AV solution designed for large conference rooms, boardrooms, and enterprise meeting spaces. The DB50475EA integrates a 75" 4K UHD touchscreen, built-in 4K wide-angle camera, 16-microphone array, and Windows OS into a single wall-mounted device, eliminating the need for separate conferencing hardware. AV integrators deploying Zoom Rooms in large meeting spaces will find the D7 75" delivers reliable all-in-one performance with a straightforward commercial AV installation process. The plug-and-play design allows facilities managers to get rooms operational quickly without dedicated technical support on-site.

Product Description

The DTEN D7 75" (DB50475EA) is the large-format single-display model in DTEN's D7 series, providing a complete Zoom Rooms video conferencing and digital collaboration platform in a commercial-grade all-in-one form factor. The 75" 4K UHD LCD panel at 3840×2160 resolution and a 16:9 aspect ratio delivers sharp, life-like video quality for both in-room and remote meeting participants. The integrated 4K camera features an f/2.8 aperture and a 120° diagonal field of view — wide enough to capture all participants across large conference tables without camera panning. DTEN's AI-assisted 16-microphone array provides intelligent audio with noise reduction, echo cancellation, and gain control, ensuring clear voice pickup throughout large meeting spaces. The Windows operating system provides the deployment flexibility commercial integrators require, enabling custom room control integration and enterprise IT management. Zoom Rooms features including one-touch meeting launch, Smart Gallery, dynamic auto-framing, and room presets are natively supported. Interactive digital whiteboarding and live on-screen annotation tools facilitate real-time collaboration, and one-click wireless content sharing supports BYOD workflows without additional hardware. HDMI input accepts content from external sources, while HDMI output and 3.5mm audio output support connection to secondary displays and external audio systems. Three USB 3.1/3.2 Gen 1 ports and Gigabit Ethernet provide connectivity for peripherals and wired network infrastructure. Built-in Wi-Fi adds wireless flexibility for deployments where cabling to the display is impractical. The D7 75" ships ready for immediate deployment, with a plug-and-play setup that does not require an on-site AV technician for initial configuration.

Key Features

• 75" 4K UHD LCD Display — 3840×2160 resolution delivers clear, detailed video for large conference rooms and boardrooms.
• Integrated 4K Camera, 120° FOV — f/2.8 aperture wide-angle camera captures all participants across large meeting room configurations.
• AI-Assisted 16-Microphone Array — Intelligent audio processing with noise reduction, echo cancellation, and gain control for clear voice pickup in large spaces.
• Zoom Rooms Certified — Full Zoom Rooms compatibility with one-touch launch, Smart Gallery, auto-framing, and room preset support.
• Windows OS — Commercial AV-friendly operating system for enterprise IT management and room control system integration.
• Interactive Digital Whiteboard — Multi-touch capacitive display supports real-time whiteboarding, annotation, and on-screen document markup.
• One-Click Wireless Sharing — Simplified BYOD content sharing for meeting participants without additional hardware requirements.
• Wired + Wireless Connectivity — Gigabit Ethernet and built-in Wi-Fi provide dual-path network options for commercial AV deployments.
• Plug-and-Play Setup — Out-of-box installation requires no dedicated AV technician, reducing deployment time for facilities teams.
• Multiple I/O Ports — HDMI in/out, 3× USB 3.1/3.2 Gen 1, Gigabit Ethernet, and 3.5mm audio output for commercial AV system integration.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Government space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

What conferencing platforms does the DTEN D7 75" support?

The DB50475EA is certified for Zoom Rooms. The Windows OS also supports BYOD connections for Webex, Microsoft Teams, Google Meet, and other platforms via HDMI or USB input.

Is professional installation required for the D7 75"?

The D7 75" is plug-and-play and can be set up without a dedicated AV technician. However, given its 83.6 lb weight, professional mounting installation is recommended for safe and code-compliant wall installation.

Can the D7 75" be integrated with existing room control systems?

Yes. The Windows OS supports integration with Crestron, AMX, and other commercial room control systems. Contact your AV integrator for specific configuration requirements.

Does the D7 75" support dual-display configurations?

The DB50475EA is a single-display model. For dual-display configurations, see the DTEN D7 75" Dual Display (DB70475DSE) available at creationnetworks.net.

What network infrastructure is required for deployment?

A Gigabit Ethernet drop is recommended for reliable Zoom Rooms performance. Built-in Wi-Fi is available as an alternative but wired connectivity is preferred for commercial AV installations.

What warranty and support options are available?

DTEN products carry a standard manufacturer warranty. Contact Creation Networks for current warranty terms and enterprise support packages for commercial deployments.
