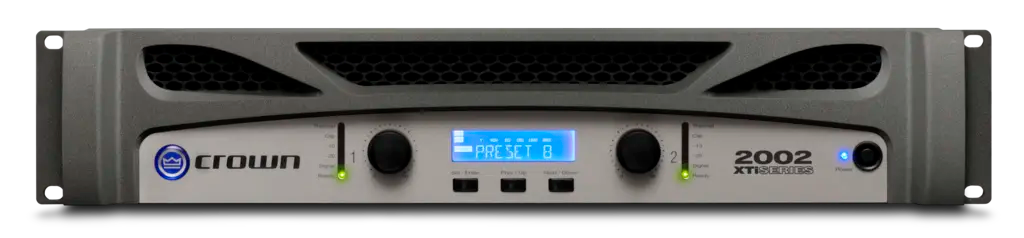

Crown XTI2002 XTI 2 Series, Two-channel, 800W Power Amplifier
Crown XTI2002 – 2-Channel 800W XTi 2 Series Power Amplifier
Product Overview
The Crown XTI2002 is a two-channel, 800-watt-per-channel professional power amplifier from Crown's XTi 2 Series, built for commercial AV installations and sound reinforcement applications requiring higher output power with integrated DSP processing. The XTI2002 is suited for conference rooms, houses of worship, auditoriums, and commercial facilities specifying a mid-range two-channel amplifier with onboard crossover, EQ, limiting, and delay capabilities.
Product Description
The XTI2002 delivers 800 watts per channel into 4 ohms with built-in DSP accessible via the front-panel LCD or Crown Band Manager software over USB. The amplifier supports 2-ohm, 4-ohm, and 8-ohm loads and operates in stereo, parallel, or bridge-mono modes. In bridge mono, the XTI2002 delivers 1600 watts into 8 ohms, making it appropriate for subwoofer and main speaker applications in commercial venues. Crown's Class I amplifier topology provides high efficiency for continuous-duty rack operation.
Key Features
- 800W per channel at 4Ω — Higher output for main speaker and subwoofer systems in commercial venues.
- Built-in DSP — Crossover, parametric EQ, limiting, and delay without external processing.
- 1600W bridge mono at 8Ω — High mono output for subwoofer and demanding main speaker loads.
- Front-panel LCD — Real-time display of input levels, DSP settings, and system status.
- USB connectivity — Computer configuration via Crown Band Manager software.
- 2Ω load stability — Stable operation at low-impedance loads.
- Crown Class I topology — High efficiency design for commercial rack installations.
- Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
Typical Applications
- Conference room and boardroom main speaker systems
- House of worship main and fill speaker amplification
- Auditorium and multi-purpose room sound reinforcement
- Commercial meeting space and all-hands room audio
- Training room and large classroom speaker systems
- Subwoofer amplification in commercial AV systems
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (4Ω stereo) | 800W per channel |
| Power Output (8Ω stereo) | 475W per channel |
| Power Output (bridge mono, 8Ω) | 1600W |
| Minimum Load Impedance | 2Ω stereo / 4Ω bridge |
| DSP | Built-in (crossover, PEQ, limiting, delay) |
| Control Interface | USB, front-panel LCD |
| THD+N | <0.5% at rated power |
| Frequency Response | 20Hz–20kHz ±1dB |
| Rack Spaces | 2U |
| SKU | XTI2002 |
Frequently Asked Questions
- Can the XTI2002 bridge both channels for higher mono output?
- Yes. In bridge mono mode, the XTI2002 delivers 1600 watts into 8 ohms, suitable for subwoofer and demanding main speaker applications.
- Does the XTI2002 require an external DSP processor?
- Not for standard installations. Built-in DSP handles crossover, parametric EQ, limiting, and delay. Complex system architectures may benefit from a dedicated DSP processor upstream.
- What is the warranty?
- Crown XTi 2 Series amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
