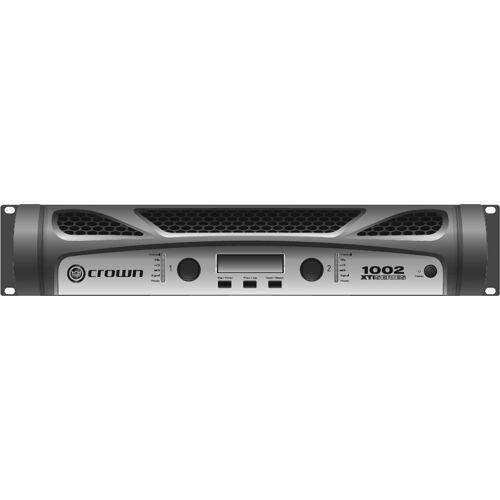

Crown XTI1002 XTI 2 Series, Two-channel, 500W, Power Amplifier
Crown XTI1002 – 2-Channel 500W XTi 2 Series Power Amplifier
Product Overview
The Crown XTI1002 is a two-channel, 500-watt-per-channel professional power amplifier from Crown's XTi 2 Series, built for commercial AV installations, sound reinforcement, and installed audio applications requiring onboard DSP, professional protection, and reliable performance in a rack-mount chassis. The XTI1002 is suited for conference rooms, houses of worship, auditoriums, and commercial facilities where system designers specify a capable two-channel amplifier with integrated signal processing.
Product Description
The XTI1002 delivers 500 watts per channel into 4 ohms with built-in DSP including crossover, parametric EQ, limiting, and delay processing accessible via the front panel or Crown's Band Manager software over USB. The amplifier supports 2-ohm, 4-ohm, and 8-ohm loads and operates in stereo, parallel, or bridge-mono modes. A front-panel LCD displays real-time system status, input levels, and DSP parameter values. The XTi 2 Series uses Crown's Class I amplifier topology for high efficiency and low thermal output in continuous-duty commercial rack installations.
Key Features
- 500W per channel at 4Ω — Professional output for conference room and commercial sound reinforcement applications.
- Built-in DSP — Crossover, parametric EQ, limiting, and delay without an external processor.

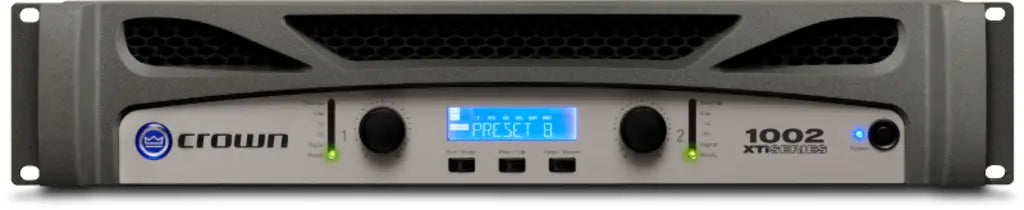

- Front-panel LCD — Real-time display of input levels, DSP settings, and system status.
- USB connectivity — Computer control and configuration via Crown Band Manager software.
- Bridge mono operation — Channels bridgeable for higher mono output on demanding loads.
- 2Ω load stability — Stable operation at low-impedance loads for demanding speaker systems.
- Crown Class I topology — High efficiency amplifier design for commercial rack operation.
- Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
Typical Applications
- Conference room and boardroom speaker systems
- House of worship main and fill speaker amplification
- Auditorium and multi-purpose room sound reinforcement
- Commercial meeting space foreground audio
- Training room and classroom speaker systems
- Small-to-medium venue sound reinforcement
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (4Ω stereo) | 500W per channel |
| Power Output (8Ω stereo) | 275W per channel |
| Power Output (bridge mono, 8Ω) | 1000W |
| Minimum Load Impedance | 2Ω stereo / 4Ω bridge |
| DSP | Built-in (crossover, PEQ, limiting, delay) |
| Control Interface | USB, front-panel LCD |
| THD+N | <0.5% at rated power |
| Frequency Response | 20Hz–20kHz ±1dB |
| Rack Spaces | 2U |
| SKU | XTI1002 |
Frequently Asked Questions
- Does the XTI1002 include onboard DSP?
- Yes. The XTI1002 includes built-in DSP with crossover, parametric EQ, limiting, and delay accessible from the front panel or via Crown Band Manager software over USB.
- Can the XTI1002 be controlled remotely?
- The XTI1002 uses USB for computer-based configuration via Crown Band Manager. It does not include HiQnet network control; the XTi 2 Series is primarily a front-of-house and installation amplifier controlled locally or via USB.
- Is the XTI1002 stable at 2 ohms?
- Yes. The XTI1002 is rated for 2-ohm stereo operation.
- What is the warranty?
- Crown XTi 2 Series amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
