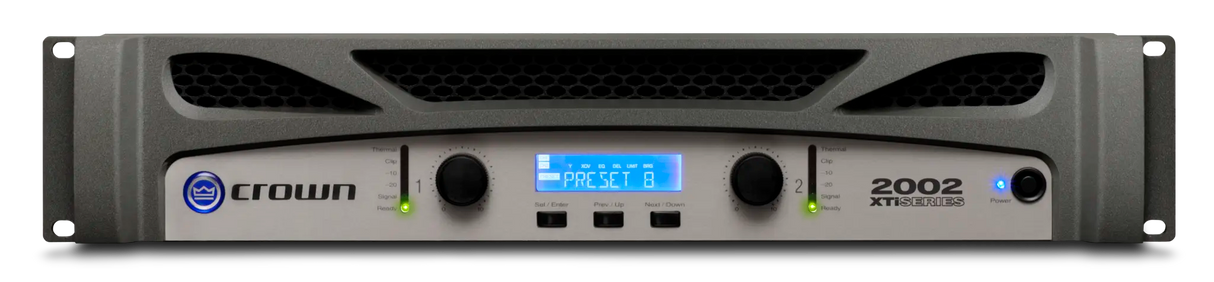

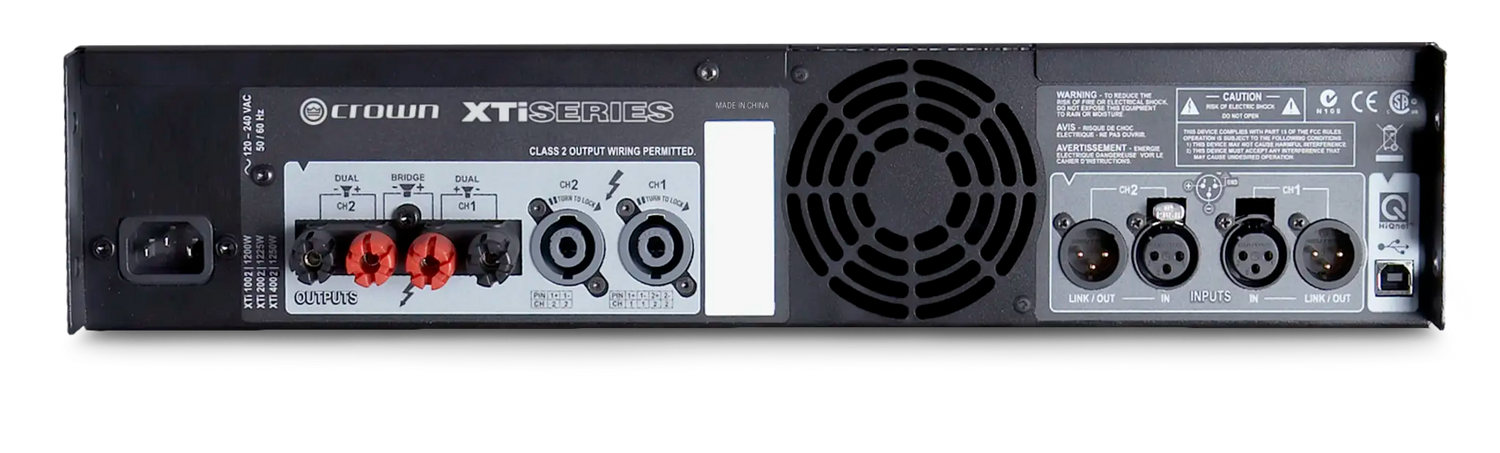

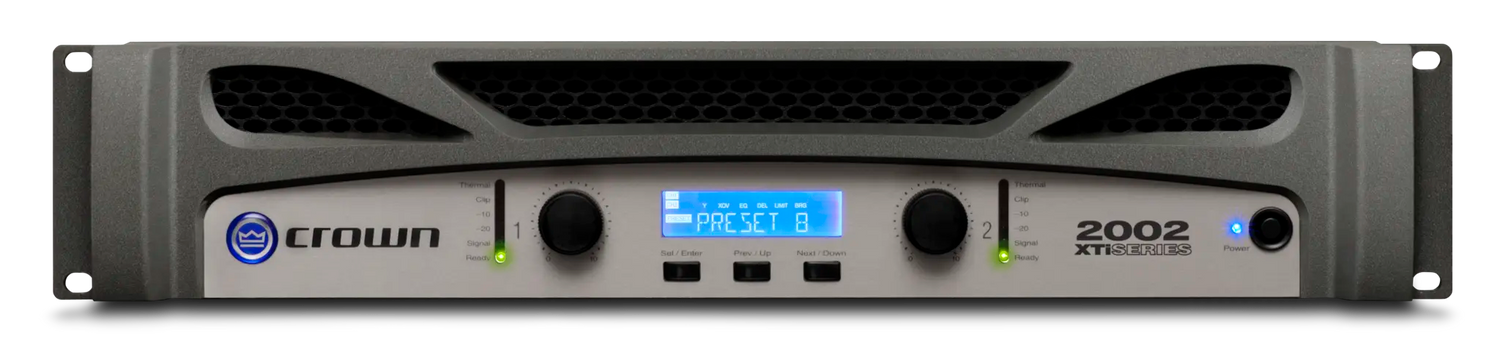

Crown XTi 2002 – 2-Channel 800W Power Amplifier with DSP
Product Overview
The Crown XTi 2002 is a 2-channel 800W professional power amplifier with comprehensive onboard DSP, providing advanced loudspeaker management for medium-to-large PA systems and installed sound applications. With 800 watts per channel and full XTi 2 Series DSP capabilities, the XTi 2002 is a versatile, powerful solution for professionals demanding both output and control.
Product Description
Delivering 800 watts per channel with the full DSP feature set of Crown's XTi 2 Series, the XTi 2002 is a capable amplifier-processor for medium-to-large sound systems. Its onboard DSP provides parametric equalization, Linkwitz-Riley and Butterworth crossover filters, compression/limiting, and channel delay — all configurable via the front panel or through Crown's Audio Architect software over USB. Crown's PeakX Plus multi-band limiting technology ensures connected loudspeakers are protected under all operating conditions. The XTi 2002 is equally suited to touring, installed sound, and houses of worship applications.
Key Features
- 800W Per Channel @ 4Ω: Substantial output for medium-to-large PA and installed sound systems.
- Full XTi 2 DSP: Parametric EQ, crossover (LR, BW), compression, limiting, and delay per channel.
- PeakX Plus Limiting: Multi-band loudspeaker protection system.
- USB + Audio Architect: Computer-based DSP configuration and Harman speaker preset library access.
- Front Panel DSP Access: Quick parameter adjustment without a computer.
- Balanced XLR Inputs.
- Speakon & Binding Post Outputs.
- 2U Rack Mount.
Typical Applications
- Medium-to-Large PA Systems: Live sound reinforcement with integrated processing for complete system control.
- Houses of Worship: Church PA requiring powerful output and precise EQ and limiting control.
- Monitor Systems: Stage monitor amplification with per-channel EQ and protection.
- Installed Sound: Mid-to-large installed sound venues requiring DSP-controlled amplification.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (per channel @ 4Ω) | 800W |
| Power Output (per channel @ 8Ω) | 500W |
| Bridged Mono @ 8Ω | 1600W |
| DSP | Yes – Parametric EQ, Crossover, Limiting, Delay |
| DSP Control | Front Panel + USB (Audio Architect) |
| Limiter | PeakX Plus |
| Input Connectors | XLR |
| Output Connectors | Speakon, Binding Post |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| THD+N | <0.5% |
| Signal-to-Noise Ratio | >100dB |
| Form Factor | 2U Rack Mount |
| Weight | 23 lbs |
| SKU | NXTI2002-U-US |
| UPC | 871015005317 |
Frequently Asked Questions
- How does the XTi 2002 differ from the XTi 1002?
- The XTi 2002 delivers 800W per channel versus 500W for the XTi 1002. Both share the same comprehensive DSP platform, PeakX Plus limiting, and USB/Audio Architect connectivity. The XTi 2002 is suitable for medium-to-large systems where the XTi 1002's output is insufficient.
- Can the XTi 2002 be used as a bi-amplifier?
- Yes. With its onboard crossover and independent per-channel DSP, the XTi 2002 is an excellent bi-amplifier, using one channel for HF and one for LF in a 2-way speaker system — all without requiring external crossover hardware.
- What loudspeaker presets are available?
- Via Crown Audio Architect software, the XTi 2002 provides access to Harman's extensive loudspeaker preset library for JBL Professional and other major brands, enabling fast system setup without manual DSP programming.
- Does the XTi 2002 include network control?
- The XTi 2002 connects via USB for computer-based control. For Ethernet/HiQnet network control, Crown's I-Tech HD series amplifiers are recommended for large networked system applications.
- What warranty applies?
- The Crown XTi 2002 carries Crown's 3-year limited warranty for professional audio amplifiers.
